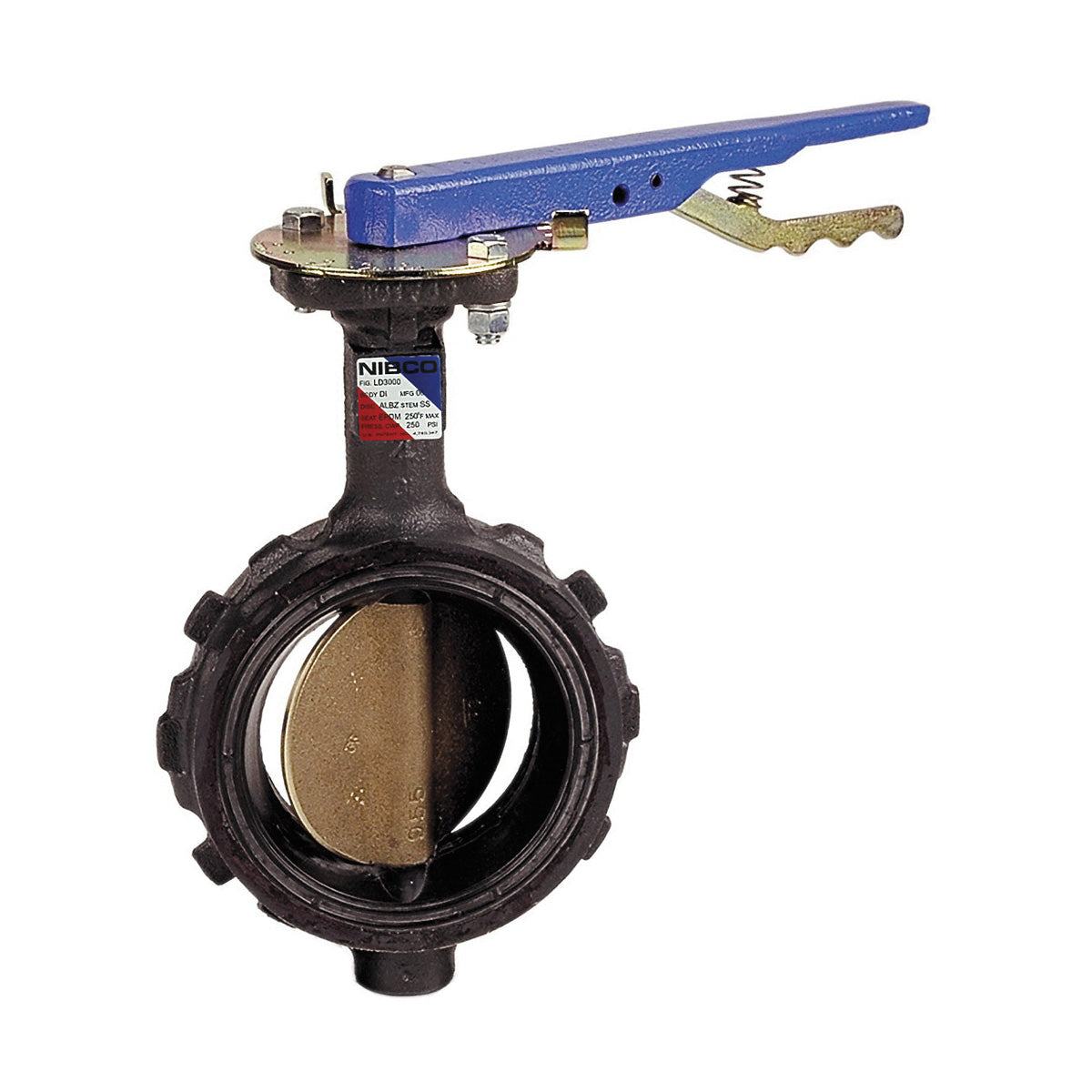

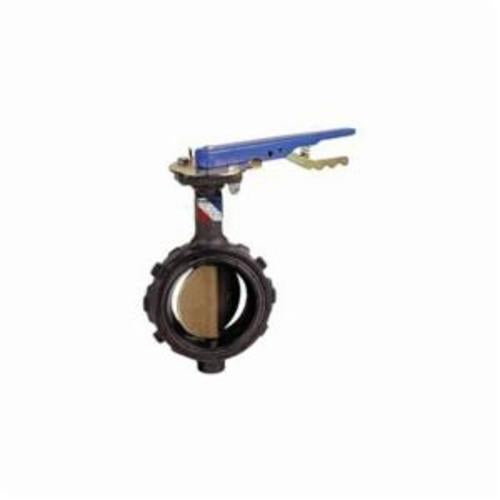

NIBCO NLH100L Wafer Style Butterfly Valve 8 in Nominal 125/150 lb

Product Description

The NIBCO wafer style butterfly valve, model NLH100L, offers bubble-tight shut-off at two hundred psi. It is suitable for commercial and light industrial applications, particularly HVAC and vacuum services, as well as hot and cold potable water. The valve features an easy quarter-turn operation. Its molded-in EPDM seat liner and aluminum bronze disc make it a reliable choice for water applications. The innovative design eliminates the need for pins or bolts, reducing potential leak paths within the body.

An extended neck allows for insulation up to two inches. NIBCO valves are known for their reliability and performance in industrial settings.

• Pressure rating: 200 psi
• Handles both hot and cold potable water
• Compact design for easy installation

Product Highlights

Reliable choice for commercial and industrial applications, designed for efficient and effective fluid control.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• UPC: 039923718013

Technical Specifications

• Valve Type: Wafer Style
• Media: Water
• Nominal Size: 8 inches
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Pressure Class: 125/150 lb
• Softgoods Material: EPDM
• Temperature Rating: 225 degrees F
• Stem & Pin Material: 416 Stainless Steel
• Actuator Type: Locking Handle
