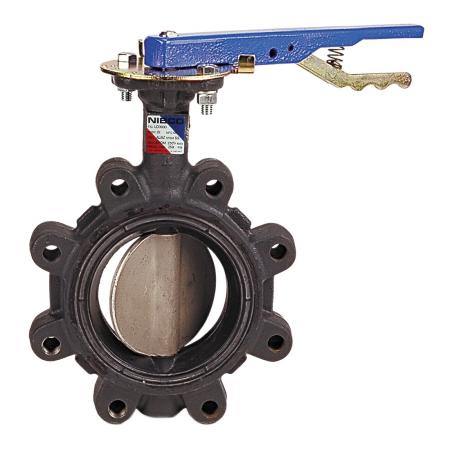

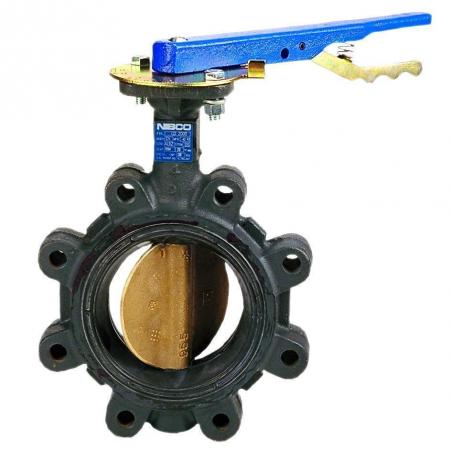

NIBCO NLG781E LD-2022 Series 2-1/2 in. Ductile Iron Lug EPDM Bare Stem Butterfly Valve

Product Description

The NIBCO LD-2022 Series Butterfly Valve, MPN NLG781E, is designed for use in various applications including commercial and industrial settings. This valve is a lug style, made from ductile iron, allowing for stable pressure handling. The valve has a nominal size of two and a half inches and operates effectively at a pressure rating of two hundred psi.

• Temperature rated for two hundred twenty-five degrees Fahrenheit continuous.
• Features an EPDM molded-in seat liner for durability.
• Stainless steel stem with copper bushings enhances performance.

Product Highlights

With its locking lever actuator and flexible operating mechanisms, this butterfly valve is suited for use in HVAC systems, potable water, and more.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NLG781E

Technical Specifications

• Actuator Type: Locking Lever
• Body Material: Ductile Iron
• Disc Material: CF8M Stainless Steel
• Temperature Rating: 225 degrees Fahrenheit Continuous / 250 degrees Fahrenheit Intermittent
• Nominal Size: 2-1/2 inches
• Pressure Class: 125/150 lb
• Stem & Pin Material: 17-4PH Stainless Steel
• Top to Inlet Center: 5.88 inches
