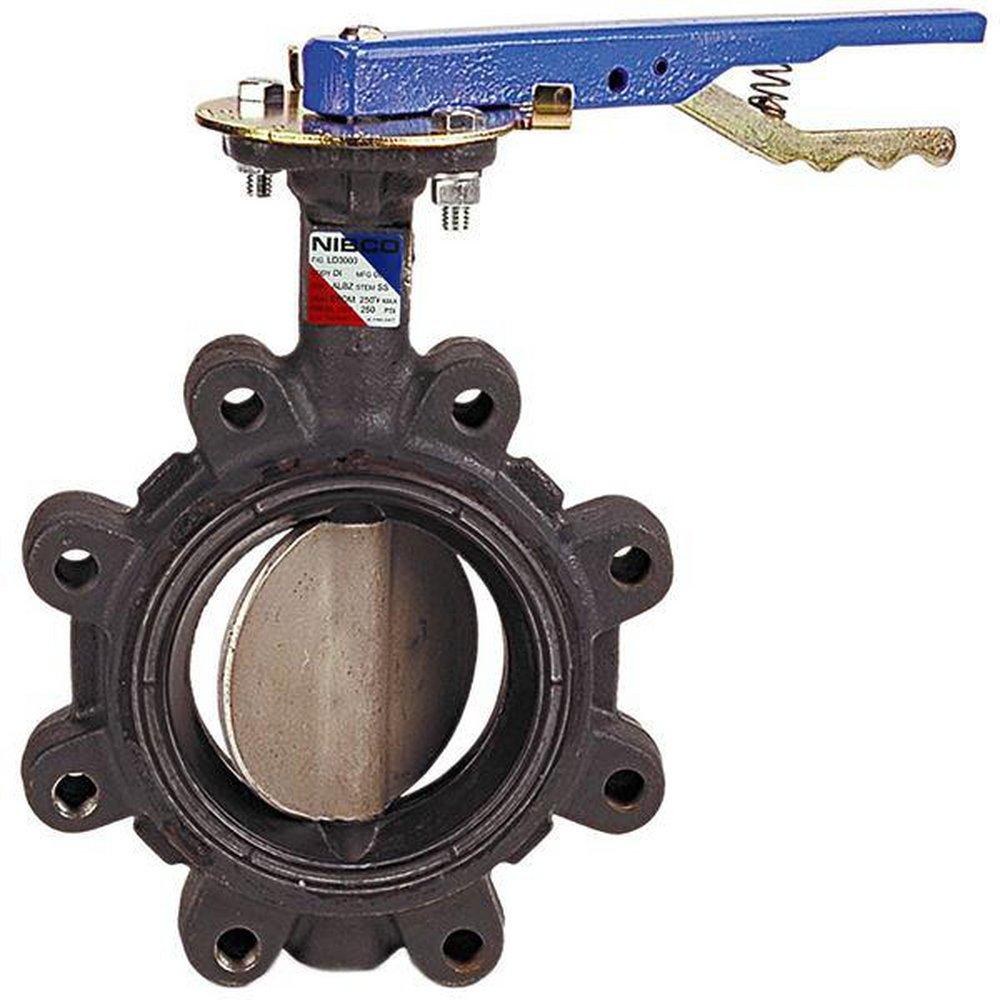

NIBCO NLG440L LD-3222 Series 8 in. Ductile Iron Fluoroelastomer Locking Lever Handle Butterfly Valve

Product Description

The NIBCO LD-3222 Series valve is designed for reliable service in various applications. This valve features a locking lever handle actuator for easy operation. It is constructed from ductile iron, ensuring durability and resistance to high-pressure environments.

• Maximum temperature rating of three hundred degrees Fahrenheit
• Valve pressure rating of two hundred fifty psi
• Stainless steel components enhance strength and wear resistance

Product Highlights

This valve is suitable for water media and offers a lug style design for secure installation options. The extended neck design allows for added versatility in configuration.

Product Information

Standard Information

• Actuator Type: Locking Handle
• Body Material: Ductile Iron

Technical Specifications

• Disc Material: Stainless Steel
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 8 in
• Pressure Class: 125/150 lb
• Series: LD-3222-3
• Softgoods Material: FKM/Fluoroelastomer
• Temperature Rating: 300 deg F
• Manufacturer: NIBCO INC
