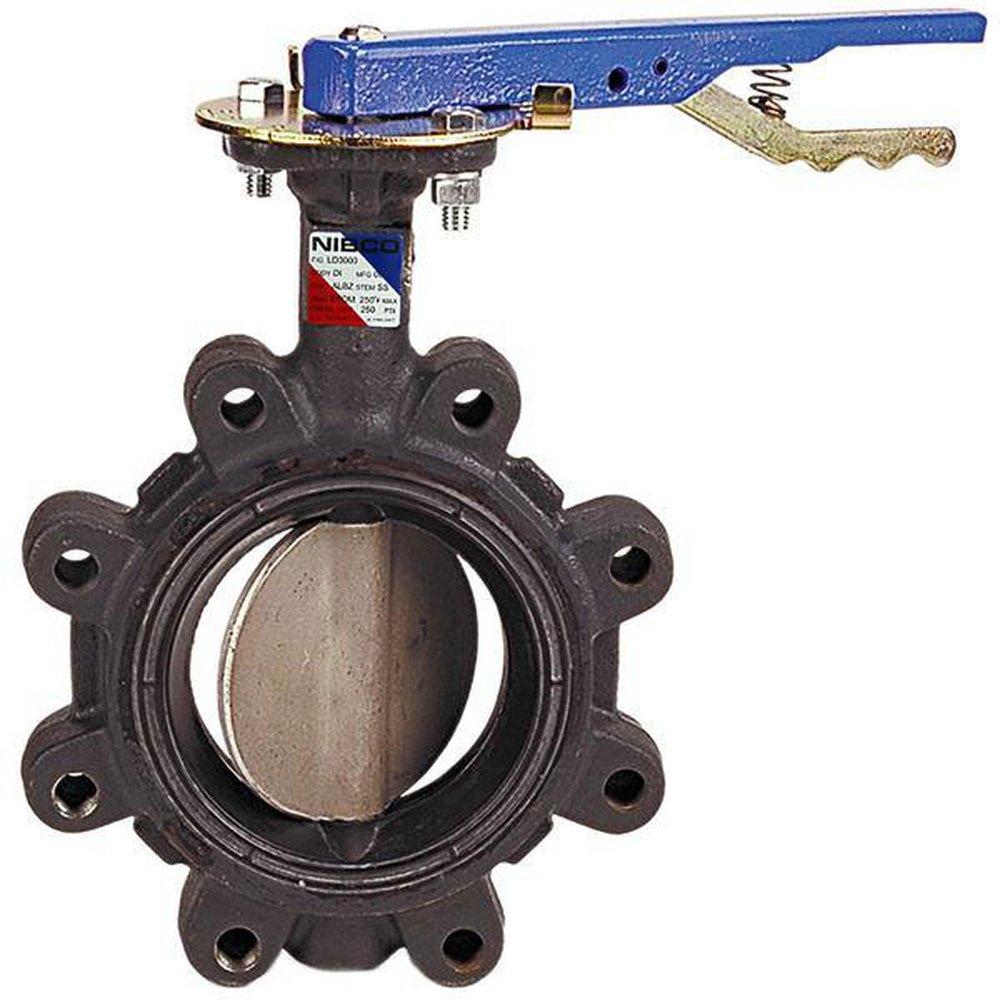

NIBCO NLG440F LD-3222 Series 3 in. Ductile Iron Fluoroelastomer Locking Lever Handle Butterfly Valve

Product Description

The NIBCO LD-3222 Series butterfly valve with MPN NLG440F is suitable for various applications requiring reliable flow control. This valve features a ductile iron body, providing resilience and strength. It is designed for isolation and throttling in commercial and light industrial processes.

• Locking lever mechanism for secure operation
• Designed for easy quarter-turn operation
• Extended neck allows for insulation installation up to two inches

Product Highlights

The NIBCO butterfly valve is engineered for a valve pressure rating of 250 psi, with a temperature rating of 300 degrees Fahrenheit. It includes a unique FKM fluoroelastomer molded-in seat liner that is suited for use with various chemicals.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer: NIBCO INC

Technical Specifications

• MPN: NLG440F
• Nominal Size: 3 in
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Stem Material: Stainless Steel
• Pressure Class: 125/150 lb
• Temperature Rating: 300 degrees Fahrenheit
• Actuator Type: Locking Handle
• Connection Type: Lug
• Applications: Isolation and throttling in commercial and light industrial processes
