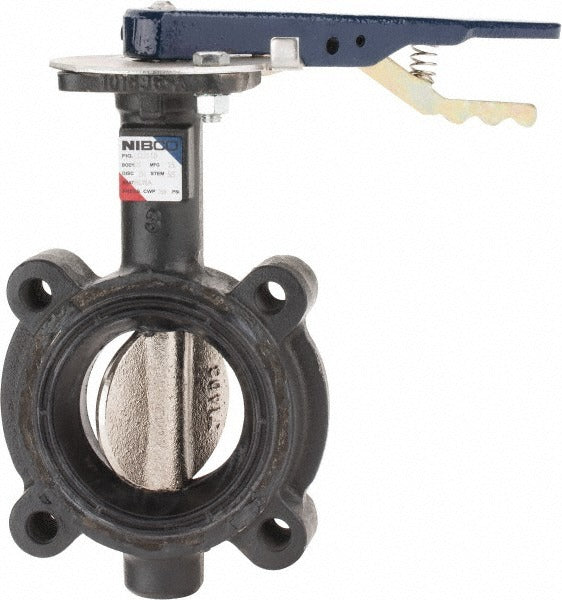

Nibco NLG250F Lug Butterfly Valve 3 Inch 250 Psi

Product Description

The NIBCO NLG250F is a manual lug-style butterfly valve designed for flow control in commercial and industrial piping systems. Built with a ductile iron body and ductile iron disc, this valve handles 3-inch pipe and operates via a lever handle for quick, positive shutoff. The stainless steel stem (Grade 416) resists corrosion in demanding service environments. Rated for a maximum working pressure of 250 psi and a maximum working temperature of 180 degrees F, the NLG250F is suited for water, HVAC hydronic systems, and general fluid service applications. It carries a lead-free designation, supporting compliance where lead-free materials are required.

The NLG250F is used in commercial HVAC hydronic piping, industrial process lines, and mechanical room installations where a compact, lever-actuated shutoff is needed at a 3-inch pipe size. The lug-style body allows end-of-line service and valve removal without disturbing the downstream piping. Licensed pipefitters and mechanical contractors typically specify lug butterfly valves in situations where isolation without full system shutdown is a priority.

Key Features

• Ductile iron body and disc for durability in commercial service
• Grade 416 stainless steel stem for corrosion resistance
• Buna-N seat material compatible with water and many fluid media
• Lever handle provides fast manual actuation and clear open/closed indication
• Rated to 250 psi maximum working pressure
• Lead-free construction meets applicable plumbing code requirements
• Meets MSS SP-67 and MSS SP-25 marking standards; listed under U.S. Coast Guard Category A

Compatibility

Designed as an OEM-style lug butterfly valve for 3-inch pipe flanged connections conforming to standard bolt patterns; compatible with systems requiring MSS SP-67 compliant butterfly valves.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor in accordance with applicable codes. Isolate and depressurize the system fully before removing or installing this valve. Verify flange bolt pattern and gasket seating on both faces before torquing fasteners. Do not exceed the rated working pressure of 250 psi or the maximum temperature of 180 degrees F in service.
