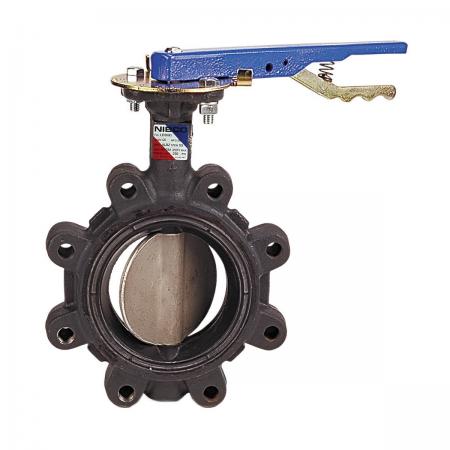

NIBCO NLG243K LD-3022 Series 6 Inch Ductile Iron Lever Handle Butterfly Valve

Product Description

The NIBCO NLG243K LD-3022 Series 6 Inch Ductile Iron Butterfly Valve is engineered for precision and reliability. Suitable for commercial and light industrial applications, this valve ensures optimal performance in water media environments.

• Robust ductile iron construction with a lug style body ensures long-lasting durability.
• Equipped with a stainless steel stem and bushings for enhanced performance under high temperatures (up to 225 degrees Fahrenheit continuous).
• Features a geometric drive and locking lever handle for secure and adjustable operation.

Product Highlights

This butterfly valve is not recommended for steam service but excels in water systems. Its EPDM seat liner provides excellent sealing properties, and the valve can operate up to 250 psi.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: LD-3022-3

Technical Specifications

• Nominal Size: 6 in
• Pressure Class: 125/150 lb
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Stem Material: Stainless Steel
• Softgoods Material: EPDM
• Temperature Rating: 225 degrees Fahrenheit
• Actuator Type: Locking Handle
