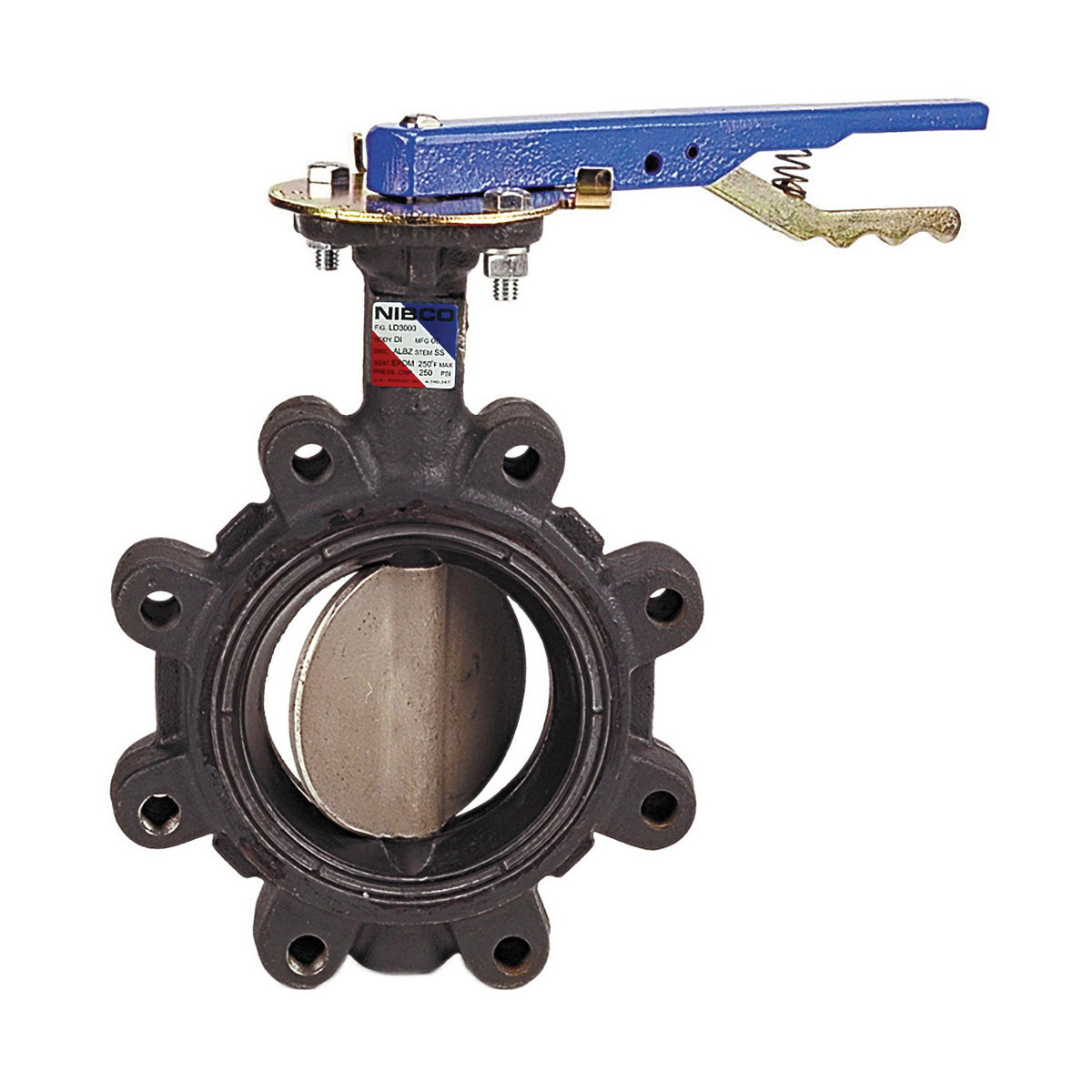

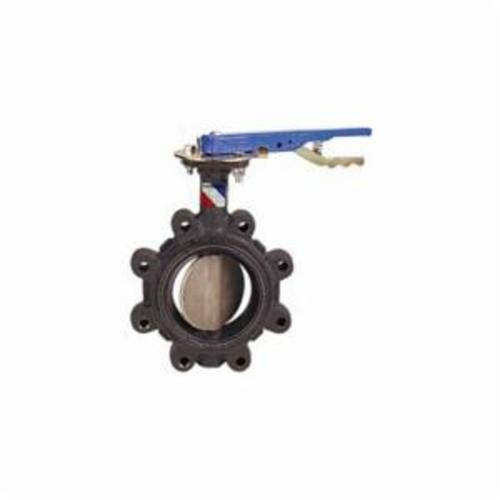

NIBCO NLG243H Lug Style Butterfly Valve 4 in Nominal 125/150 lb

Product Description

The NIBCO lug style butterfly valve, model NLG243H, is designed for bi-directional dead-end service without a downstream flange. This valve ensures tight shut-off at 250 psi, making it suitable for isolation and throttling in various applications such as commercial and light industrial sectors.

• Operates easily with a quarter-turn mechanism.
• Durable construction with ductile iron body and stainless steel disc.
• Features an EPDM seat liner for compatibility in certain chemical applications.

Product Highlights

The NIBCO lug style butterfly valve is engineered for long-term use in multiple settings including mechanical and industrial applications.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• MPN: NLG243H

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Softgoods Material: EPDM
• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Temperature Rating: 225 deg F
• Series: LD-3022-3
