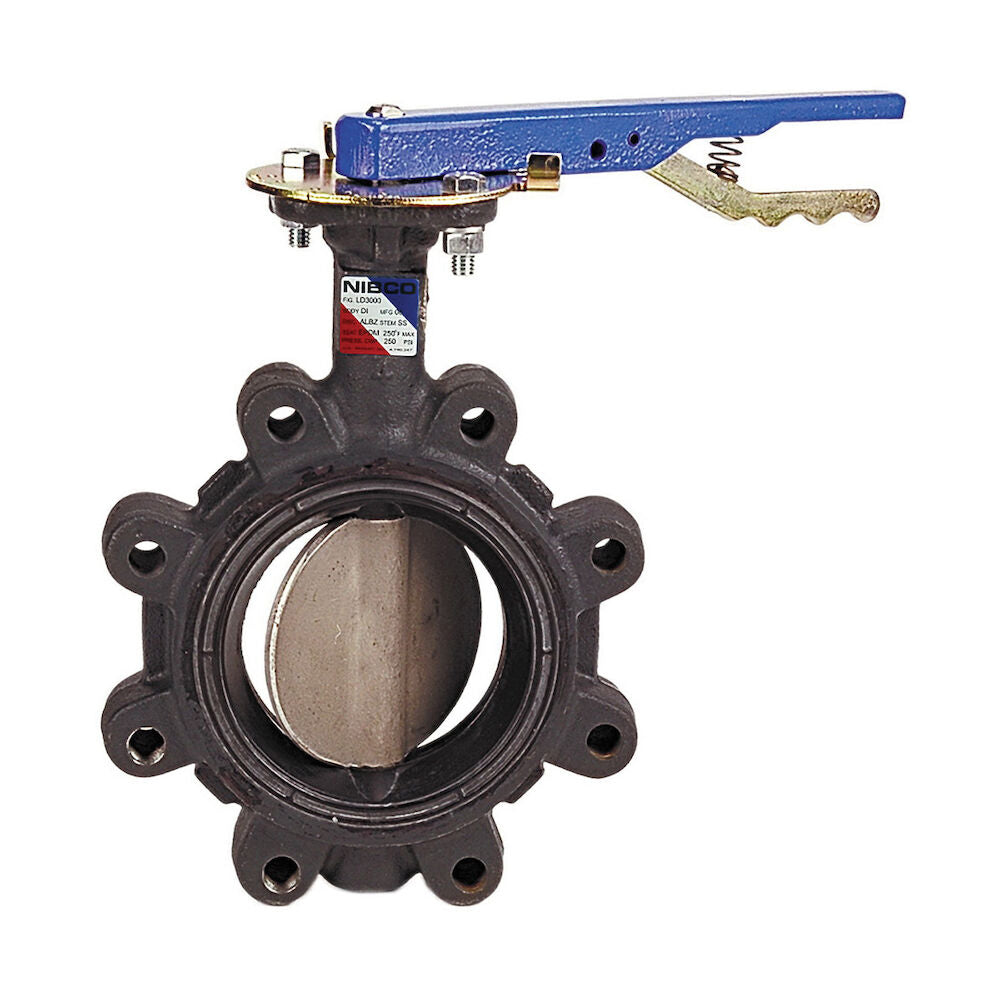

NIBCO NLG243E LD-3022 Series 2-1/2 in Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO NLG243E is a butterfly valve designed for various applications. This two and a half-inch ductile iron valve features an EPDM molded-in seat liner. It is suitable for water media and supports a pressure rating of two hundred fifty psi.

• Ductile iron body with stainless steel components
• Locking handle actuator for secure operation
• Extended neck for easier installation

Product Highlights

This valve is ideal for commercial and light industrial processes. It is not recommended for steam service but can handle temperatures up to two hundred twenty-five degrees Fahrenheit continuously.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Lug Style

Technical Specifications

• Media: Water
• Nominal Size: 2-1/2 in
• Pressure Class: 125/150 lb
• Temperature Rating: 225 deg F
• Softgoods Material: EPDM
• Stem & Pin Material: Stainless Steel (Stem)
• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
