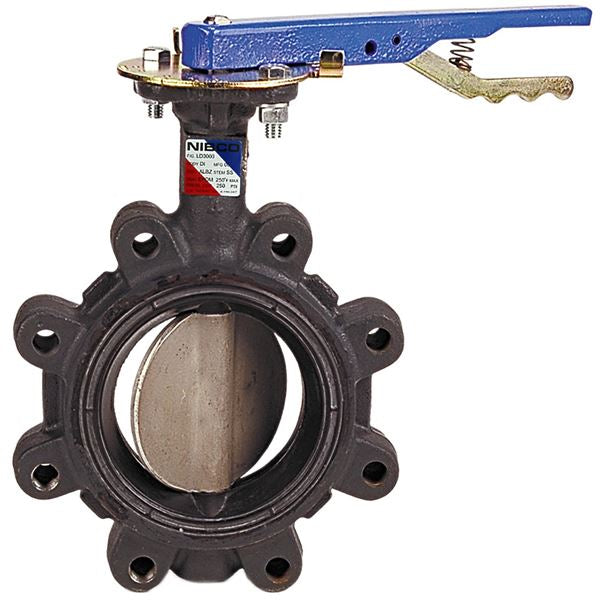

NIBCO NLG243D Lug Style Butterfly Valve 2 in Nominal 125/150 lb Ductile Iron Body EPDM

Product Description

The NIBCO lug style butterfly valve, part number NLG243D, is designed to deliver reliable performance for bi-directional flow control. It operates effectively in commercial and light industrial applications and features a ductile iron body that withstands high pressure conditions.

• Maximum pressure rating of 250 psi.
• Quarter-turn operation for easy use.
• Extended neck for insulation up to two inches.

Product Highlights

This valve is suitable for water applications and includes a geometric drive design that eliminates the need for additional pins or bolts. It is equipped with a molded EPDM seat liner and stainless steel disc, ideal for chemical compatibility.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: Lug Style

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Nominal Size: 2 in
• Pressure Class: 125/150 lb
• Temperature Rating: 225 deg F
• Softgoods Material: EPDM
• Stem & Pin Material: Stainless Steel (Stem)
