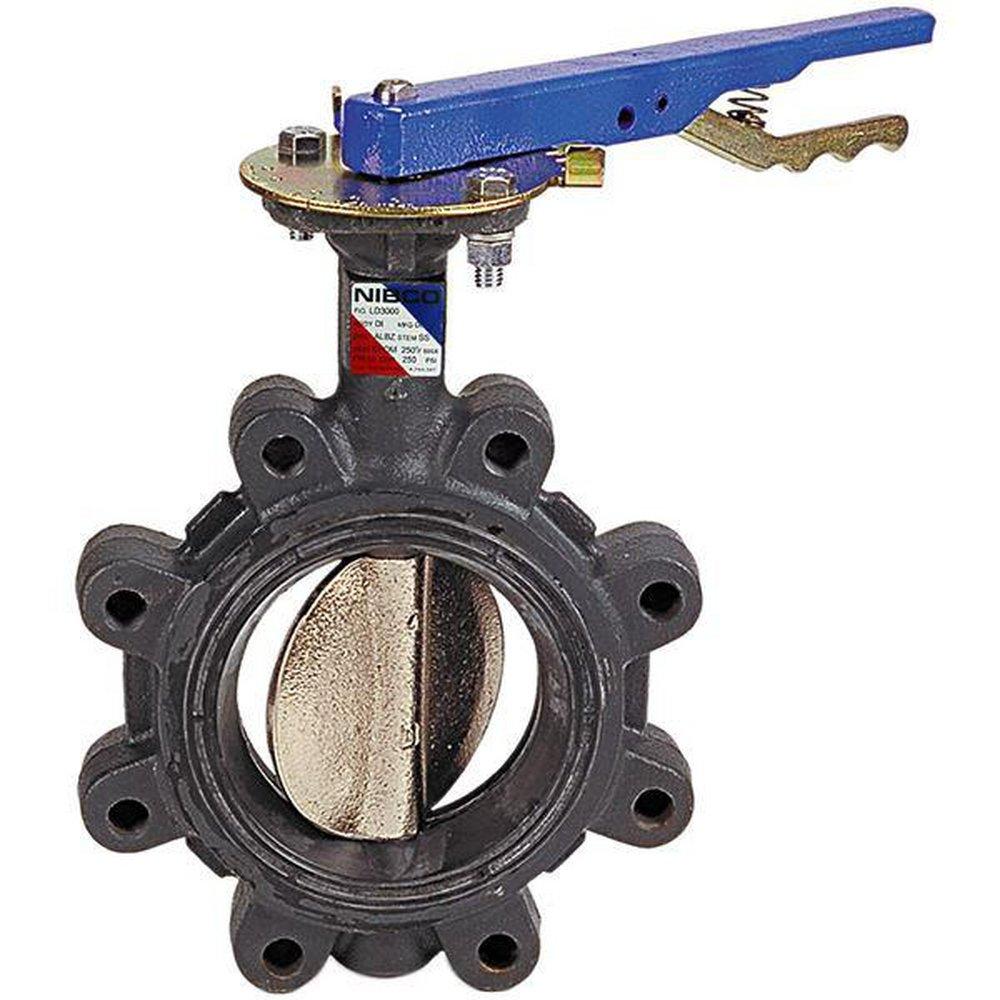

NIBCO NLG200L LD-3010 Series 8 in. Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO butterfly valve, model NLG200L, is designed for reliable flow control in various systems. This valve features a lug style and is made of durable ductile iron. It has an eight-inch nominal size, making it suitable for numerous commercial and light industrial applications. The valve is rated for a maximum pressure of two hundred fifty psi and comes with a locking handle actuator.

• Constructed from ductile iron for strength
• Pressure rating of 250 psi
• Designed for water media

Product Highlights

This valve is ideal for HVAC and vacuum services, ensuring smooth operation in various settings. Its extended neck design allows for easy installation, while the EPDM molded-in seat provides a secure seal.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NLG200L

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 8 in
• Pressure Class: 125/150 lb
• Series: LD-3010-3
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
• Type: Lug Style
• Manufacturer: NIBCO INC
