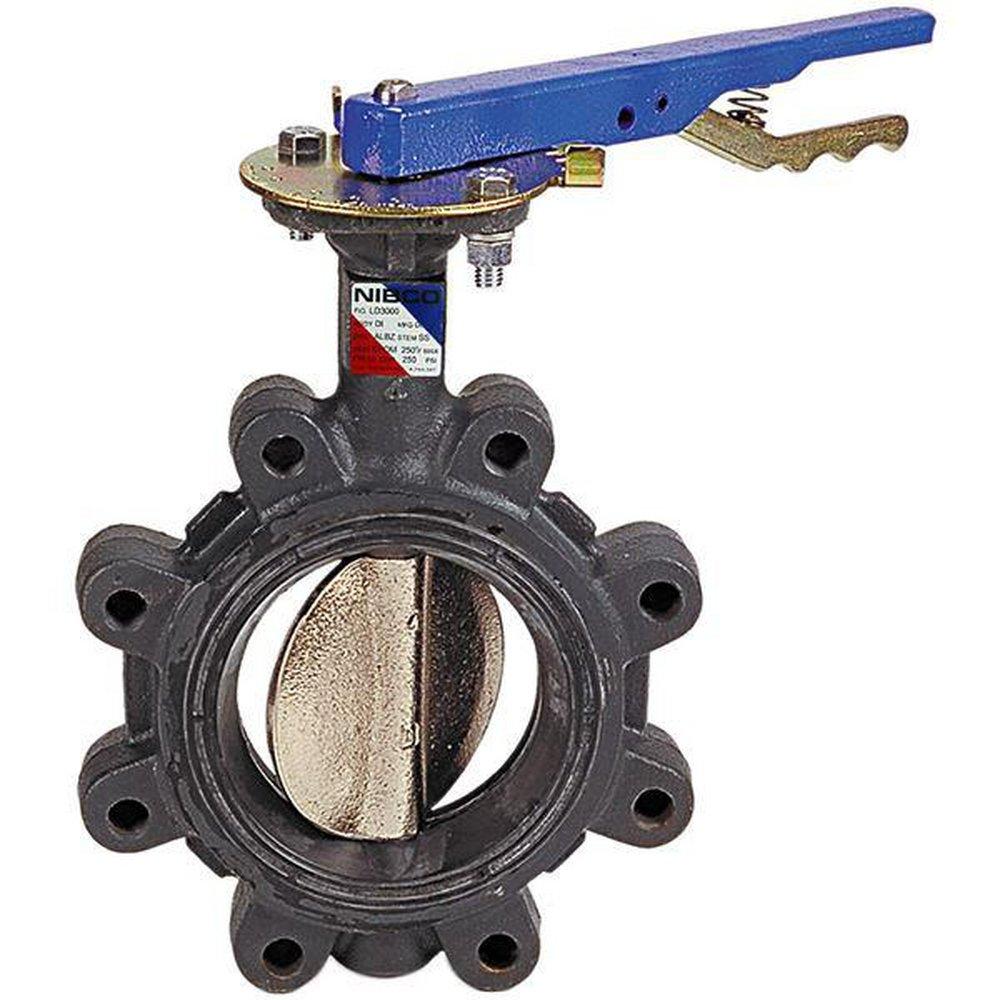

NIBCO NLG200H LD-3010 Series 4 in Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO Butterfly Valve, MPN NLG200H, offers reliable operation with a quarter-turn to open or close. It is designed for water applications with a locking handle actuator. The valve features a ductile iron body and disc, ensuring durability. The molded-in EPDM seat liner provides a secure seal, reducing the risk of leaks.

• Valve pressure rating of two hundred fifty psi
• Ductile iron construction
• Extended neck design allows for insulation up to two inches

Product Highlights

This valve is suitable for commercial and light industrial applications, including HVAC systems. The geometric drive design eliminates the need for pins or bolts that can create leak paths.

Product Information

Standard Information

• Manufacturer: NIBCO
• Type: Lug Style

Technical Specifications

• Nominal Size: 4 in
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Actuator Type: Locking Handle
• Media: Water
• Pressure Class: 125/150 lb
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
