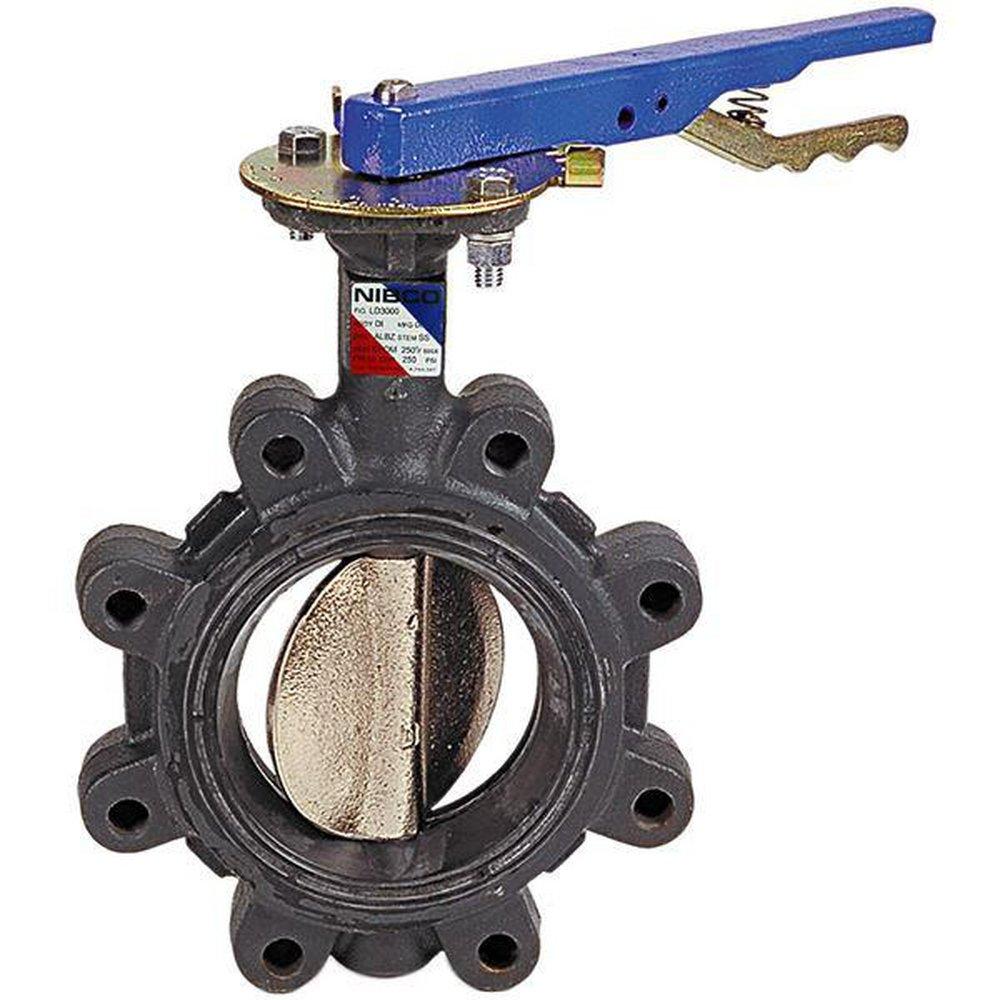

NIBCO NLG200F LD-3010 Series 3 in Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO Butterfly Valve, model NLG200F, is designed for reliable and efficient operation. This butterfly valve is suitable for water applications and features a durable ductile iron body. It supports a locking handle actuator and accommodates a nominal size of three inches.

• Pressure rating of two hundred fifty psi.
• Extended neck design allows for insulation up to two inches.
• Geometric drive design eliminates the need for pins or bolts, reducing leak paths.

Product Highlights

The NIBCO NLG200F is effective in commercial and light industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NLG200F

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 3 in
• Pressure Class: 125/150 lb
• Series: LD-3010-3
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
• Type: Lug Style
• Warranty: 5 years limited
