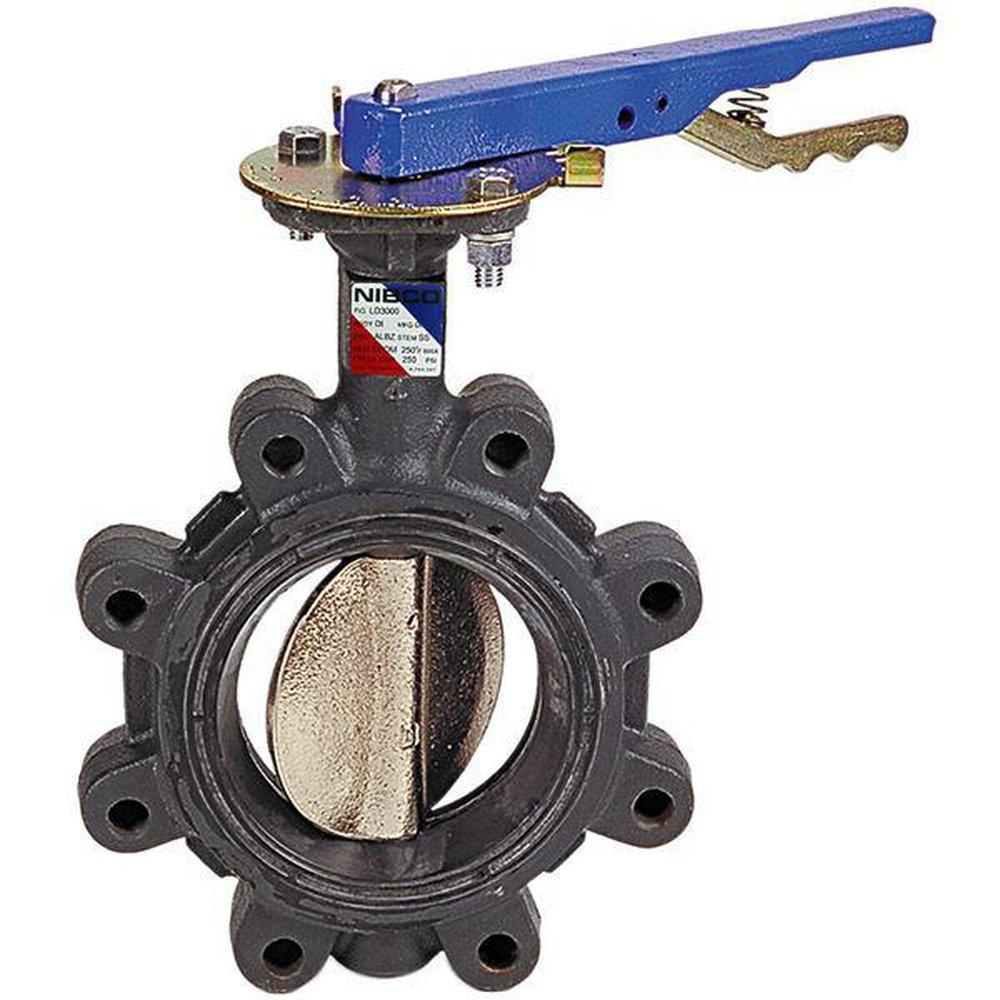

NIBCO NLG150K LD-2100 Series 6 in Ductile Iron Buna-N Locking Lever Handle Butterfly Valve

Product Description

The NIBCO NLG150K is a lug-style butterfly valve made from ductile iron. With a nominal size of six inches, it operates at a maximum pressure rating of 200 psi. This valve is suitable for air, oil, and water applications, making it a versatile choice for trade professionals. The Buna-N molded-in seat liner and aluminum bronze disc ensure durability and resistance to abrasion.

• Locking handle actuator for secure operation.
• Designed for commercial and light industrial process applications.
• Not recommended for steam service.

Product Highlights

This valve features a quarter-turn operation for smooth opening and closing, making it easy to handle. The internal geometric drive allows for a leak-proof system that does not require additional fasteners.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NLG150K

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Softgoods Material: Buna-N
• Stem & Pin Material: 416 Stainless Steel
• Temperature Rating: 180 deg F
• Pressure Class: 125/150 lb
• Nominal Size: 6 in
• Series: LD-2100-3
• Media: Air/Oil/Water
