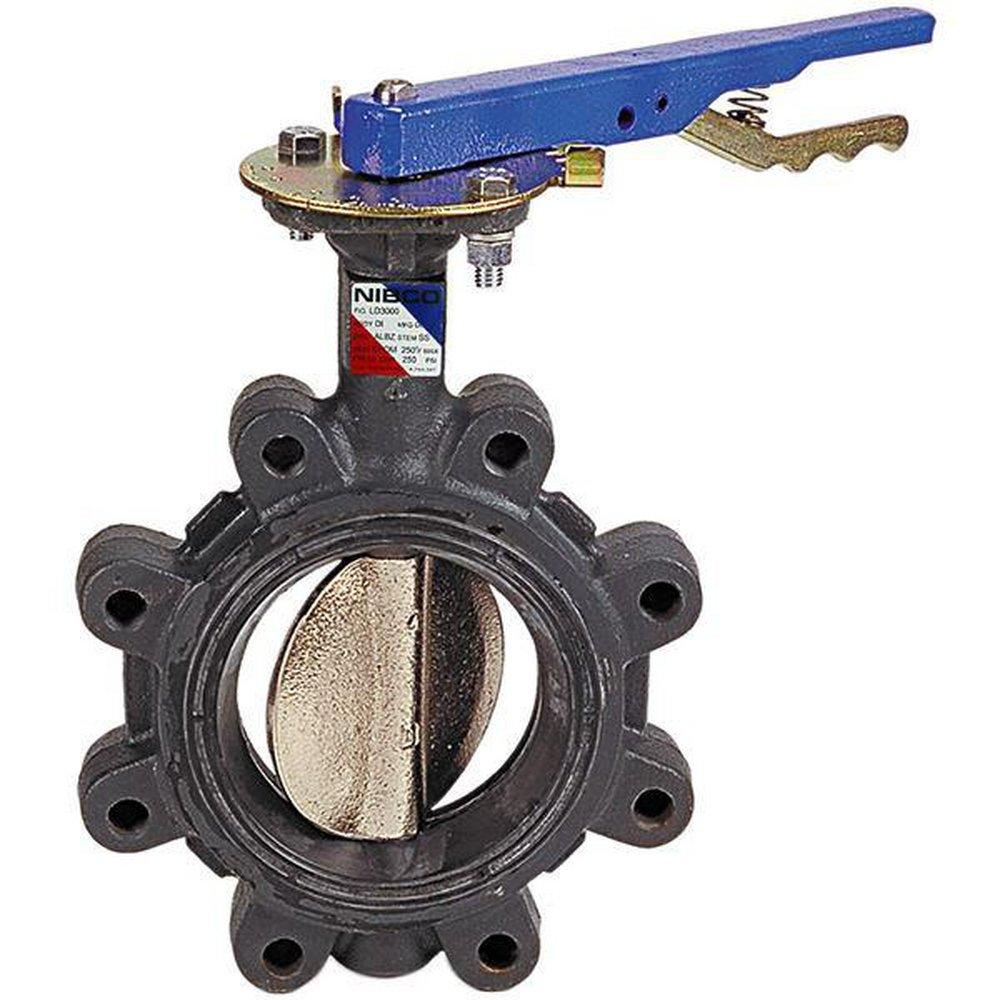

NIBCO NLG150F LD-2100 Series Butterfly Valve 3 in Lug

Product Description

The NIBCO LD-2100 Series Butterfly Valve, model number NLG150F, is a three-inch ductile iron valve. This valve features a locking lever handle and is designed for use in a variety of applications including commercial and light industrial processes. It is suitable for air, oil, and water media.

• Bi-directional dead-end service without a downstream flange
• Operating pressure of up to 200 psi
• Temperature rating of one hundred eighty degrees Fahrenheit

Product Highlights

This valve offers a unique molded-in Buna-N seat liner, ensuring effective sealing and abrasion resistance. Its design includes a stainless steel stem with copper bushings for robust performance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NLG150F

Technical Specifications

• Nominal Size: 3 in
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Pressure Rating: 200 psi
• Temperature Rating: 180 deg F
• Actuator Type: Locking Handle
• Media: Air/Oil/Water
• Series: LD-2100
