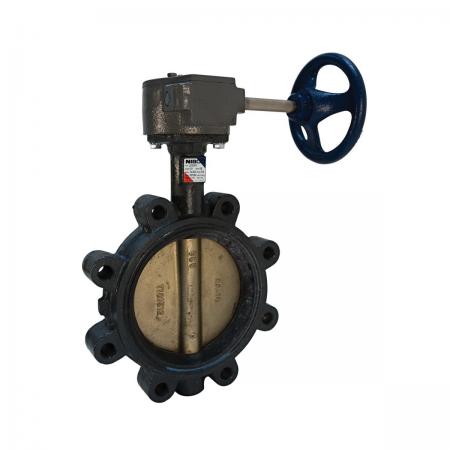

Nibco NLG110M LD-2000 Series 10 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve

Product Description

The Nibco NLG110M LD-2000 Series Butterfly Valve is a 10-inch lug style valve featuring a ductile iron body and EPDM seat liner. This valve provides reliable service for commercial and light industrial applications including HVAC systems and vacuum services, in addition to hot and cold potable water.

• Operates efficiently with manual gear
• Stainless steel stem with copper bushings
• EPDM molded-in seat liner

Product Highlights

This 10-inch butterfly valve from Nibco features a ductile iron body, an aluminum bronze disc, and an extended neck for insulation up to 2 inches. The EPDM molded-in seat liner provides excellent sealing and durability. This valve is suitable for 225 degrees Fahrenheit continuous service and up to 250 degrees Fahrenheit intermittent service, perfect for HVAC, water, and vacuum applications.

Product Information

Standard Information

• Brand: Nibco
• MPN: NLG110M
• Series: LD-2000-5
• Type: Lug Style Butterfly Valve
• Media: Water
• Size: 10 inches

Technical Specifications

• Actuator Type: Manual Gear
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Stem & Pin Material: 416 Stainless Steel (Stem)
• Seat Material: EPDM
• Pressure Rating: 200 psi
• Temperature Rating: 225 degrees Fahrenheit continuous, 250 degrees Fahrenheit intermittent
• Connection Type: Lug
• Certifications: MSS SP-67, MSS SP-25, API 609, US Coast Guard Category A, Vermont Act 193, QAIus P347, ANSI/NSF 61 and 372
• Installation: Between ASME Class 125/150 flanges
• Warranty: 5 years limited
