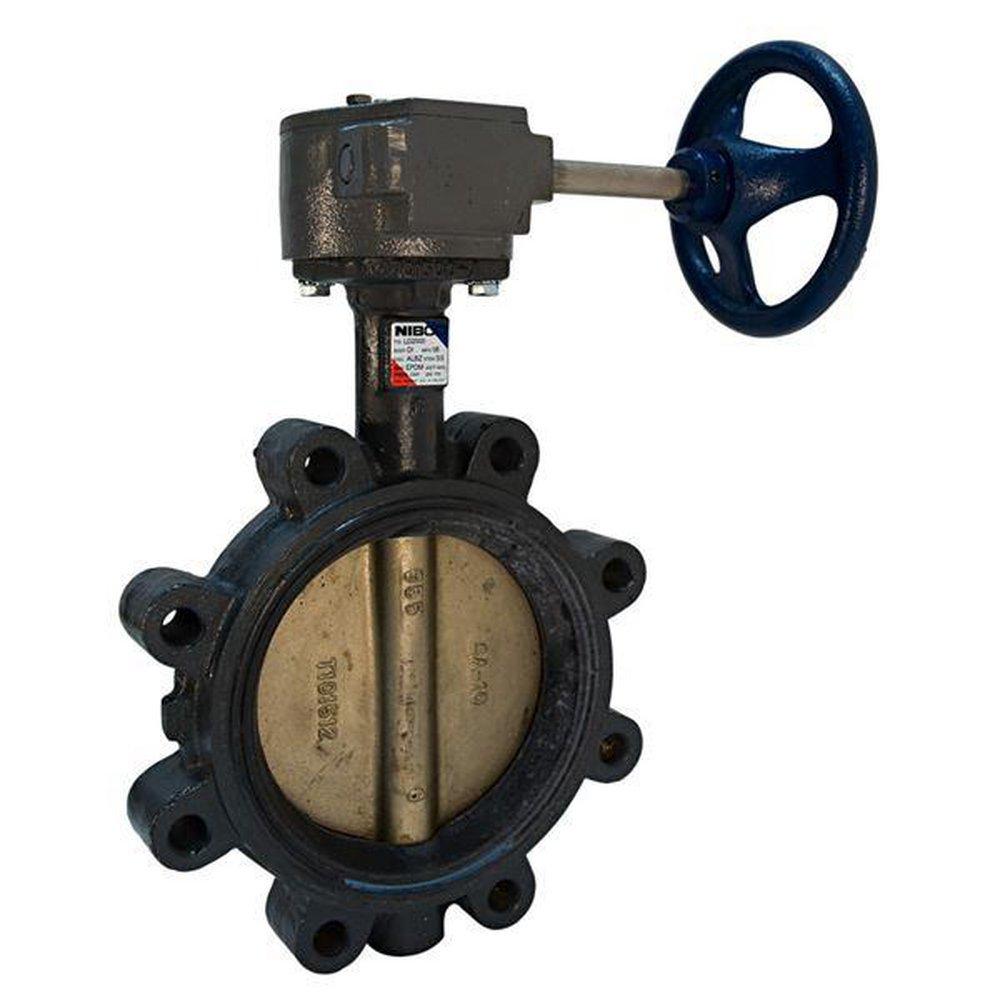

Nibco NLG110L LD-2000 Series 8 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve

Product Description

The Nibco NLG110L LD-2000 Series 8 inch Ductile Iron EPDM Gear Operator Handle Butterfly Valve is designed for various trade applications. The valve offers reliable performance for commercial and light industrial systems, particularly HVAC and potable water services.

• 225 degrees Fahrenheit continuous and 250 degrees Fahrenheit intermittent service
• Stainless steel stem with copper bushings
• Lug style with 200 psi pressure rating

Product Highlights

This butterfly valve provides bi-directional dead-end service without a downstream flange. It is equipped with a manual gear operator and an EPDM molded-in seat liner. Suitable for HVAC and potable water applications, it ensures bubble-tight shut-off at 200 psi.

Product Information

Standard Information

• Type: Lug Style
• Media: Water

Technical Specifications

• Actuator Type: Manual Gear
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Domestic/Import: Domestic
• Nominal Size: 8 inches
• Pressure Class: 125/150 lb
• Series: LD-2000-5
• Softgoods Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 degrees Fahrenheit
• Manufacturer: Nibco INC
• Valve Pressure Rating: 200 psi
