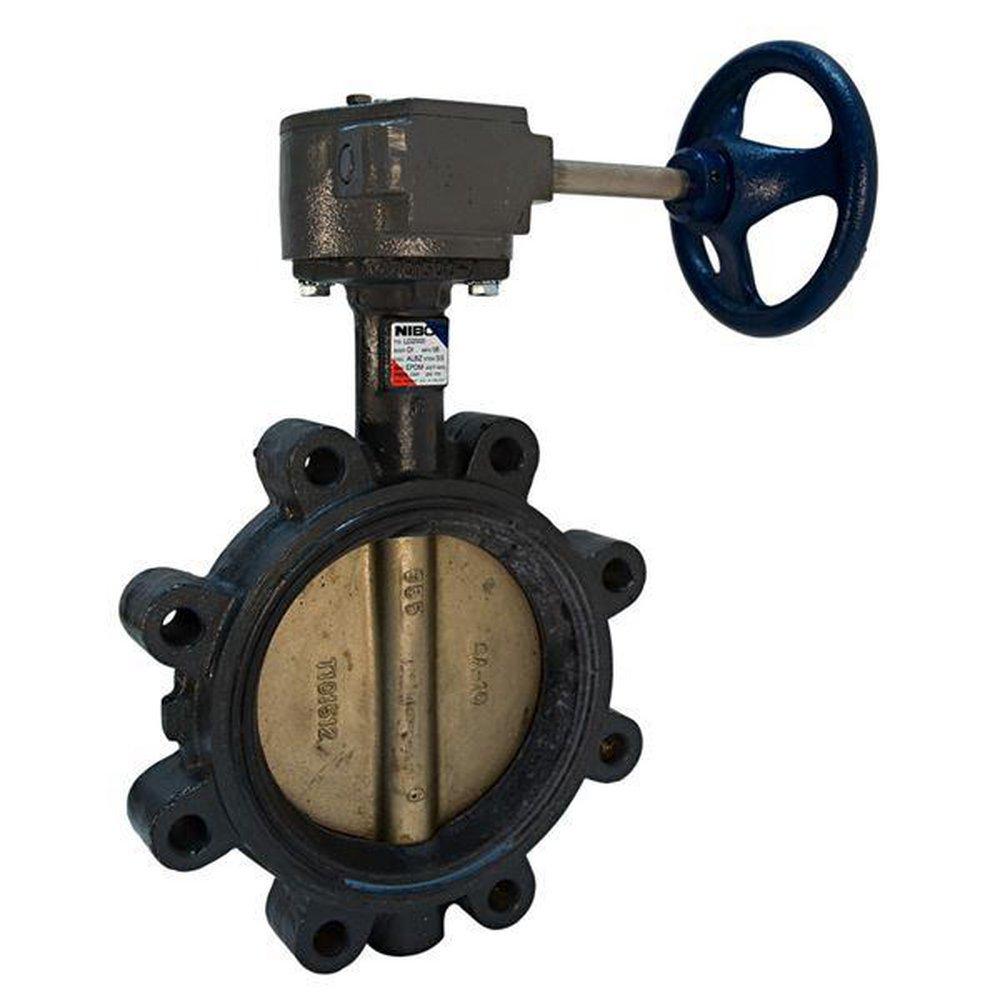

NIBCO NLG110K LD-2000 Series 6 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve

Product Description

The NIBCO LD-2000 Series butterfly valve, part number NLG110K, is a robust solution for regulating flow with a six-inch ductile iron body designed for water. This valve features a gear operator handle for manual operations and can withstand high pressures, rated up to two hundred psi. It is suitable for use in commercial and light industrial applications, including HVAC systems and potable water services.

• Durable ductile iron construction
• Continuous temperature rating of two hundred twenty-five degrees Fahrenheit
• Easy quarter-turn operation with a manual gear actuator

Product Highlights

This butterfly valve offers bi-directional dead-end service without requiring a downstream flange. The unique design prevents leakage and turbulence, making it efficient for various water applications. The molded-in EPDM seat liner ensures a secure seal, while the aluminum bronze disc enhances durability.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NLG110K
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 6 in
• Operating Mechanism: Manual Gear
• Pressure Rating: 200 psi
• Temperature Rating: 225 deg F Continuous, 250 deg F Intermittent Service
• Disc Material: Aluminum Bronze
• Stem Material: 416 Stainless Steel
• Seal Material: EPDM
• Connection Type: Lug
• Applications: HVAC and vacuum services, hot and cold potable water
