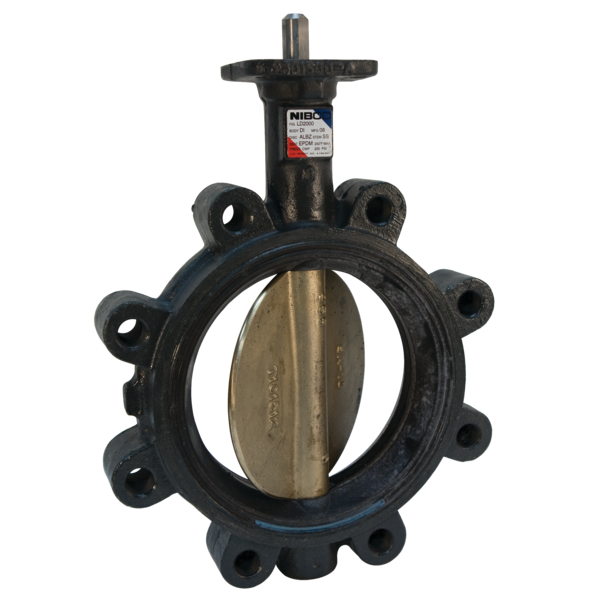

NIBCO NLG110H LD-2000 Series 4 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve

Product Description

NIBCO NLG110H is a lug style butterfly valve designed for various applications. This four-inch valve features a ductile iron body and an EPDM seat liner. It is suitable for use in commercial and light industrial processes, including HVAC and potable water services.

• 200 psi pressure rating
• Geometric drive design for reliable operation
• Extended neck for insulation

Product Highlights

This butterfly valve provides bubble-tight shut-off and bi-directional dead-end service without a downstream flange. The valve operates smoothly with a quarter-turn mechanism.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Actuator Type: Manual Gear Operator
• Temperature Rating: 225 deg F Continuous/250 deg F Intermittent
• Disc Material: Aluminum Bronze
• Stem Material: 416 Stainless Steel
• Media: Water
• Series: LD-2000-5
