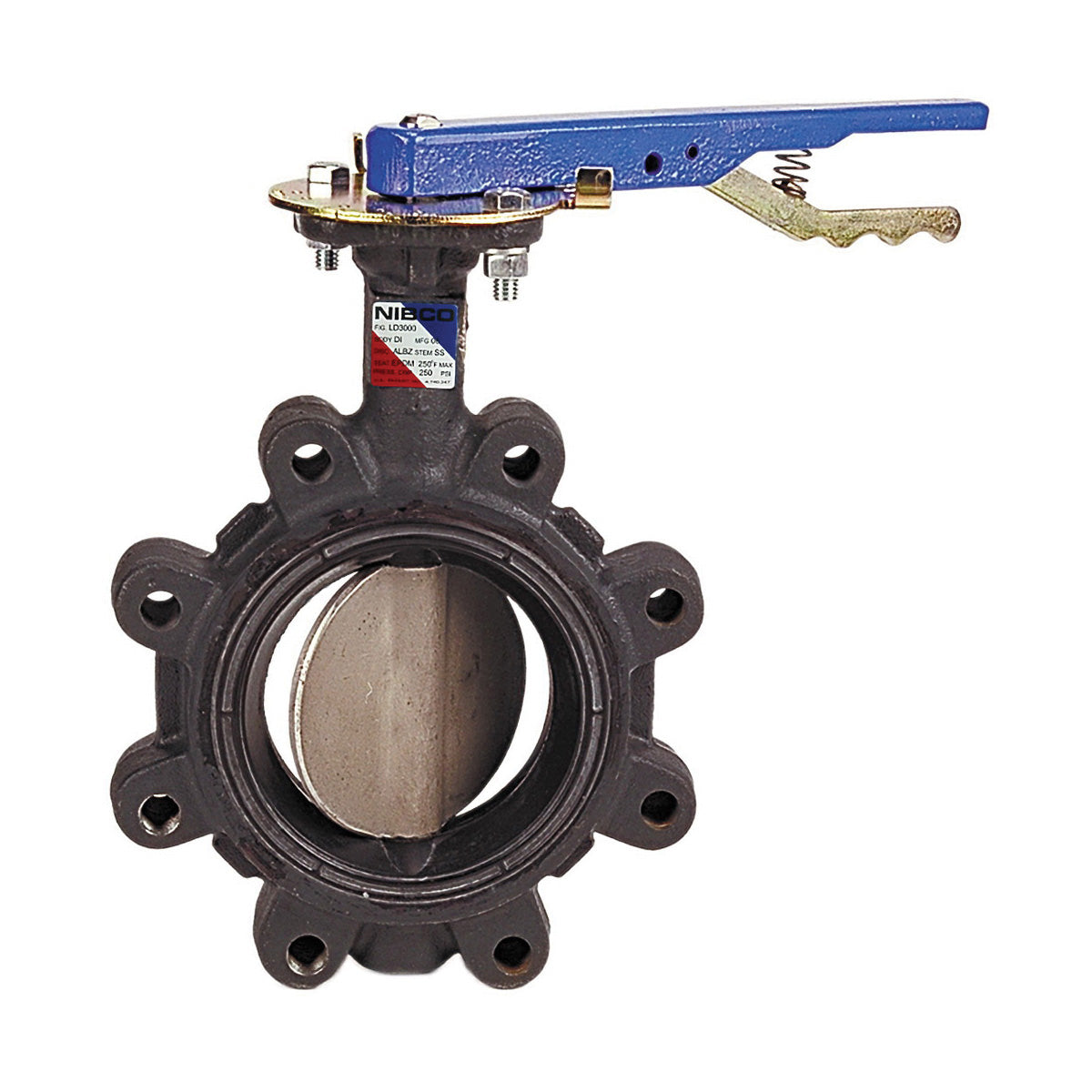

Nibco NLG100K LD-2000 Series 6 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO NLG100K lug type butterfly valve provides bi-directional dead-end service without a downstream flange and bubble-tight shut-off at 200 psi. Ideal for commercial and some light industrial process applications, including HVAC, vacuum services, and potable water. Features a stainless steel stem with copper bushings and an EPDM molded-in seat liner. Not recommended for steam service.

• 225°F continuous and 250°F intermittent service
• Lug style
• Stainless steel stem with copper bushings

Product Highlights

The NIBCO butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. Internal stem/disc geometric drive design eliminates leak paths.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLG100K

Technical Specifications

• Valve pressure rating: 200 psi
• Valve stem material: Stainless steel
• Seat liner: EPDM molded-in
• Class: 200#
• Connection Size: 6 in
• Connection Type: Lug
• Disc Material: Aluminum Bronze
• Item Name: Butterfly Valve
• Material: Ductile Iron
• Model: LD-2000
• Operator Type: Lever-Lock Handle
• Seal Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 deg F Continuous, 250 deg F Intermittent Service
• Applications: For commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water
• Standards/Certifications: MSS SP-67, MSS SP-25, API 609, US coast guard category A, vermont act 193, QAIus P347 listed, ANSI/NSF 61 and 372 certified
• Nominal Size: 6 IN
• Body Material: Ductile Iron
• Material Standard (Body): ASTM A536
• Stem Material Standard: ASTM A582
• Disc Material Standard: ASTM B148
• Disc Material Specification: Alloy 955
• Industry Standards: MSS-SP-67 Compliant, NSF/ANSI 61-8/372 Certified, US Coast Guard Category A
• Lead Free: Yes
• Bolt Circle Diameter: 9-1/2 IN
• Thread: 3/4-10 UNC
• Number Of Holes: 8
• UPC Code: 039923717801
• Type: Butterfly Valve
• Valve Size: 6
• Valve Operator: Lever-Lock Handle
• All Type of Item: Valve
• Turns/Operation: Quarter-Turn
• Actuator Type: Locking Handle
• Domestic/Import: Domestic
• Media: Water
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)
