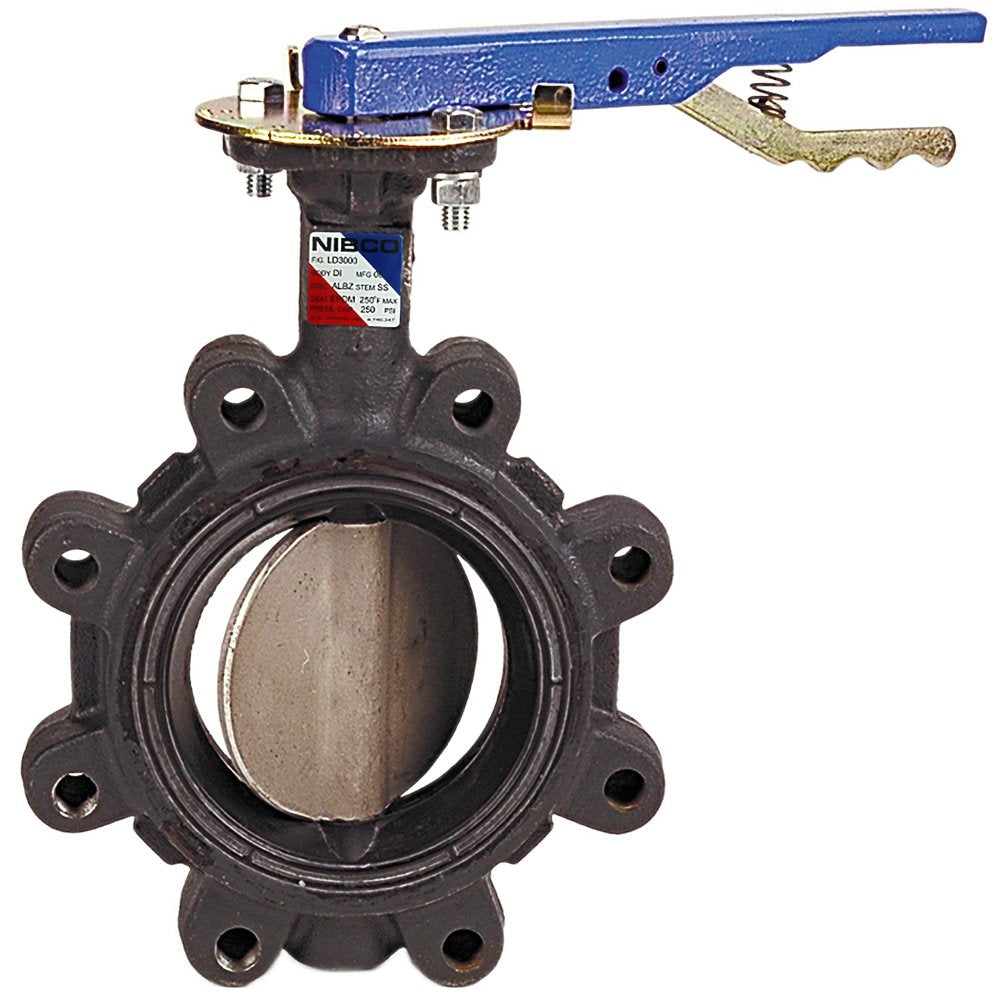

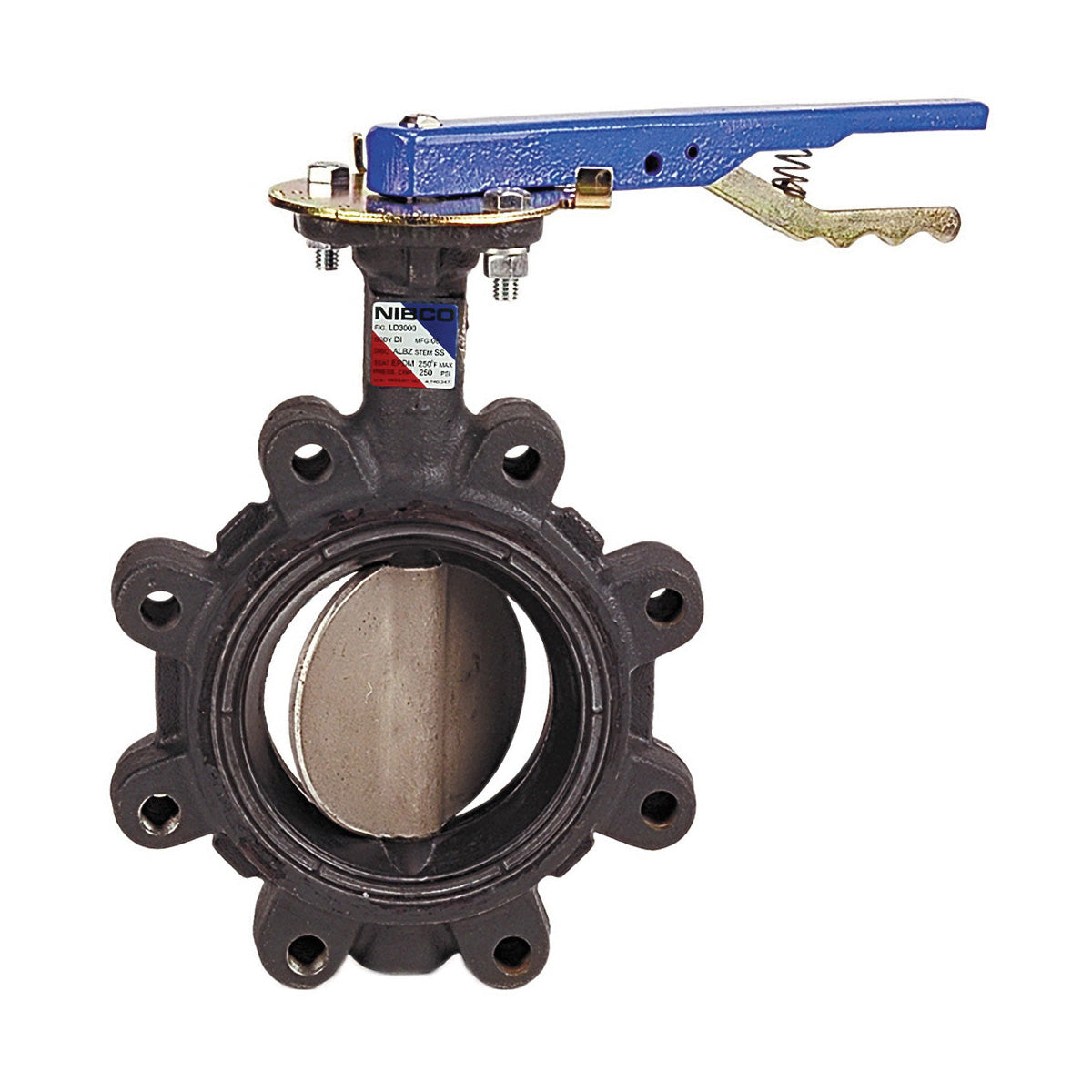

Nibco NLG100H LD-2000 Series 4 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO NLG100H lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shut-off at 200 psi. It is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. Features a stainless steel stem with copper bushings and a geometric drive design.

• 225°F continuous and 250°F intermittent service
• Lug style
• Stainless steel stem with copper bushings

Product Highlights

The NIBCO butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. An extended neck allows for insulation up to 2 in.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLG100H
• Country of Origin: Domestic

Technical Specifications

• Valve pressure rating: 200 psi
• Valve stem material: Stainless steel
• Seat liner: EPDM molded-in
• Connection Size: 4 in
• Connection Type: L - Lug
• Disc Material: Aluminum Bronze
• Item Name: Butterfly Valve
• Material Specifications: ASTM A582, ASTM B16, ASTM B148 Alloy 955, ASTM A536
• Material: Ductile Iron
• Model: LD-2000
• Operator Type: Lever-Lock Handle
• Seal Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 deg F Continuous, 250 deg F Intermittent Service
• Series/Model: Model LD2000-3
• Body Material: Ductile Iron
• Trim Material: Aluminum Bronze Disc
• Material Standard (Body): ASTM A536
• Stem Material Standard: ASTM A582
• Disc Material Standard: ASTM B148
• Disc Material Specification: Alloy 955
• Industry Standards: MSS-SP-67 Compliant, NSF/ANSI 61-8/372 Certified, US Coast Guard Category A
• Lead Free: Yes
• Bolt Circle Diameter: 7-1/2 IN
• Thread: 5/8-11 UNC
• Number Of Holes: 8
• Compatible with Pipe Flange Classes: Class 125, Class 150
• Handle Type: Lever-Lock
• Size: 4 Inch
• UPC Code: 039923717788
• Type: Butterfly Valve
• Valve Size: 4
• Valve Operator: Lever-Lock Handle
• Description: LD20003 4 LUG BFV L/LK HNDL DUCT IRON
• All Type of Item: Valve
• Turns/Operation: Quarter-Turn
• Brand: NIBCO
• Actuator Type: Locking Handle
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 4 in
• Pressure Class: 125/150 lb
• Series: LD-2000-3
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)
