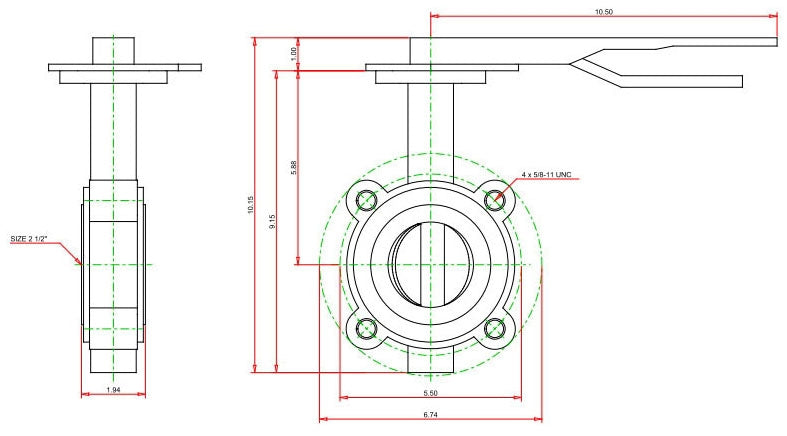

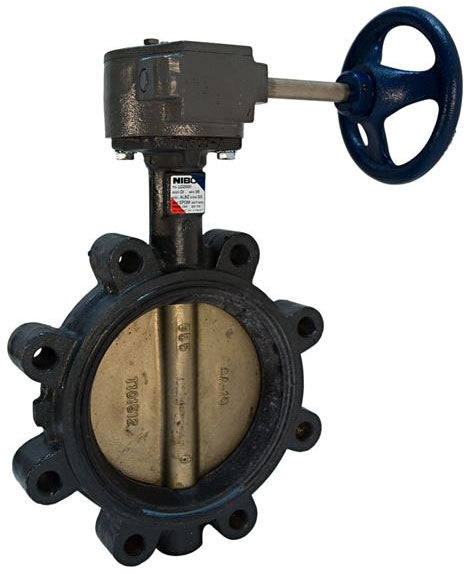

NIBCO NLG100E Lug Style Butterfly Valve 2-1/2 in Nominal 125/150 lb

Product Description

The NIBCO lug type butterfly valve with MPN NLG100E offers bi-directional dead-end service without requiring a downstream flange. It ensures bubble-tight shut-off at two hundred PSI, making it suitable for commercial and light industrial applications including HVAC, vacuum services, and hot or cold potable water. This valve features a quarter-turn operation, allowing for straightforward opening and closing. Its internal stem and disc geometric drive design eliminates the need for pins or bolts, reducing potential leak paths and turbulence.

Included features also support ease of installation and maintenance, as an extended neck permits insulation of up to two inches. The molded EPDM seat liner and aluminum bronze disc ensure durability in most water applications. NIBCO valves are recommended for your plumbing needs due to their reliable performance across various settings.

• Bi-directional dead-end service
• Temperature rating up to two hundred twenty-five degrees Fahrenheit continuous
• Built for commercial and light industrial use

Product Highlights

This valve is lead-free, compliant with NSF/ANSI standards, and includes certifications from API and MSS.

Product Information

Standard Information

• Manufacturer: NIBCO
• Model Number: NLG100E

Technical Specifications

• Actuation Type: Locking Lever Handle
• Body Material: ASTM A536 Ductile Iron
• Disc Material: ASTM B148 Aluminum Bronze Alloy
• Stem Material: ASTM A582 416 Stainless Steel
• Seat Material: EPDM
• Pressure Rating: 200 PSI
• Nominal Size: 2-1/2 in
• Temperature Rating: 225 Deg F Continuous, 250 Deg F Intermittent
