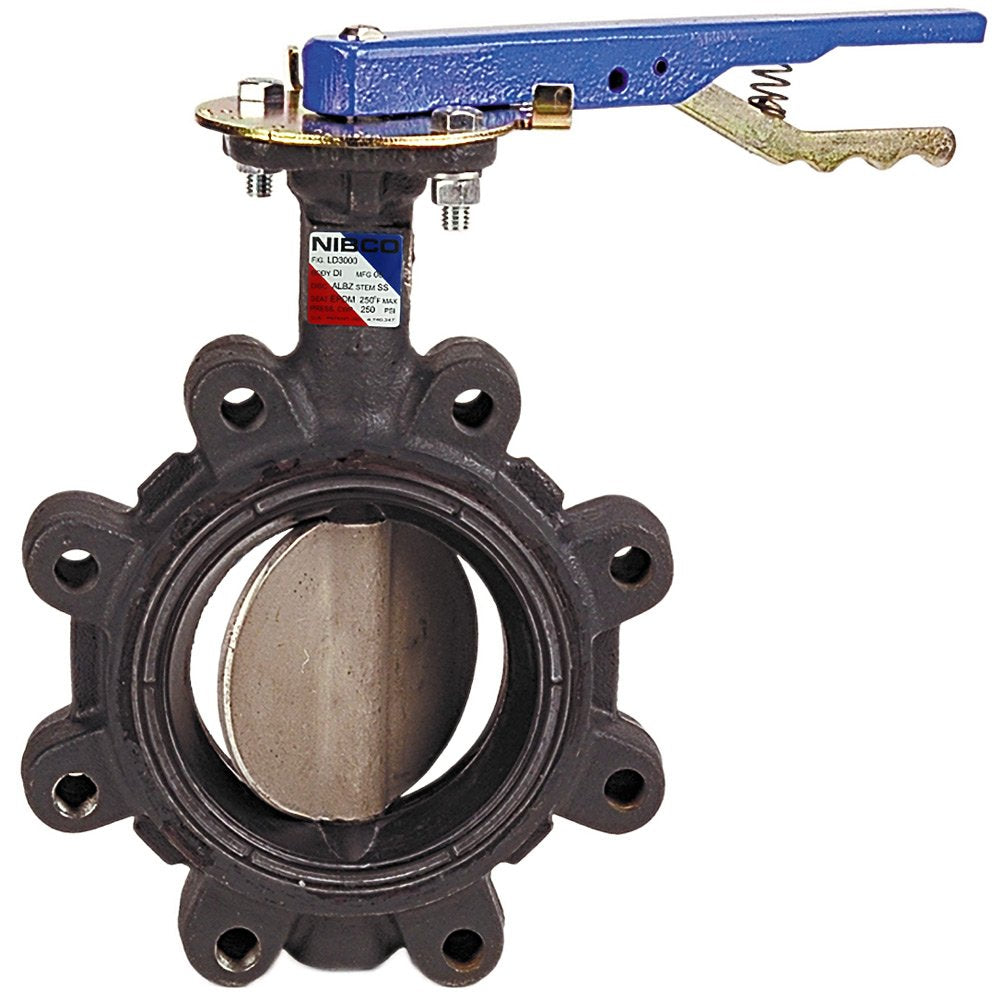

Nibco NLG100D LD-2000-3 Series Ductile Iron Butterfly Valve 2 inches Lug

Product Description

The NIBCO NLG100D LD-2000-3 Series ductile iron butterfly valve features an EPDM liner and aluminum bronze disc, with a lever-lock handle and lug connection. This 2" valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shut-off at 200 psi. It is suitable for HVAC, vacuum services, and potable water applications.

• Ductile iron construction with EPDM liner and aluminum bronze disc
• Features a lever-lock handle for ease of operation
• Provides bi-directional dead-end service without a downstream flange

Product Highlights

Ideal for commercial and light industrial applications, including HVAC and potable water systems. Offers quarter-turn operation and an extended neck for insulation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLG100D
• Country of Origin: Domestic

Technical Specifications

• Brand: NIBCO
• Series: LD-2000-3
• Material: Ductile Iron
• Handle Type: Lever-Lock
• Connection Type: Lug
• Size: 2"
• Item Model Number: NLG100D
• Manufacturer: NIBCO INC.
• Connection Size: 2 in
• Disc Material: Aluminum Bronze
• Item Name: Butterfly Valve
• Material Specifications: ASTM A582, ASTM B16, ASTM B148 Alloy 955, ASTM A536
• Model: LD-2000
• Operator Type: Lever Handle
• Pressure Rating: 200 psi
• Seal Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 deg F Continuous, 250 deg F Intermittent Service
• Standards/Certifications: MSS SP-67, MSS SP-25, API 609, US coast guard category A, vermont act 193, QAIus P347 listed, ANSI/NSF 61 and 372 certified
• Applications: For commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water
• Nominal Size: 2 IN
• Body Material: Ductile Iron
• Trim Material: Aluminum Bronze Disc
• Material Standard (Body): ASTM A536
• Stem Material Standard: ASTM A582
• Disc Material Standard: ASTM B148
• Disc Material Specification: Alloy 955
• Industry Standards: MSS-SP-67 Compliant, NSF/ANSI 61-8/372 Certified, US Coast Guard Category A
• Lead Free: Yes
• Bolt Circle Diameter: 4-3/4 IN
• Thread: 5/8-11 UNC
• Number Of Holes: 4
• Valve Size: 2
• Valve Operator: Lever-Lock Handle
• Description: LD20003 2 LUG BFV L/LK HNDL DUCTILE IRON
• Turns/Operation: Quarter-Turn
• Pressure Class: 125/150 lb
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)
• Top to Inlet Center: 6.38 in
• Lead-Free/Contains Lead: Lead-Free
• Material Standard: ASTM A582/ASTM B16/ASTM B148/ASTM A536
• Domestic / Import: Domestic
• Actuator Type: Locking Handle
• Manufacturer #: NLG100D
