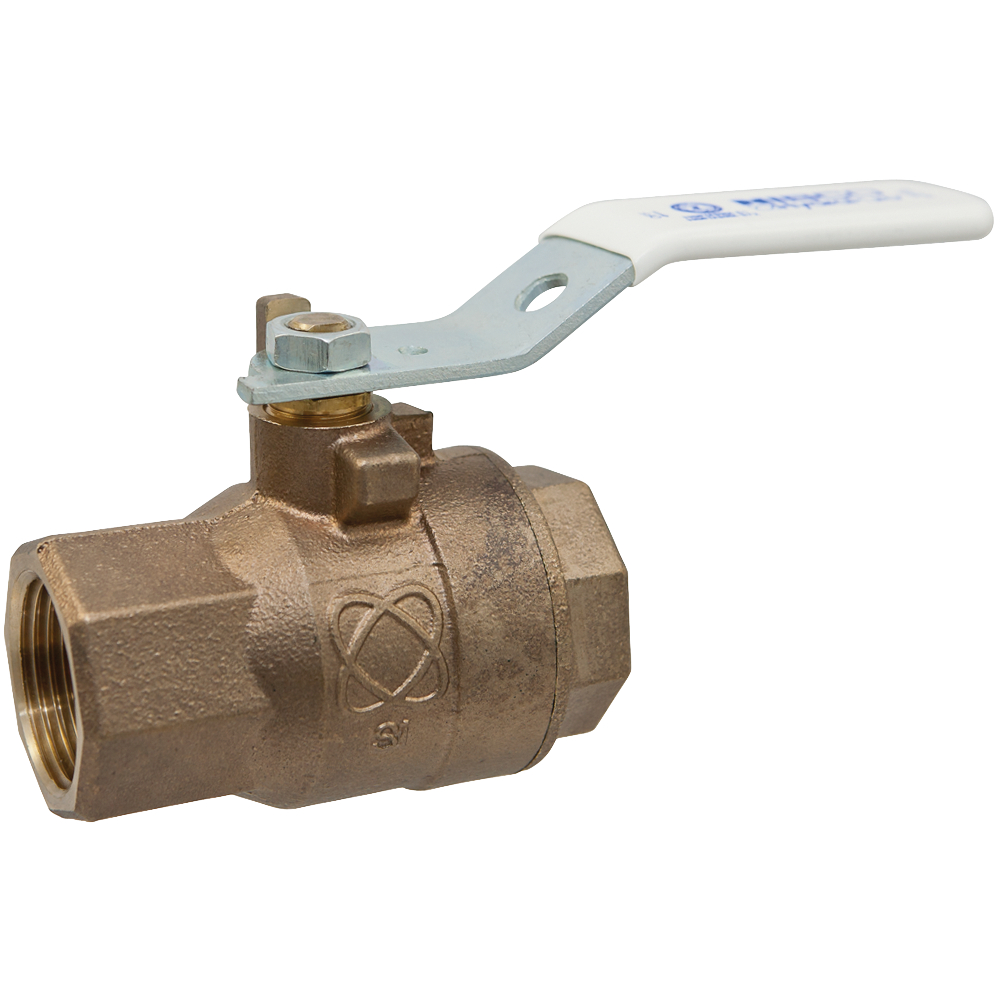

Nibco NLB95TXA 1 in Lead Free Threaded Full Port Ball Valve

Product Description

The NIBCO NLB95TXA is a lead-free bronze ball valve designed for reliable quarter-turn shutoff in plumbing, mechanical, and light industrial piping systems. The two-piece body construction features threaded end connections and a full-port design that minimizes pressure drop across the valve. Built to lead-free standards, this valve is suitable for potable water service and other applications where lead content compliance is required. Licensed plumbers and pipefitters install this valve in both new construction and retrofit situations where a durable, low-maintenance shutoff is needed.

The NLB95TXA is suited for residential, commercial, and light industrial piping applications. Full-port flow geometry makes it appropriate for systems where minimizing restriction is a priority. Threaded end connections allow installation without soldering or specialty tooling, making it a practical choice for service work and tight-access installations.

Key Features

• Lead-free bronze body construction for potable water compliance
• Full-port ball design minimizes flow restriction and pressure drop
• Quarter-turn operation (90 degrees) for fast open and close
• Two-piece body for straightforward field assembly and seat access
• Threaded end connections eliminate the need for soldering
• NIBSEAL design for reliable long-term sealing performance

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for threaded piping systems in residential, commercial, mechanical, and industrial applications requiring a 1-inch full-port shutoff valve.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IAPMO or IPC standards. Isolate and depressurize the piping system fully before beginning work. Apply thread sealant or PTFE tape to male threads per standard practice. Consult the NIBCO technical data sheet and valve selection guide for pressure and temperature ratings before specifying for a given application.

Technical Specifications

• End Connection: Threaded
• Port Type: Full Port
• Body Material: Lead-Free Bronze
• Operation: Quarter-Turn (90 degrees)
• Body Style: Two-Piece
• Size: 1 inch
• UPC: 039923446817

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95TXA
