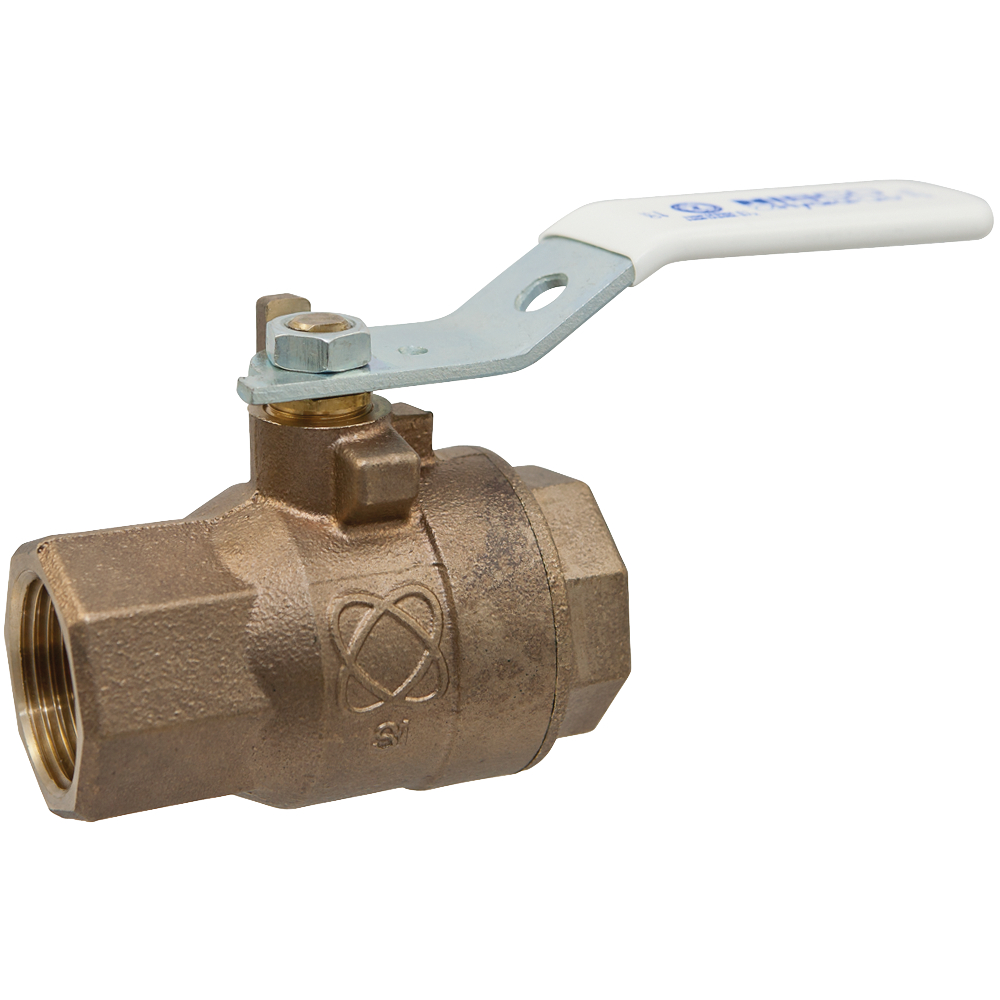

Nibco NLB95TX8 Bronze Ball Valve 3/4 in Threaded

Product Description

The NIBCO NLB95TX8 is a lead-free, two-piece bronze ball valve designed for fluid shutoff and flow control in plumbing and mechanical piping systems. It operates with a quarter-turn (90 degrees) action from fully open to fully closed, reducing operator fatigue and speeding service time. The full-port design minimizes pressure drop across the valve. Threaded end connections make installation straightforward in standard pipe configurations. This valve is suited for installation by licensed plumbers and pipefitters working in commercial, residential, or light industrial applications.

The NLB95TX8 is appropriate for use in commercial and residential plumbing systems, mechanical rooms, and industrial fluid handling lines where a reliable threaded bronze shutoff is required. The lead-free construction meets requirements for potable water service, making it a practical choice for domestic water supply applications. Its two-piece body allows for easier maintenance access compared to single-piece designs.

Key Features

• Quarter-turn operation for fast open and close actuation
• Full-port bore minimizes flow restriction and pressure drop
• Lead-free bronze body construction suitable for potable water service
• Two-piece body design for serviceability
• Threaded end connections for standard pipe installation
• NIBCO 5-year 125% limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation threaded bronze ball valve for 3/4 inch pipe in residential and commercial plumbing and mechanical systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. Use appropriate thread sealant or PTFE tape on all threaded connections. Consult the NIBCO technical data sheet and valve selection guide for engineering specifications and pressure-temperature ratings before installation.

Technical Specifications

• End Connection: Threaded
• Port Type: Full Port
• Body Material: Bronze
• Lead-Free: Yes
• Pipe Size: 3/4 inches
• Operation: Quarter-turn (90 degrees)
• Body Style: Two-piece
• Warranty: 5-year 125% limited
• UPC: 039923446800

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95TX8
