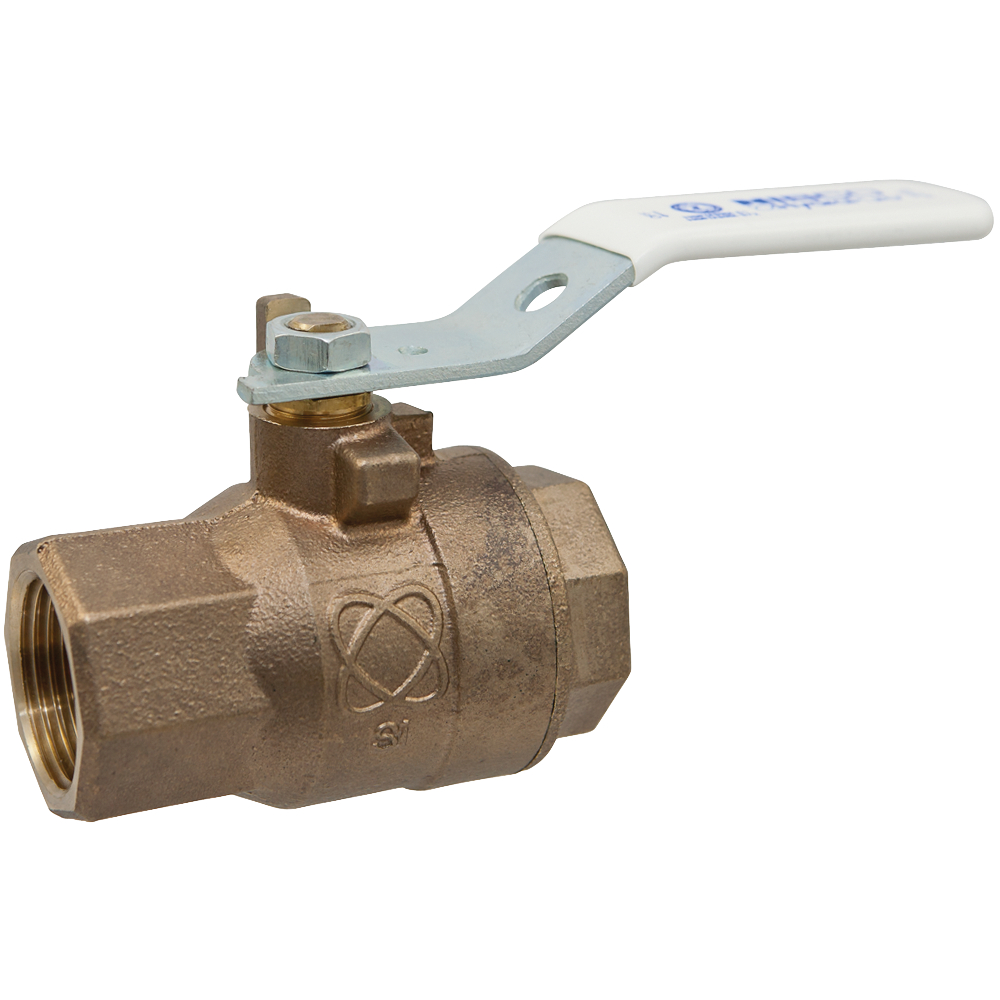

Nibco NLB95HX8 3/4 Inch Full Port Ball Valve Ss Trim

Product Description

The NIBCO NLB95HX8 is a two-piece, full port bronze ball valve with stainless steel trim, designed for reliable quarter-turn shutoff in plumbing, mechanical, and light industrial piping systems. The 3/4-inch threaded ends allow straightforward installation into existing threaded pipe runs without special tooling. A full port bore minimizes flow restriction, making this valve well suited for applications where pressure drop is a concern. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this valve in both new construction and retrofit service work.

This valve is intended for residential, commercial, mechanical, and industrial fluid control applications. Its bronze body and stainless steel trim construction make it appropriate for potable water, hydronic heating, and general-purpose plumbing service. The threaded end connections conform to standard NPT configurations, fitting into the most common pipe assemblies encountered in commercial and residential mechanical rooms, utility connections, and process lines.

Key Features

• Full port design reduces flow restriction and pressure drop across the valve
• Quarter-turn operation provides fast, positive open and close actuation
• Two-piece bronze body construction allows for straightforward field service
• Stainless steel trim for corrosion resistance in demanding service environments
• 3/4-inch threaded ends compatible with standard NPT pipe connections
• Lead-free (LF) designation suitable for potable water installations

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/4-inch threaded piping systems in residential, commercial, mechanical, and industrial applications where a full port bronze ball valve with stainless steel trim is specified.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the supply line and drain the system before removing or installing any valve. Apply thread sealant or PTFE tape to NPT threads per standard trade practice before making up connections. Consult the NIBCO technical data sheet and valve selection guide for pressure-temperature ratings and engineering requirements before placing the valve in service.

Technical Specifications

• Body Material: Bronze
• Trim Material: Stainless Steel
• Port Type: Full Port
• End Connection: Threaded (NPT)
• Pipe Size: 3/4 inches
• Operation: Quarter-turn (90 degrees)
• Valve Configuration: Two-piece
• UPC: 039923446503

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HX8
