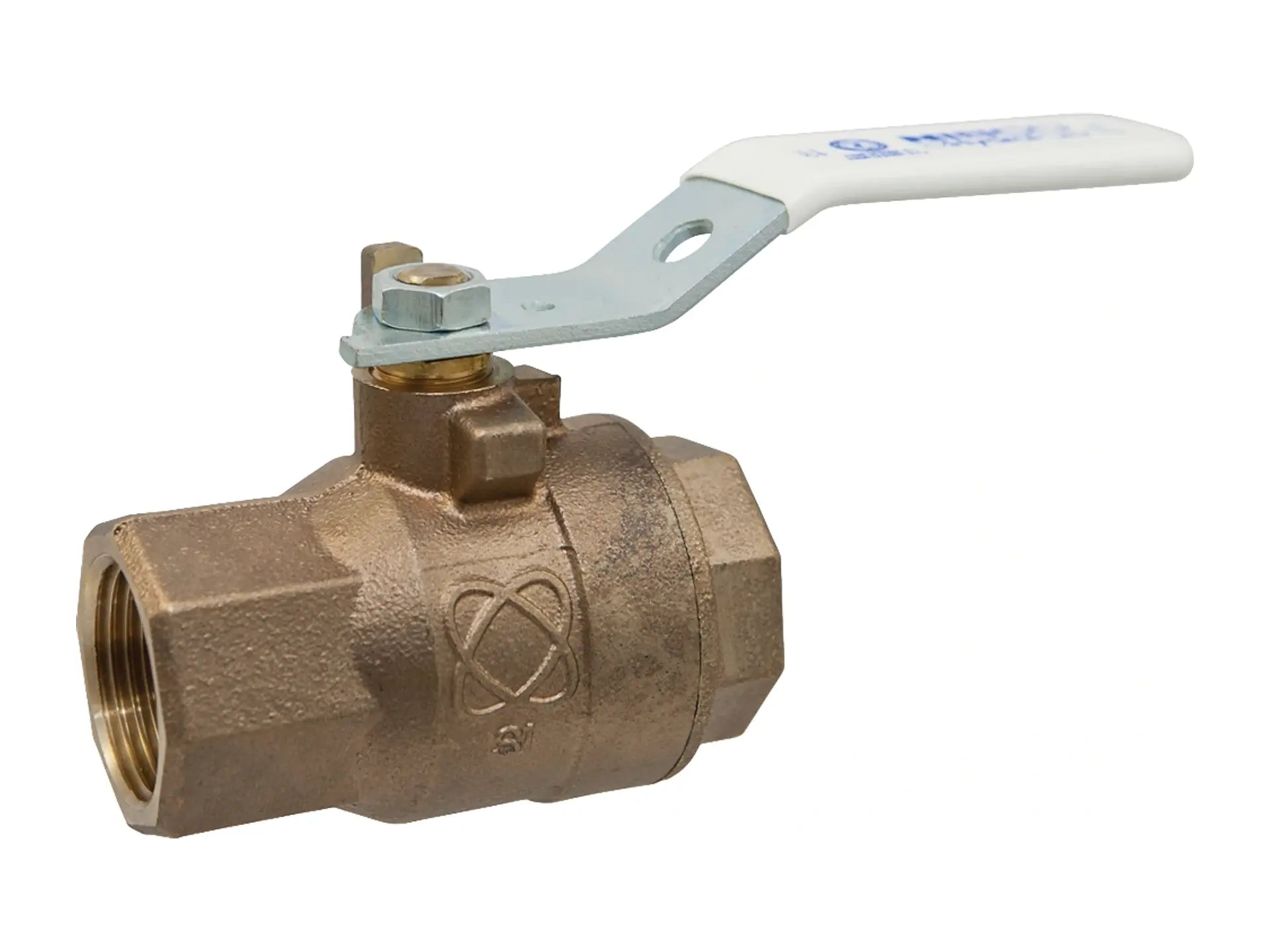

Nibco NLB95HN6 Ball Valve 1/2 in. x 1/2 in.

Product Description

The NIBCO NLB95HN6 ball valve is made of lead-free bronze with a stainless steel stem and ball, ideal for delivering water for human consumption in residential and commercial construction. This two-piece bronze ball valve provides quarter-turn (90°) operation and features threaded ends for easy installation.

• Valve pressure rating 600 psi non-shock cold working pressure
• Maximum temperature rating 300°F
• Full port

Product Highlights

This NIBCO ball valve is dezincification resistant and conforms to MSS SP-110. It features a vented ball and a blowout-proof stem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HN6
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95HN6
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball Valve
• Nominal Pipe Size: 1/2"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Bronze, Plastic, Stainless Steel
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923446466
• Length: 4.61"
• Width: 4.25"
• Height: 2.25"
• ANSI: ANSI 372, ANSI 61-8, ANSI Z1157
• ASTM: ASTM A-276, ASTM B-16 C36000, ASTM B-584 C87600
• Collection: T-585-66-LF
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110, MSS SP-145
• Material Type: RPTFE
• Maximum Temperature: 300
• NSF: NSF 372, NSF 61-8
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• UL Listed: No
• Valve Body Material: Bronze
• Valve Body Style: 2 piece
• Valve Disc Material: Stainless Steel
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
