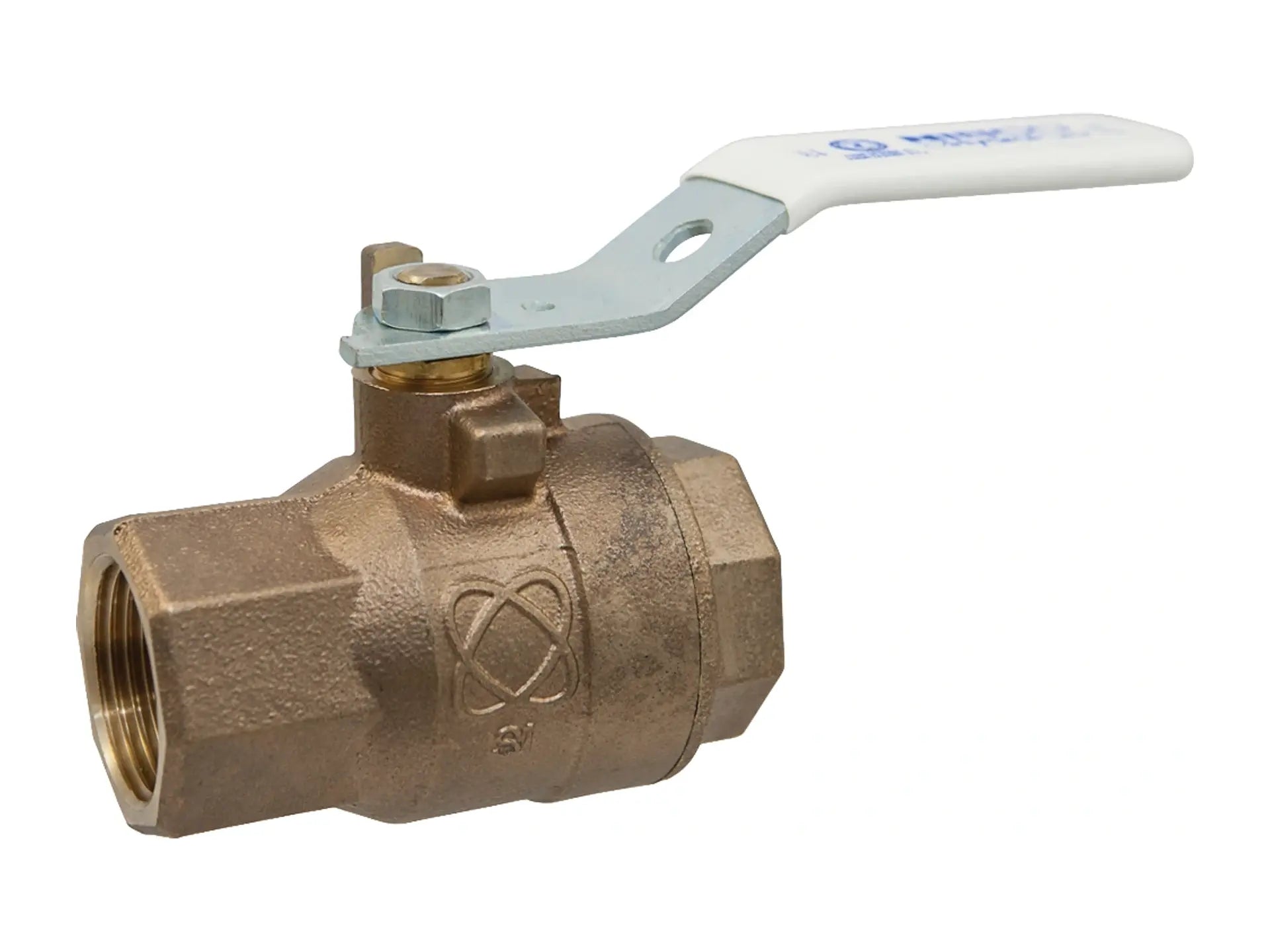

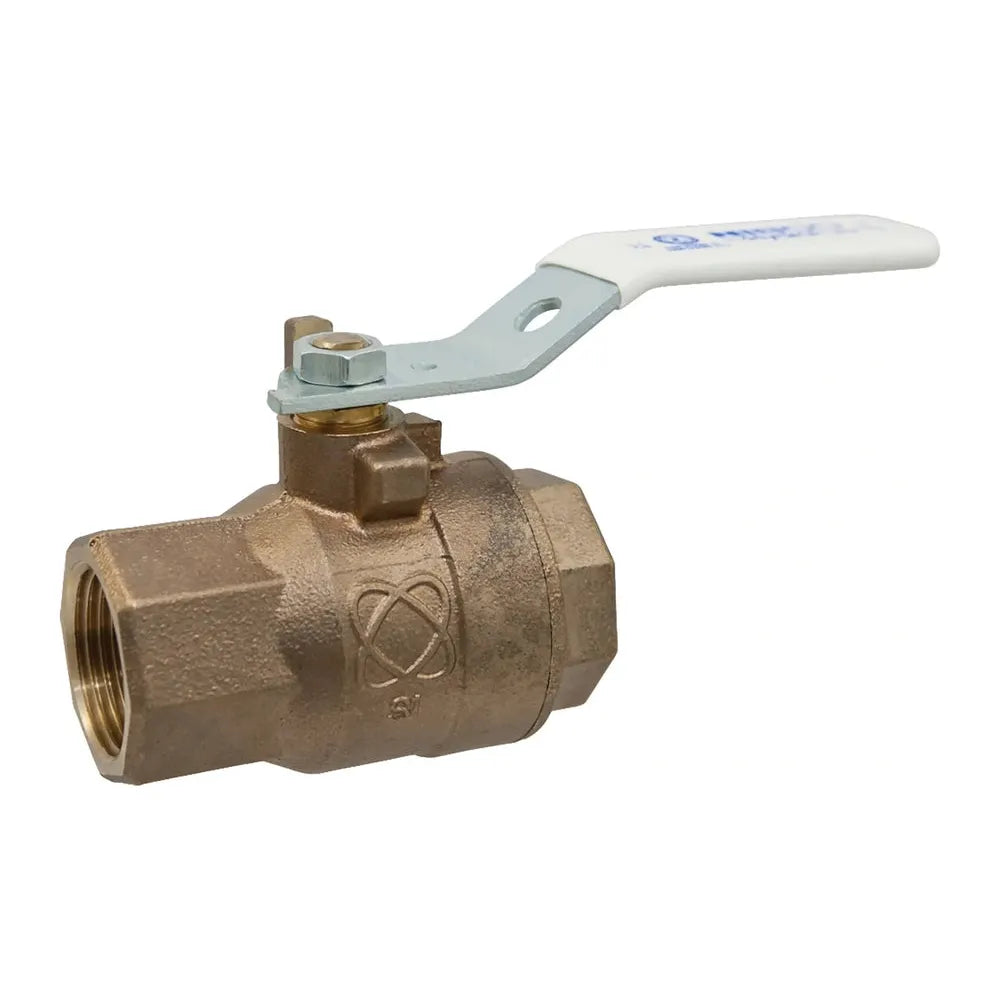

Nibco NLB95HN4 Ball Valve 1/4 in. Lead-Free Bronze

Product Description

The NIBCO NLB95HN4 ball valve is made of lead-free bronze with stainless steel stem and ball, ideal for water delivery in residential and commercial construction. This bronze ball valve offers easy quarter-turn (90°) operation. The two-piece valve features threaded ends for simple installation.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Choose NIBCO ball valves for a versatile and economical option in commercial, residential, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HN4
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95HN4
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1/4"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923449627
• Length: 4.61"
• Width: 4.25"
• Height: 2.25"
• Country of Origin: US
