Nibco NLB95HMC Ball Valve 1-1/2 in. x 1-1/2 in.

Product Description

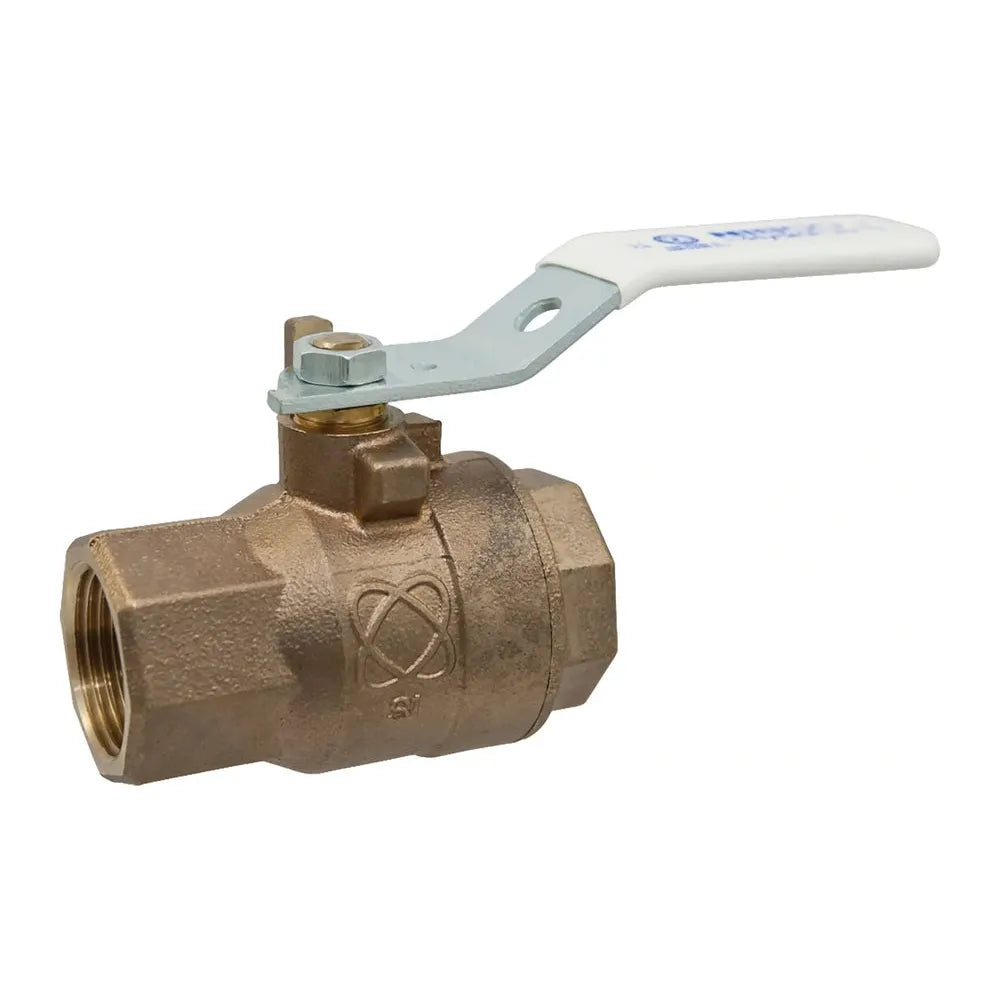

The NIBCO NLB95HMC is a lead-free ball valve with a stainless steel stem and ball, designed for potable water applications in residential and commercial construction. This two-piece bronze ball valve offers quarter-turn (90°) operation and features threaded ends for easy installation.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Ideal for use in applications that deliver water for human consumption, including residential and commercial construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HMC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95HMC
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/2"
• End Connection Type: Female NPT Thread (FIPT)
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923446459
• Length: 6.84"
• Width: 6.48"
• Height: 2.94"
• Country of Origin: US
