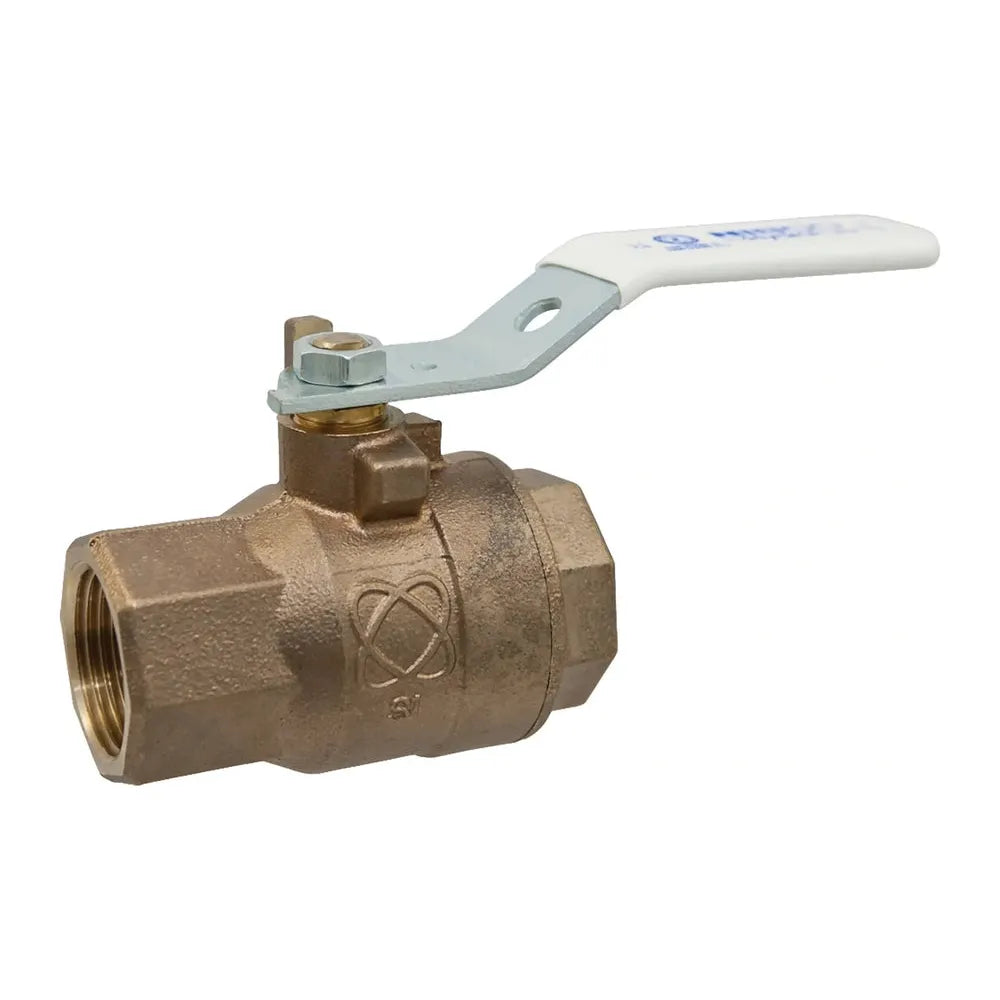

Nibco NLB95HMB Ball Valve 1-1/4 in. x 1-1/4 in.

Product Description

The NIBCO ball valve with MPN NLB95HMB is made of lead-free bronze with a stainless steel stem and ball, ideal for delivering water for human consumption in residential and commercial construction. This bronze ball valve offers easy quarter-turn (90°) operation. The two-piece valve features threaded ends for easy installation.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Lead-free bronze, stainless steel ball and stem, quarter-turn operation, threaded ends, suitable for residential and commercial use.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HMB
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95HMB
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball Valve
• Nominal Pipe Size: 1-1/4"
• End Connection Type: Female NPT Thread (FIPT)
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece

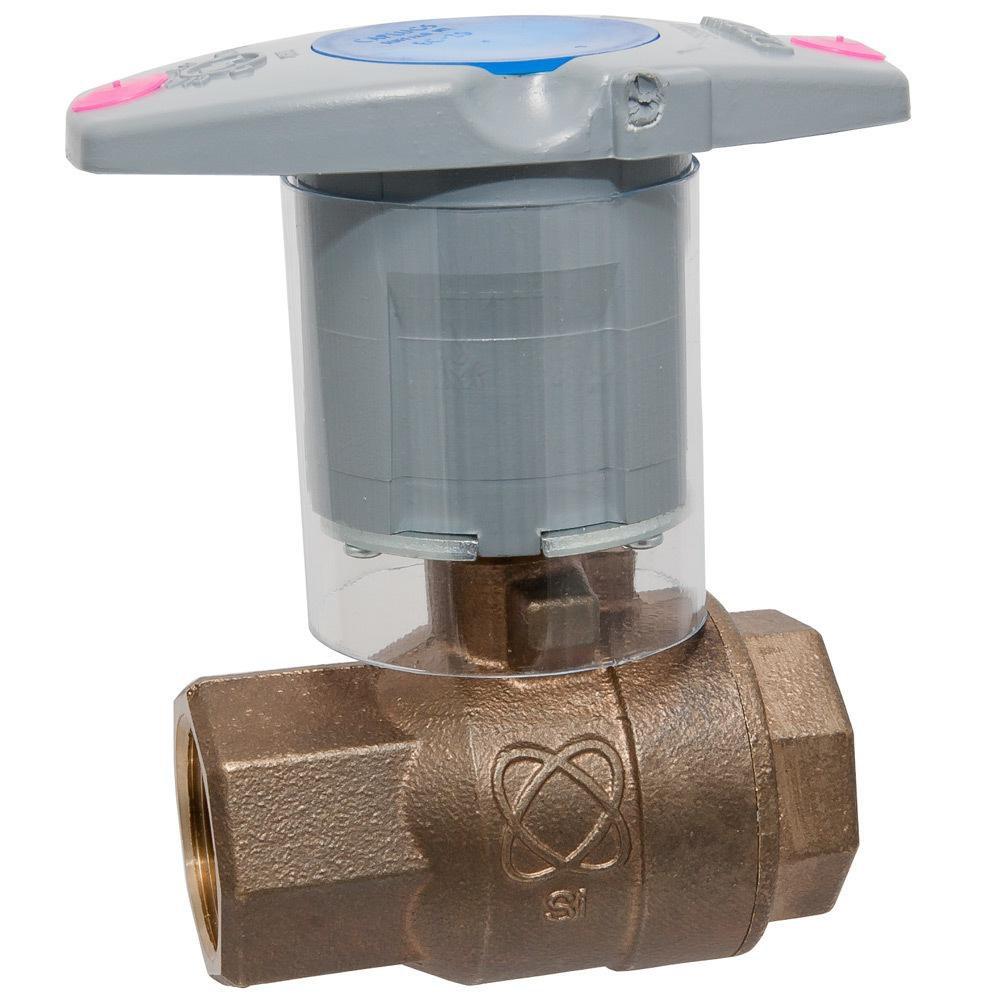

• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923446442
• Length: 6.48"
• Width: 6.35"
• Height: 2.94"
• ANSI: ANSI 372, ANSI 61-8
• ASTM: ASTM A-276, ASTM B-16
• Collection: T-585-66-LF
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• FM Approved: No
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material Type: DZR
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Pressure Class: 600#
• Valve Body Style: 2 piece
• Valve Bonnet Type: Threaded
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1-1/4 in
• Valve Stem: Blowout-proof
