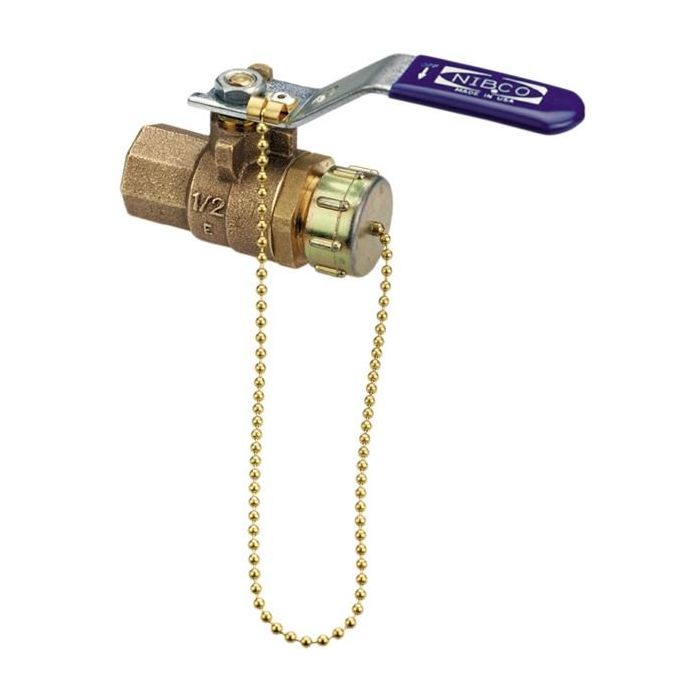

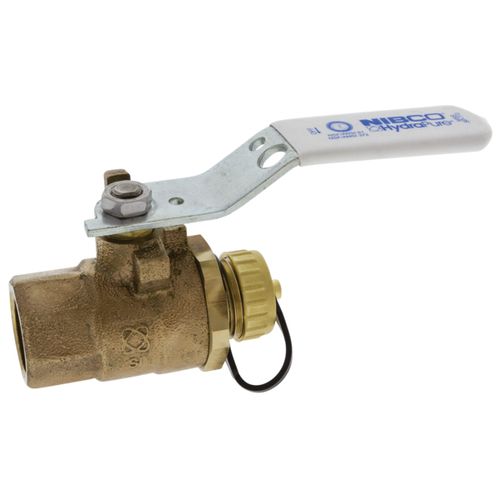

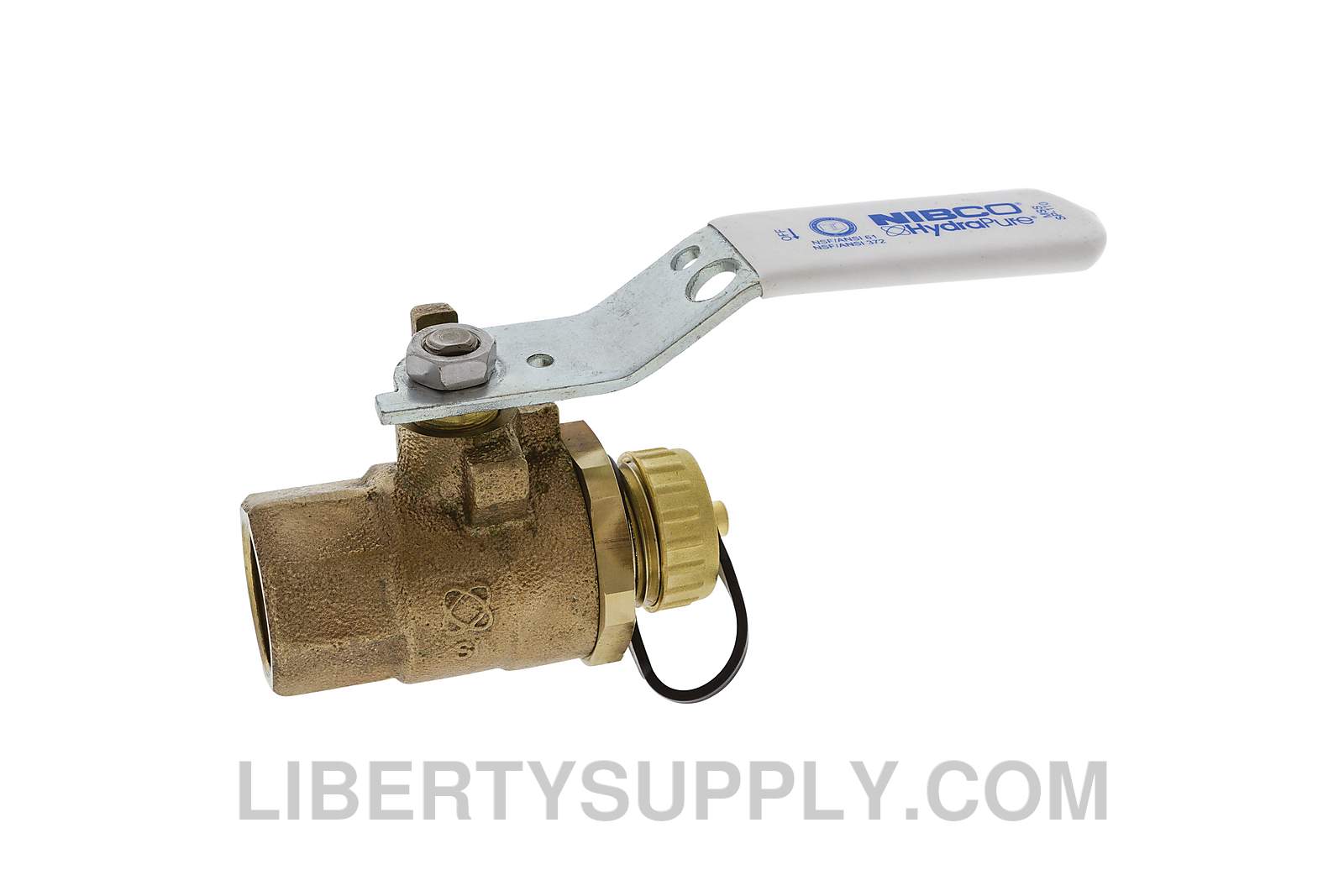

NIBCO NLB958X8 Bronze Ball Valve 3/4 in Threaded with Hose Cap and Chain

Product Description

The NIBCO NLB958X8 is a bronze ball valve designed for easy quarter-turn operation. This two-piece valve is made from lead-free silicon bronze and features threaded ends for straightforward installation. Operating at a maximum pressure of six hundred PSI, it is resistant to dezincification. The valve is equipped with reinforced PTFE seat rings, and the ball and stem are made from silicon bronze, making it durable for various applications.

• Full port design for improved flow.
• Standard lever handle for simple operation.
• Includes hose cap and chain for added convenience.

Product Highlights

This valve is ideal for water delivery systems in residential and commercial settings.

Product Information

Standard Information

• Manufacturer Part Number: NLB958X8
• UPC Code: 039923446435

Technical Specifications

• Valve Type: Ball Valve
• Valve Size: 3/4 in
• Connection Type: Female NPT Thread (FIPT) x Hose Cap & Chain
• Port Type: Full Port
• Material: Bronze
• Handle Style: Lever
• Valve Operator: Lever Handle
• Ball Material: Silicon Bronze
• Pressure - High: 600
• Recommended Valve Application: Potable Water
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Length: 3-7/50 in
• Width: 3-33/100 in
• Height: 3-4/25 in
• Weight: 1.460 lb
