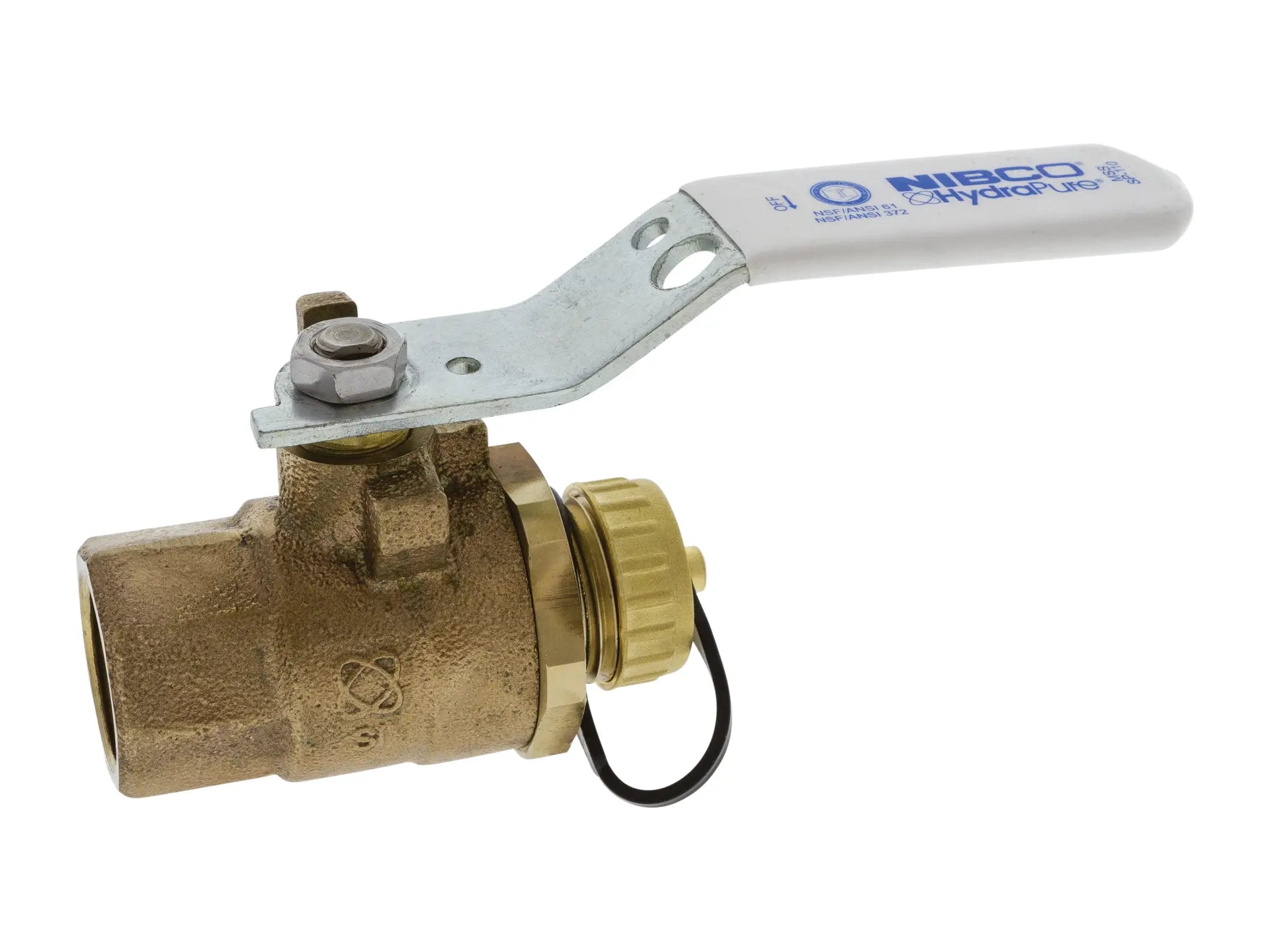

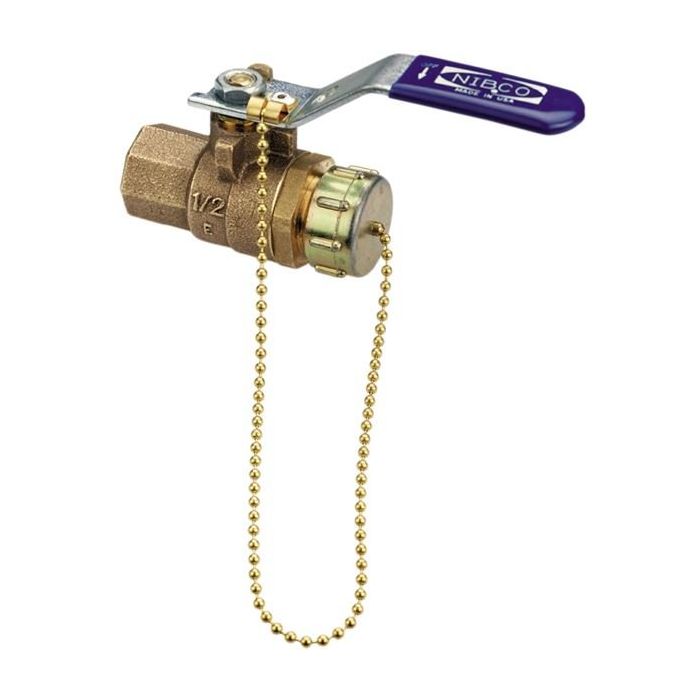

Nibco Nlb958x6 T-585-80-Lf-Hc Two-Piece Performance Bronze Ball Valve 1/2 x 3/4 in

Product Description

The NIBCO NLB958X6 bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded ends for easy installation. It is ideal for use in applications that deliver water for human consumption including residential and commercial construction. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Full port
• Blowout-proof stem

Product Highlights

This lead-free bronze ball valve is dezincification resistant and conforms to MSS SP-110. Suitable for commercial, residential, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB958X6
• Country of Origin: US

Technical Specifications

• UPC Code: 039923349156
• Type: Ball Valve
• Connection Type: T-HC -- Female NPT Thread (FIPT) x Hose Cap & Chain
• Valve Size: 1/2
• Material: Lead Free Silicon Bronze
• Valve Operator: CS Standard Lever Handle
• Description: T585-80-LF-HC 1/2 W/ 3/4 HOSE CAP CHAIN
• Turns/Operation: Quarter-Turn
• Manufacturer: NIBCO
• Part Number: NLB958X6
• Model: T585-80-LF-HC
• Series: T-585-80-LF-HC
• Type of Valve: Ball
• Nominal Pipe Size: 1/2"
• End Connection Type: T-HC -- Female NPT Thread (FIPT) x Hose Cap & Chain
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Material: Silicon Bronze
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 4.62"
• Width: 2.92"
• Height: 2.62"
• Brand: NIBCO
• Actuator Type: Standard Lever
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Threaded x Hose
• Inlet to Outlet Length: 2.74 in
• Nominal Size: 1/2 x 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: RPTFE
• Top to Inlet Center: 1.96 in
• Trim Material: Silicon Bronze Stem
• Valve Type: Ball Valve
