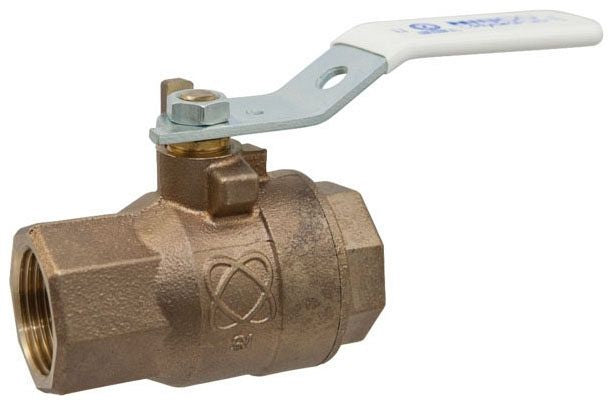

Nibco NLB951XC Ball Valve 1-1/2 inches NPT Female

Product Description

The NIBCO NLB951XC bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded ends for easy installation. It provides bubble-tight shutoff at 600 PSI and is dezincification resistant. Ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Silicon Performance Bronze body, ball and stem
• Blowout-proof stem

Product Highlights

The NIBCO ball valve is a versatile and economical valve option in commercial, residential, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB951XC
• Country of Origin: Domestic

Technical Specifications

• Valve Type: Ball Valve
• Connection Type: FNPT
• Valve Size: 1 1/2
• Stem Material: Silicon Bronze
• Material: Lead Free Silicon Bronze
• Valve Operator: CS Standard Lever Handle
• Valve Operator Material: Metal - NIBCO - Steel - Zinc Plated
• Turns/Operation: Quarter-Turn
• Actuator Type: Standard Lever
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Thread
• Inlet to Outlet Length: 4.26 in
• Media: Gas, Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: T-585-80-LF Series
• Softgoods Material: PTFE
• Temperature Rating: 400 Deg F
• Top to Inlet Center: 3.32 in
• Trim Material: Silicon Bronze Stem
• Number of Handles: 1
• Operator Type: Lever Handle
• Packing Material: PTFE
• Seat Material: PTFE
• Lead-Free/Contains Lead: Lead-Free
• Opening Size: 1.50 inch
• Seat: Reinforced PTFE
• Construction: 2-Piece
• Packing: PTFE
• Actuation/Operator: Lever Handle
• Trim: Bronze
• Manufacturer Part Number: NLB951XC
• Manufacturer: Nibco
