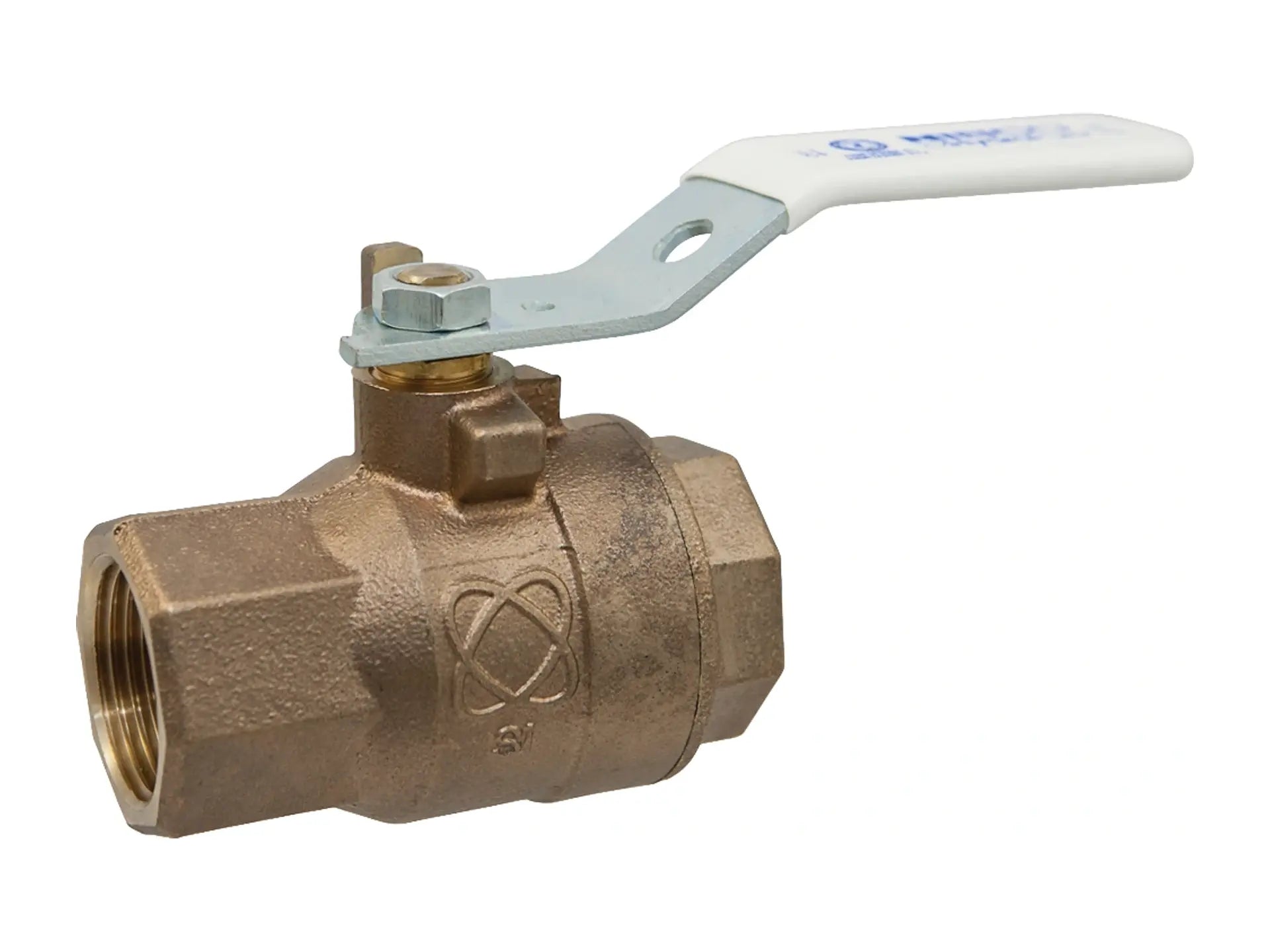

Nibco NLB950XA T-585-80-LF 2-Piece Ball Valve 1 in

Product Description

The NIBCO NLB950XA bronze ball valve provides quarter-turn (90 deg) operation. This two-piece valve features threaded ends for easy installation. Constructed from lead-free silicon performance bronze, it ensures a bubble-tight shutoff at 600 PSI and is dezincification resistant. Ideal for residential, commercial, mechanical, and industrial applications delivering water for human consumption.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Silicon Performance Bronze body, ball and stem
• Blowout-proof stem

Product Highlights

Lead-free NIBCO ball valve with bronze body, full port, and threaded ends, designed for easy installation and reliable performance in various applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB950XA
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Thread
• Inlet to Outlet Length: 3.34 in
• Media: Water
• Nominal Size: 1 In
• Orifice Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 2.48 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Connection Type: NPT x NPT
• Opening Size: 1 inch
• Seat: Reinforced PTFE
• Stem: Silicon Bronze B371 Alloy C69300
• Construction: 2-Piece
• Packing: Virgin PTFE
• Actuation/Operator: Lever Handle
• Manufacturer: NIBCO
• Part Number: NLB950XA
• Model: T-585-80-LF
• UPC: 039923446169
• Nominal Pipe Size: 1.00
• Length (In): 6.43
• Width (In): 3.46
• Height (In): 1.97
• Country of Origin: US
• All Basic Material: Lead-Free Bronze
• All Type of Item: Valve
• Type of Valve: Ball Valve
• Size Dimensions: 1 in. x 1 in.
• Valve Ball Port Style: Full Port
• Valve End Connection Type: T -- Female NPT Thread (FIPT)
• End Connection: Threaded
• Valve Ball Operator: CS Standard Lever Handle
• Turns Operations: Quarter-Turn
• Valve Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Valve Trim Package: Bronze Trim
• Valve Pressure Rating (CWP): 600 PSI / 41.4 Bar CWP
• All Application(s): Lead-Free*
• Potable Water Code: LL Compliant NSF/ANSI 372
