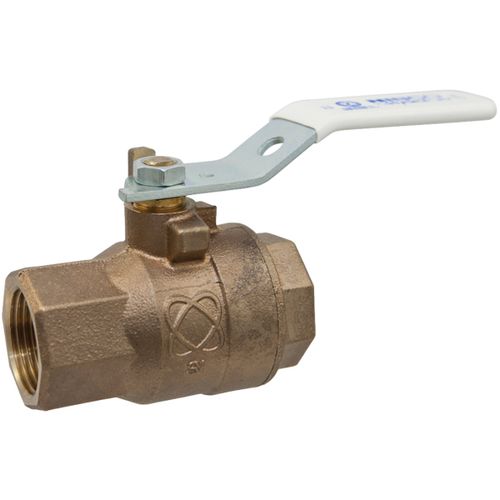

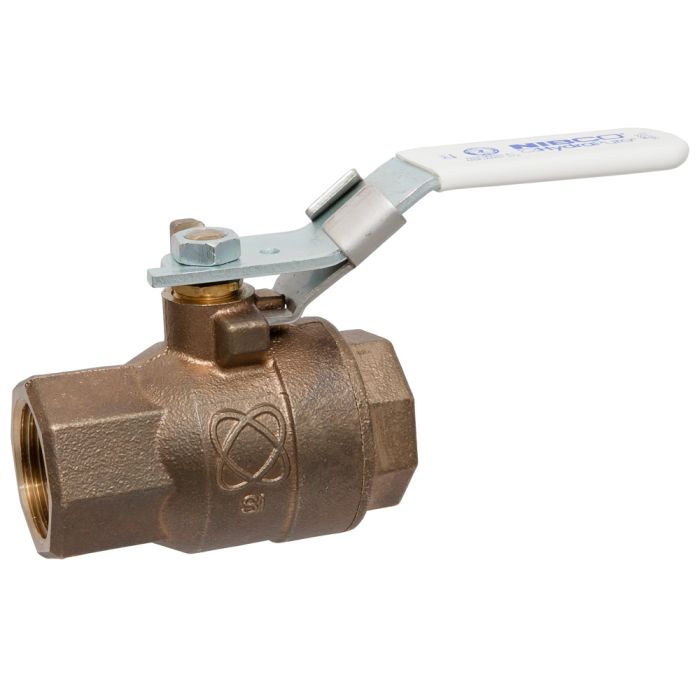

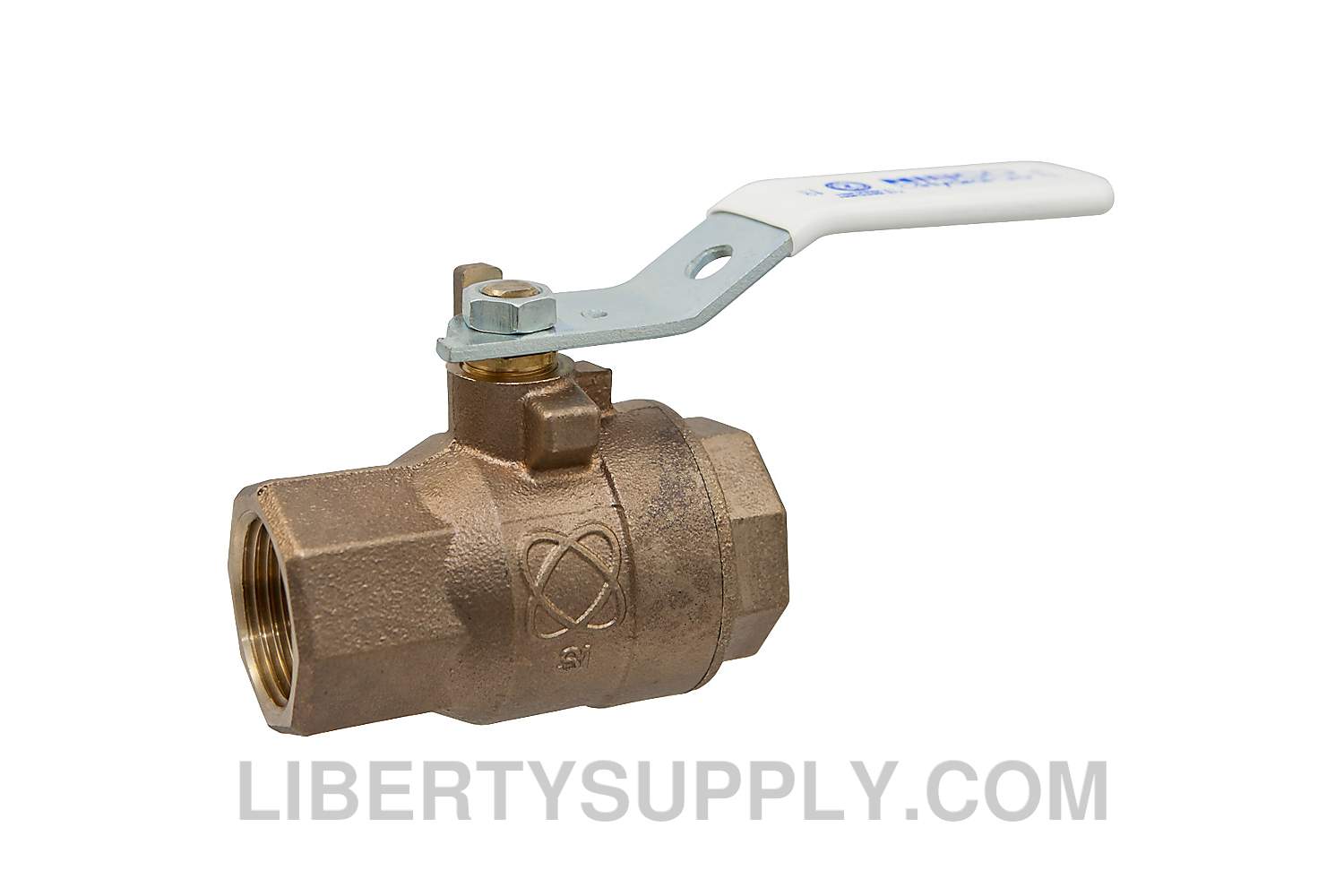

NIBCO NLB950X4 Bronze Ball Valve 1/4 Inch Full Port

Product Description

The NIBCO NLB950X4 is a two-piece ball valve made from lead-free bronze. This product features a silicon bronze stem and ball. It is designed with female NPT threaded connections for easy installation. The standard lever handle allows for simple quarter-turn operation. The valve provides a bubble-tight shutoff and is resistant to dezincification. The full port design minimizes flow restriction, making it suitable for various applications, including potable water in residential and commercial settings.

• Lead-free bronze construction
• Full port design for unrestricted flow
• Female NPT threaded connections for easy setup

Product Highlights

This ball valve is ideal for applications requiring reliable shutoff and flow control.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: NLB950X4

Technical Specifications

• Valve Type: Ball Valve
• Nominal Pipe Size: 1/4 inch
• Connection Type: FNPT x FNPT
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Material: Silicon Bronze
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Operation: Quarter-Turn
