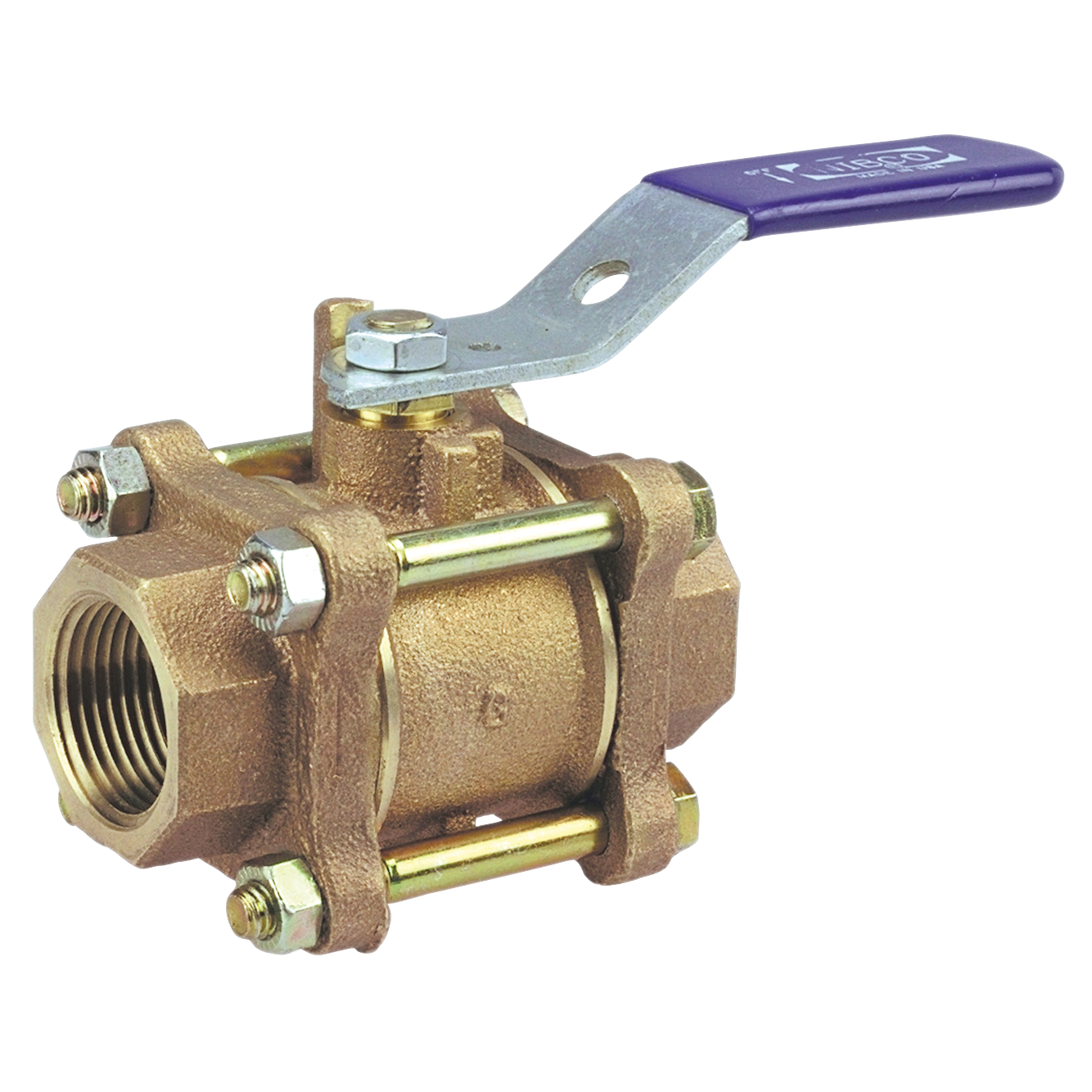

Nibco NL99LX0A Bronze Ball Valve Locking Handle

Product Description

The NIBCO NL99LX0A is a three-piece bronze ball valve with a locking handle, designed for quarter-turn (90-degree) open-to-close operation. The valve features a PTFE seat ring, stainless steel ball, and stainless steel stem, providing high chemical resistance suited for demanding high-pressure applications. Threaded end connections simplify installation in new construction and retrofit work. The NIB-SEAL insulated locking handle is designed to eliminate condensate formation, making this valve well suited for chilled water and refrigeration piping systems. Licensed plumbers and pipefitters are the typical installers in commercial, mechanical, and industrial settings.

This valve is sized at 1 inch and is intended for commercial, mechanical, and industrial piping systems where a reliable shutoff with tamper-resistant locking capability is required. The threaded end configuration suits standard pipe connections across a wide range of system types. The NIB-SEAL handle option makes it particularly applicable in systems where condensate on valve bodies is a concern, such as chilled water distribution or low-temperature fluid lines.

Key Features

• Quarter-turn operation for fast, positive shutoff
• PTFE seat ring and stainless steel ball and stem for high chemical resistance
• Three-piece body construction allows in-line service and repair
• Threaded end connections for straightforward installation
• NIB-SEAL insulated locking handle reduces condensate formation
• Locking handle deters unauthorized valve operation

Compatibility

Designed as an OEM-style replacement or new-installation bronze ball valve for 1-inch threaded piping systems in commercial, mechanical, and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Isolate and depressurize the system and drain fluid from the line before removing or installing any valve. Ensure threaded connections are sealed with appropriate thread sealant or PTFE tape rated for the media being conveyed. Consult the NIBCO technical data sheet and valve selection guide for pressure and temperature ratings before commissioning.

Technical Specifications

• Body Material: Bronze
• Ball and Stem Material: Stainless Steel
• Seat Material: PTFE
• Valve Size: 1 inch
• End Connection: Threaded
• Body Style: Three-Piece
• Handle Type: NIB-SEAL Insulated Locking Handle
• Operation: Quarter-Turn (90 degrees)
• Warranty: 5-Year 125% Limited Warranty
• UPC: 039923437235

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL99LX0A
