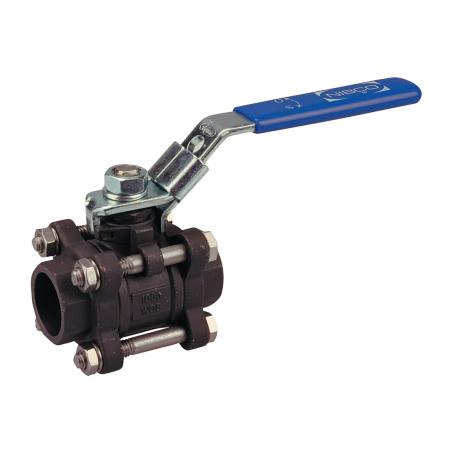

NIBCO INC NL99J4D T595CSR66LL 2 THRD BALL 3PC LKG LV CS

Product Description

NIBCO INC NL99J4D is a ball valve designed for fluid control in various applications. This three-piece valve is suitable for water service and is built to withstand high pressure and temperature. It features a locking lever handle for secure operation.

• Pressure rating of 1000 psi
• Constructed with a stainless steel ball and stem
• Full port design for optimal flow

Product Highlights

This product is ideal for process piping and utility services. With durability and reliability, it is suitable for some chemical applications as well.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 3-Piece

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Pressure Rating: 1000 psi
• Temperature Rating: 400 deg F
• Nominal Size: 2 in
• Orifice Size: 2 in
• Media: Water
• End Style: NPT
• Port Type: Full
• Softgoods Material: PTFE
• Trim Material: 316 Stainless Steel Stem
• Inlet to Outlet Length: 1.97 in
• Top to Inlet Center: 4-1/4 in
• Series: T-595-CS-R-66-LL
• Domestic/Import: Import
