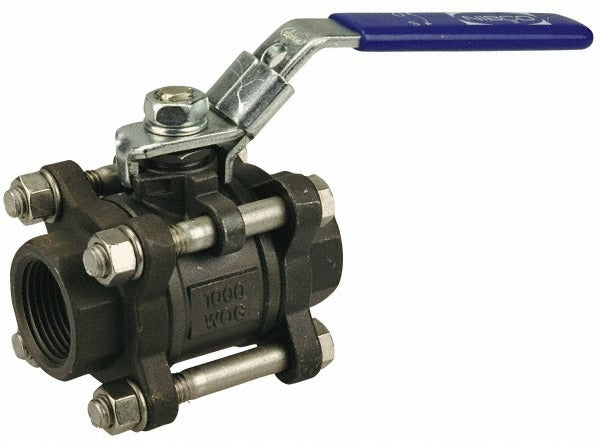

Nibco NL99J45 Ball Valve 3/8 in Full Port 1000 Psi

Product Description

The NIBCO NL99J45 is a 3-piece, full-port manual ball valve rated for 1000 psi working pressure and up to 400 degrees F. The body is carbon steel with stainless steel trim and reinforced PTFE seats and seals. Both end connections are female NPT (FNPT x FNPT), making it compatible with standard threaded pipe installations. A locking lever handle prevents accidental actuation in critical line applications. This valve is suited for industrial and commercial piping systems where high-pressure shutoff and full, unrestricted flow are required. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers.

The NL99J45 is designed for 3/8 inch threaded pipe runs in applications that demand reliable manual isolation at elevated pressures and temperatures. The full-port design ensures minimal pressure drop across the valve, which is important in flow-critical systems such as hydraulic lines, compressed air distribution, or process piping. The locking lever adds an additional layer of control for lockout-tagout procedures in commercial and light industrial environments.

Key Features

• Full-port design delivers unrestricted flow and minimal pressure drop
• 1000 psi maximum working pressure for demanding applications
• Carbon steel body with stainless steel trim for durability and corrosion resistance
• Reinforced PTFE seats and seals rated to 400 degrees F
• FNPT x FNPT end connections for standard threaded pipe assembly
• Locking lever handle supports lockout-tagout compliance
• 3-piece construction allows in-line maintenance without full pipe disassembly

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 3/8 inch FNPT threaded pipe systems requiring full-port flow and high-pressure shutoff capability.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the line completely before removing or installing the valve. Use appropriate thread sealant rated for the service conditions on all FNPT connections. Verify flow direction, pressure rating, and temperature compatibility with the system before returning the line to service.
