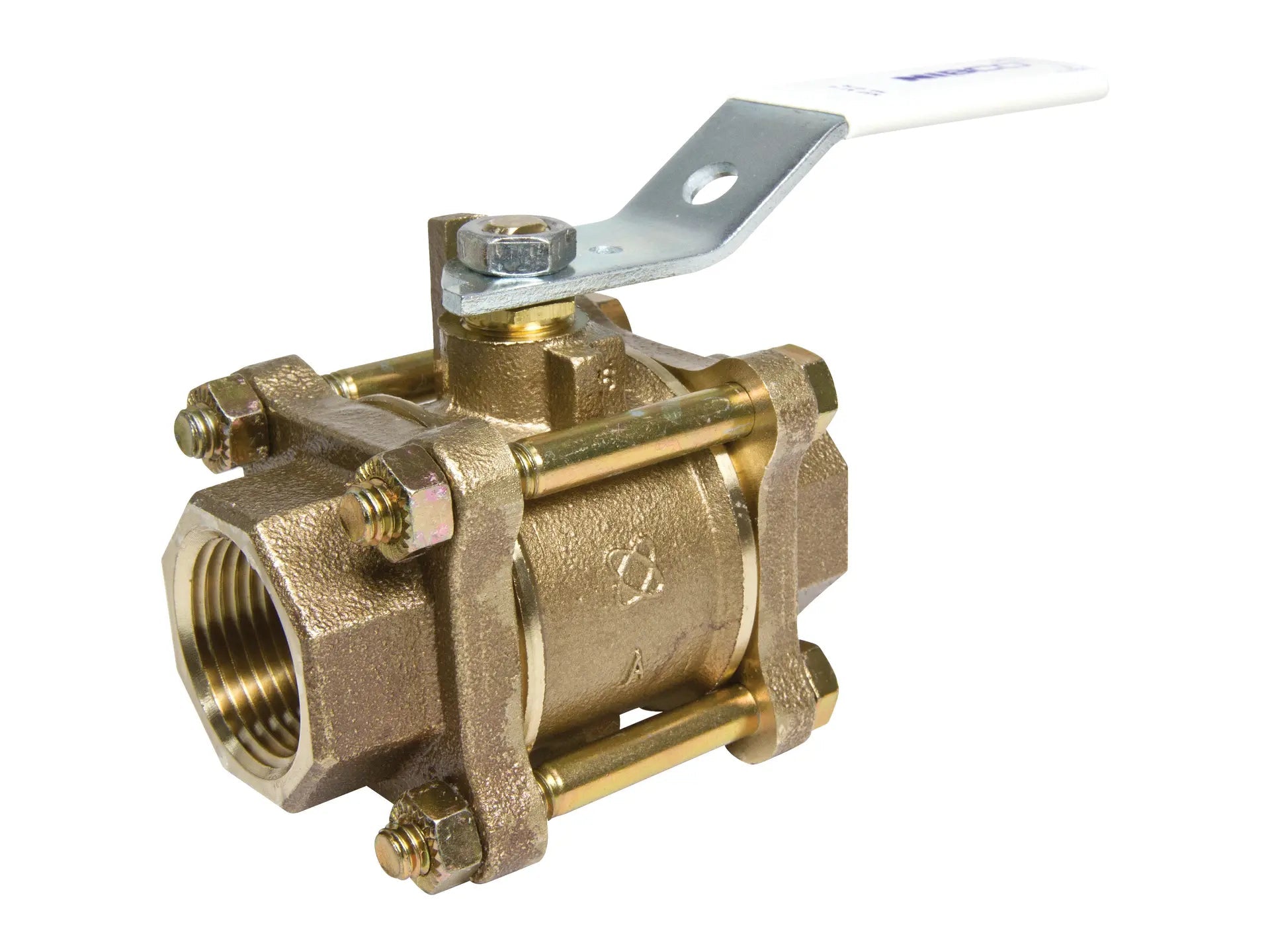

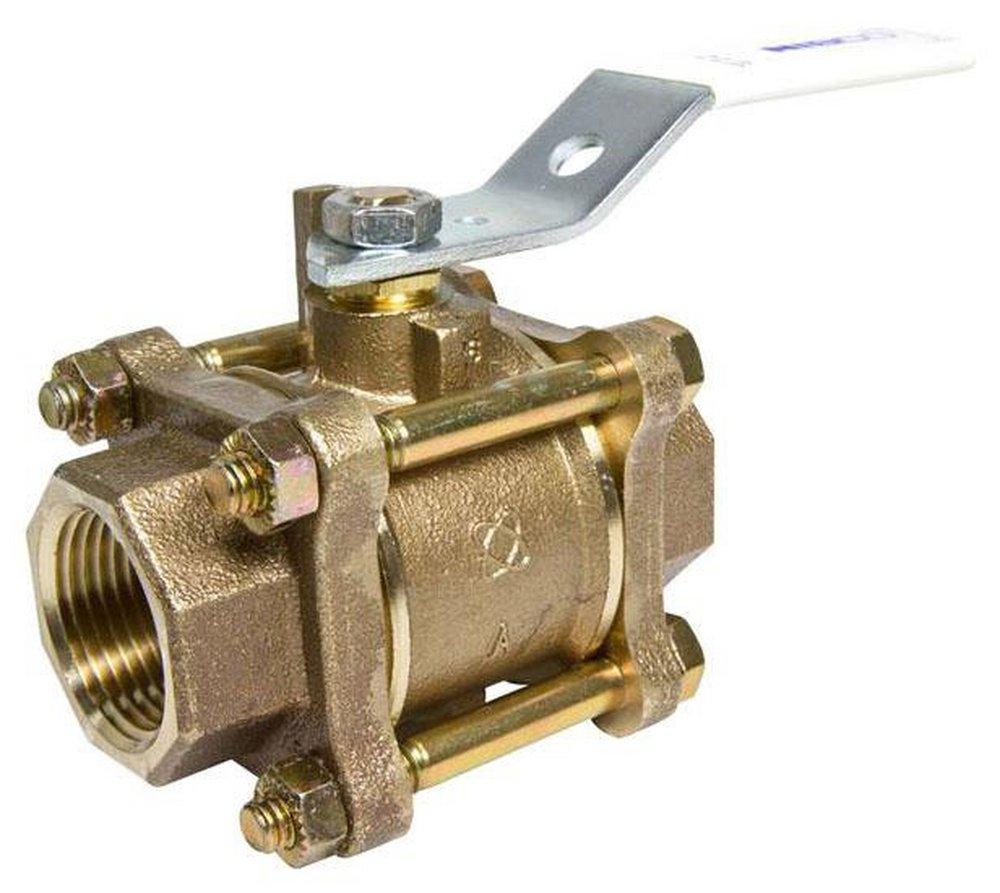

Nibco NL99HXD T-595-Y-66-LF Ball Valve 2 Inch

Product Description

The NIBCO NL99HXD T-595-Y-66-LF ball valve provides ease of operation with quarter-turn (90 degrees) open to close. Constructed of lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free ball valve provides bubble-tight shutoff at 600 PSI.

• Lead-free Silicon Performance Bronze Alloy
• Vented ball with 316SS Trim
• Blowout-Proof Stem

Product Highlights

This three-piece ball valve features threaded ends for easy installation. Recommended for applications that deliver water for human consumption, including commercial and residential construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL99HXD

Technical Specifications

• Type: Ball Valve
• Connection Type: Female NPT Thread (FIPT)
• Ball Material: Stainless Steel
• Valve Size: 2"
• Material: Lead Free Silicon Bronze
• Turns/Operation: Quarter-Turn
• All Special Application: Lead-Free*
• Manufacturer: NIBCO
• Part Number: NL99HXD
• Model: T-595-Y-66-LF
• Application(s): Lead-Free
• System Use: Lead-Free
• Basic Material: Lead-Free Bronze
• Nominal Pipe Size: 2"
• Type of Valve: Ball
• Ball Port Style: Full Port
• Ball Stem Material: Stainless Steel
• Valve End Connection Type: Female NPT Thread (FIPT)
• End Connection: Threaded
• Ball Operator: CS Standard Lever Handle
• Stem Material: Stainless Steel
• Seat Seal Material: PTFE
• Valve Trim Package: Stainless Steel Trim
• Old Material Number: T595Y66LF2
• UPC: 039923320230
• Length: 9.6"
• Width: 6"
• Height: 4"
• Potable Water Code: LL Compliant NSF/ANSI 372
