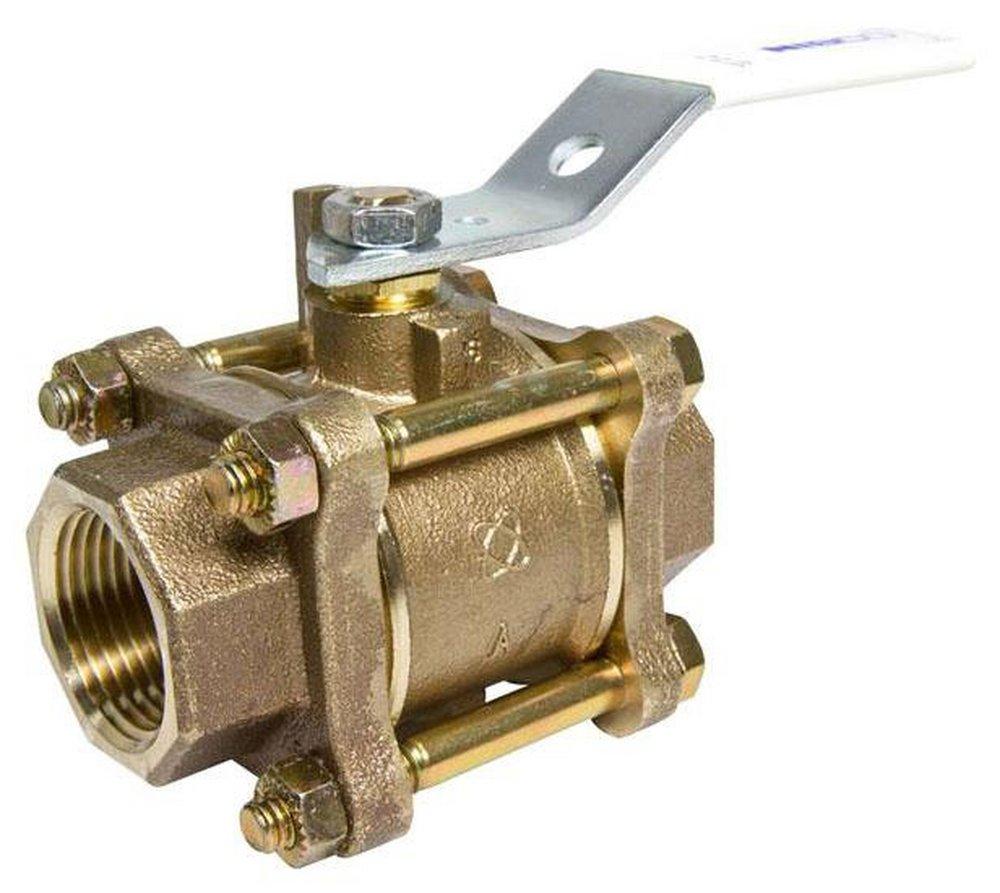

Nibco NL99HX8 T-595-Y-66-LF Ball Valve 3/4 in. DZR Silicon Bronze Full Port NPT 600#

Product Description

The NIBCO NL99HX8 T-595-Y-66-LF ball valve is a 3/4 in. DZR silicon bronze full port NPT 600# ball valve. Constructed of high-quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. It is recommended for applications that deliver water for human consumption, including commercial and residential construction.

• Lead-free
• Silicon Performance Bronze Alloy
• Vented ball
• Full port
• Blowout-proof stem
• 316SS Trim
• Three-Piece Body

Product Highlights

The valve features threaded ends for easy installation and provides bubble-tight shutoff at 600 PSI with quarter-turn (90 degrees) open to close.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL99HX8
• Country of Origin: United States

Technical Specifications

• Features: Standard
• Handle Style: Lever
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Lead Free: Yes
• Valve Construction: 3 piece
• Size: 3/4"
• Port Type: Full Port
• Material: Bronze
• Type: Ball Valve
• Ball Material: Stainless Steel
• Valve Size: 3/4
• Description: T-595Y-66-LF 3/4 THRD FULL PT 3-PC SS TR
• Turns/Operation: Quarter-Turn
• Brand: Nibco
• MPN: NL99HX8
• Country of Origin: United States
• Actuator Type: Standard Lever Operated
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 3 in
• Media: Water
• Nominal Size: 3/4 In
• Orifice Size: 3/4 in
• Pressure Rating: 600 psi
• Series: T-595-Y-66-LF
• Softgoods Material: PTFE/FKM
• Temperature Rating: 300 deg F
• Top to Inlet Center: 2 in
• Trim Material: Stainless Steel Stem
