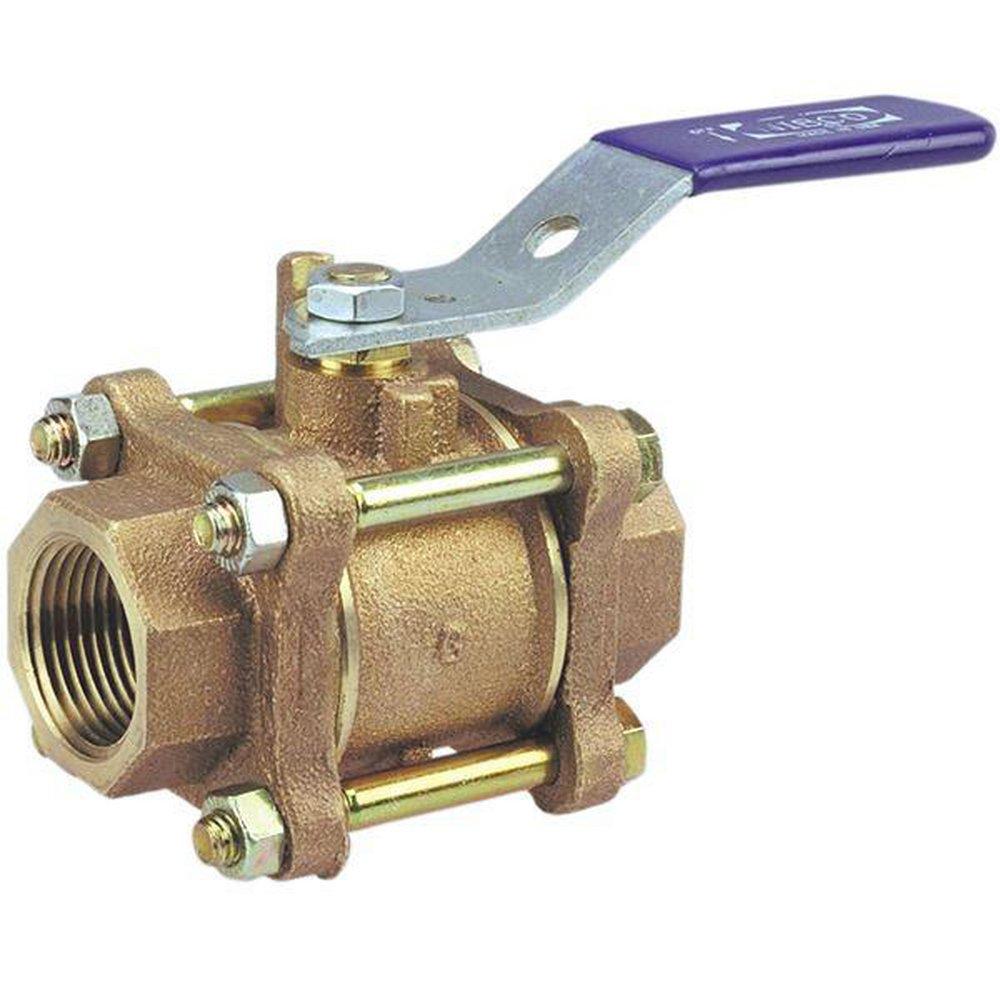

NIBCO NL99H0D T-595-Y-66 2 in. DZR Bronze Full Port NPT 600# Ball Valve

Product Description

NIBCO T-595-Y-66 2 in. DZR Bronze Full Port NPT 600# Ball Valve is designed for reliable operation in high-pressure applications. This valve meets the needs of various fluid control tasks with its robust construction and full port design.

• Full port design for maximum flow
• Constructed with stainless steel ball and stem
• Rated for cold working pressure up to 600 psi

Product Highlights

This ball valve is suitable for air, gas, and water, making it ideal for a wide range of applications. Its durable materials ensure longevity and effective performance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL99H0D

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Stainless Steel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 6.16 inches
• Media: Air/Gas/Water
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-595-Y-66
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Temperature Rating: 400 degrees F
• Top to Inlet Center: 3.63 inches
• Trim Material: Stainless Steel Stem
• Type: 3-Piece
• Manufacturer: NIBCO INC
