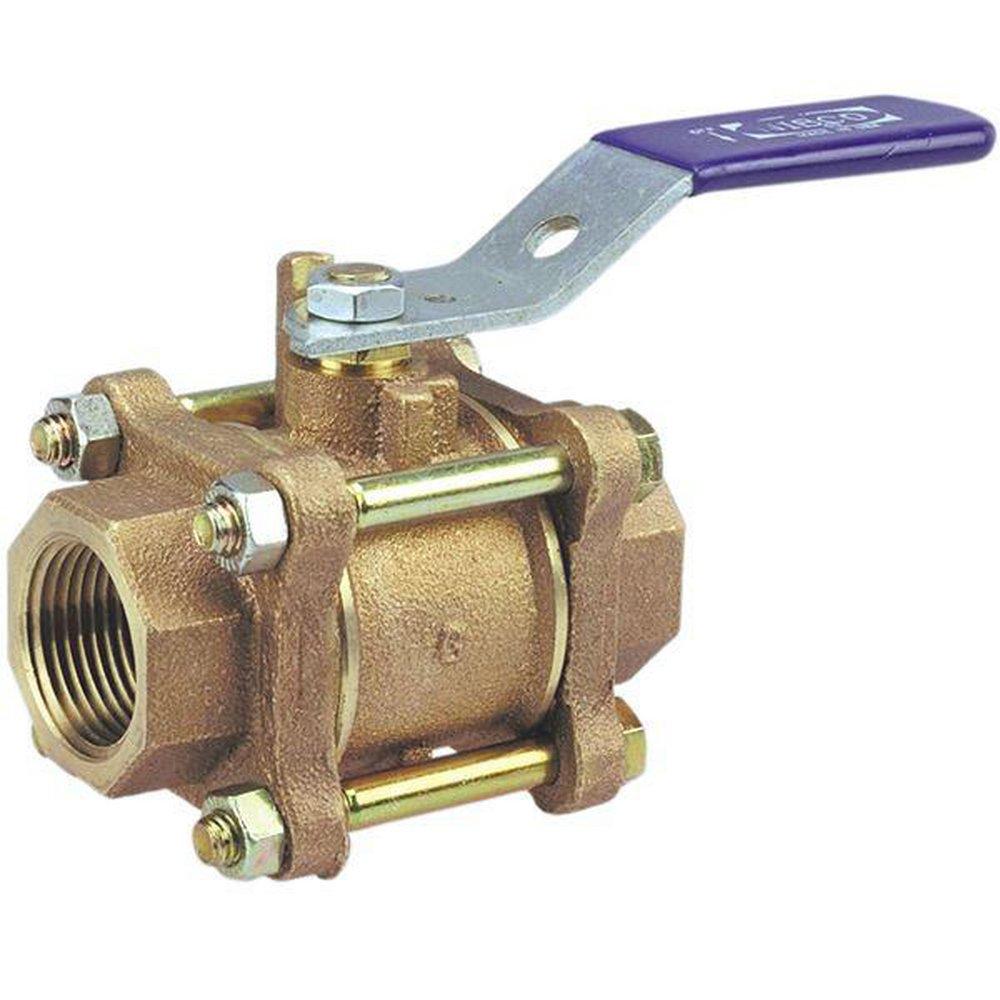

NIBCO NL99H06 T-595-Y-66 1/2 in. DZR Bronze Full Port NPT 600# Ball Valve

Product Description

The NIBCO NL99H06 T-595-Y-66 is a half-inch DZR bronze full port NPT ball valve designed for various applications, including air, gas, and water. It features a stainless steel ball and stem with a pressure rating of 600 psi. This valve meets the requirements for numerous industrial uses.

• Full port design for better flow.
• Operates at a maximum temperature of 400 degrees Fahrenheit.
• Constructed for durability with a blowout-proof stem.

Product Highlights

The NIBCO T-595-Y-66 ball valve offers reliable performance with a standard lever handle for easy operation. It is suitable for both hot and cold water applications as well as compressed air systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL99H06

Technical Specifications

• Type: 3-Piece
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Body Material: Bronze
• Ball Material: Stainless Steel
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Inlet to Outlet Length: 2-1/2 in
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Standard Lever Handle: Yes
• End Style: FNPT
• Media: Air/Gas/Water
