NIBCO NL99E4C K595CSR66LL 1-1/2 SW BALL 3PC LKG LEV CS

Product Description

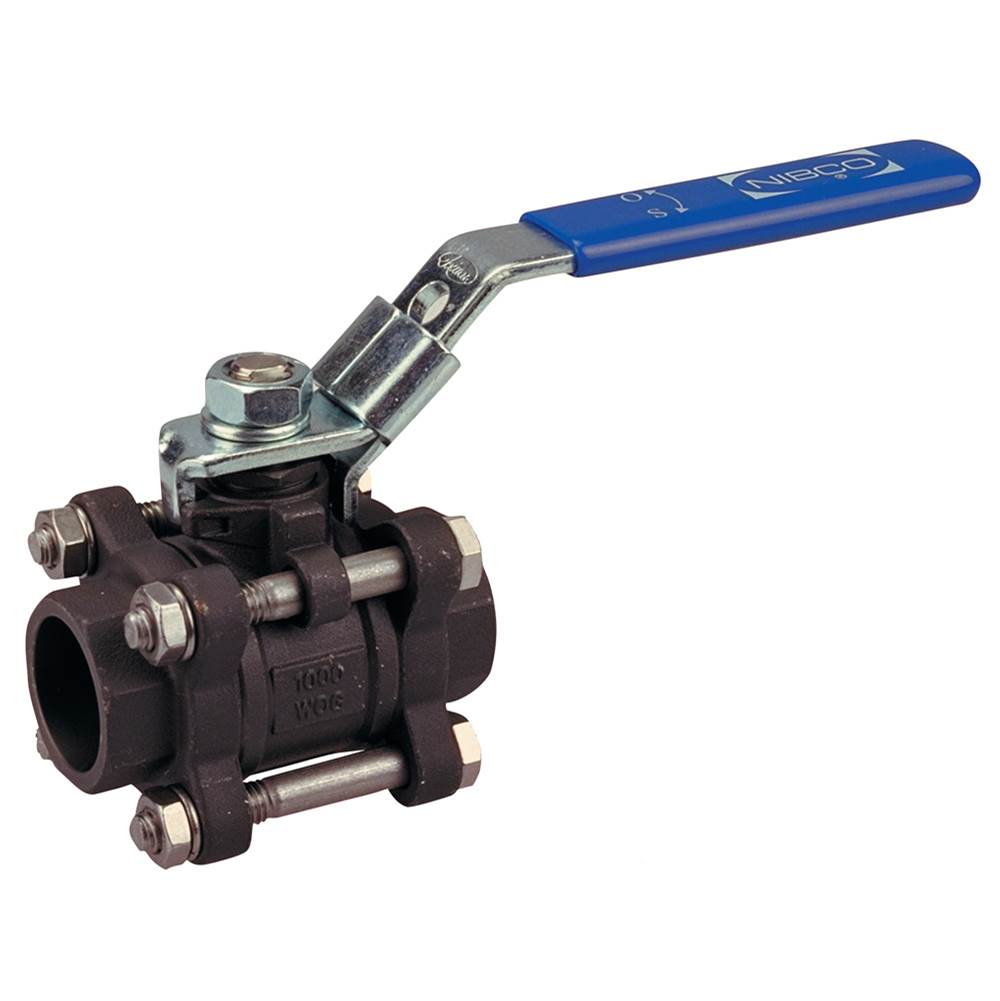

NIBCO Ball Valve, MPN NL99E4C, is a three-piece valve designed for socket welding applications. It has a nominal size of one and a half inches and can handle pressures of up to one thousand psi. This valve is ideal for water media, featuring a locking lever handle for secure operation and constructed from durable materials.

• Pressure rating of one thousand psi
• Stainless steel ball and stem for reliability
• Vented ball design enhances safety

Product Highlights

This valve is suitable for process piping, utility services, and some chemical applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 3-Piece

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• End Style: Socket Welded
• Inlet to Outlet Length: 4.72 inches
• Media: Water
• Nominal Size: 1-1/2 inches
• Orifice Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: K-595-CS-R-66-LL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees F
• Trim Material: 316 Stainless Steel Stem
