NIBCO NL99E4A K595CSR66LL 1 SW 3PC LKG LEV CS

Product Description

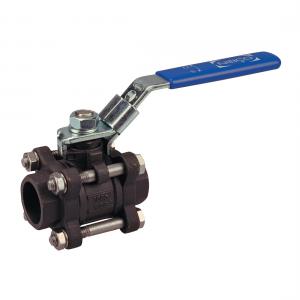

The NIBCO NL99E4A is a 3-piece ball valve ideal for various applications, including process piping and utility service. Designed with a nominal size of one inch, this valve features a socket weld end style for secure installation. It operates at a pressure rating of one thousand psi and can handle media such as water at temperatures up to four hundred degrees Fahrenheit.

• Constructed with stainless steel ball and stem
• Blowout-proof stem design for safety
• Locking lever handle actuator for easy control

Product Highlights

This valve is suitable for many chemical applications, providing reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Manufacturing Series: K-595-CS-R-66-LL

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Domestic/Import: Import
• End Style: Socket Welded
• Inlet to Outlet Length: 3.62 in
• Media: Water
• Nominal Size: 1 in
• Orifice Size: 1 in
• Port Type: Full
• Pressure Rating: 1000 psi
• Softgoods Material: PTFE
• Temperature Rating: 400 deg F
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
