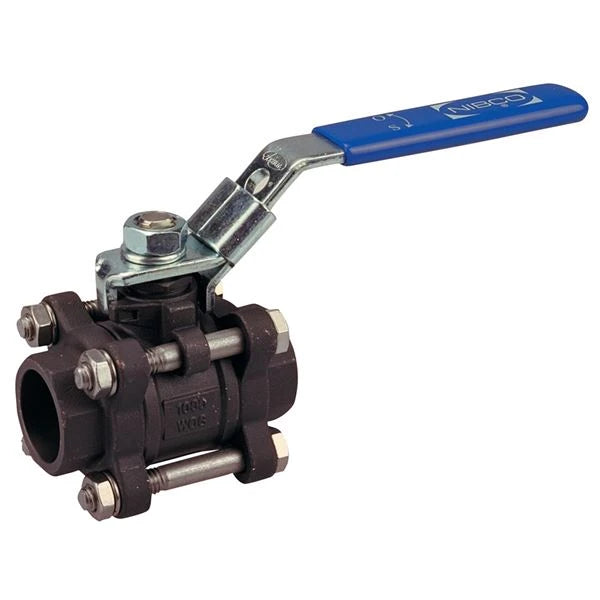

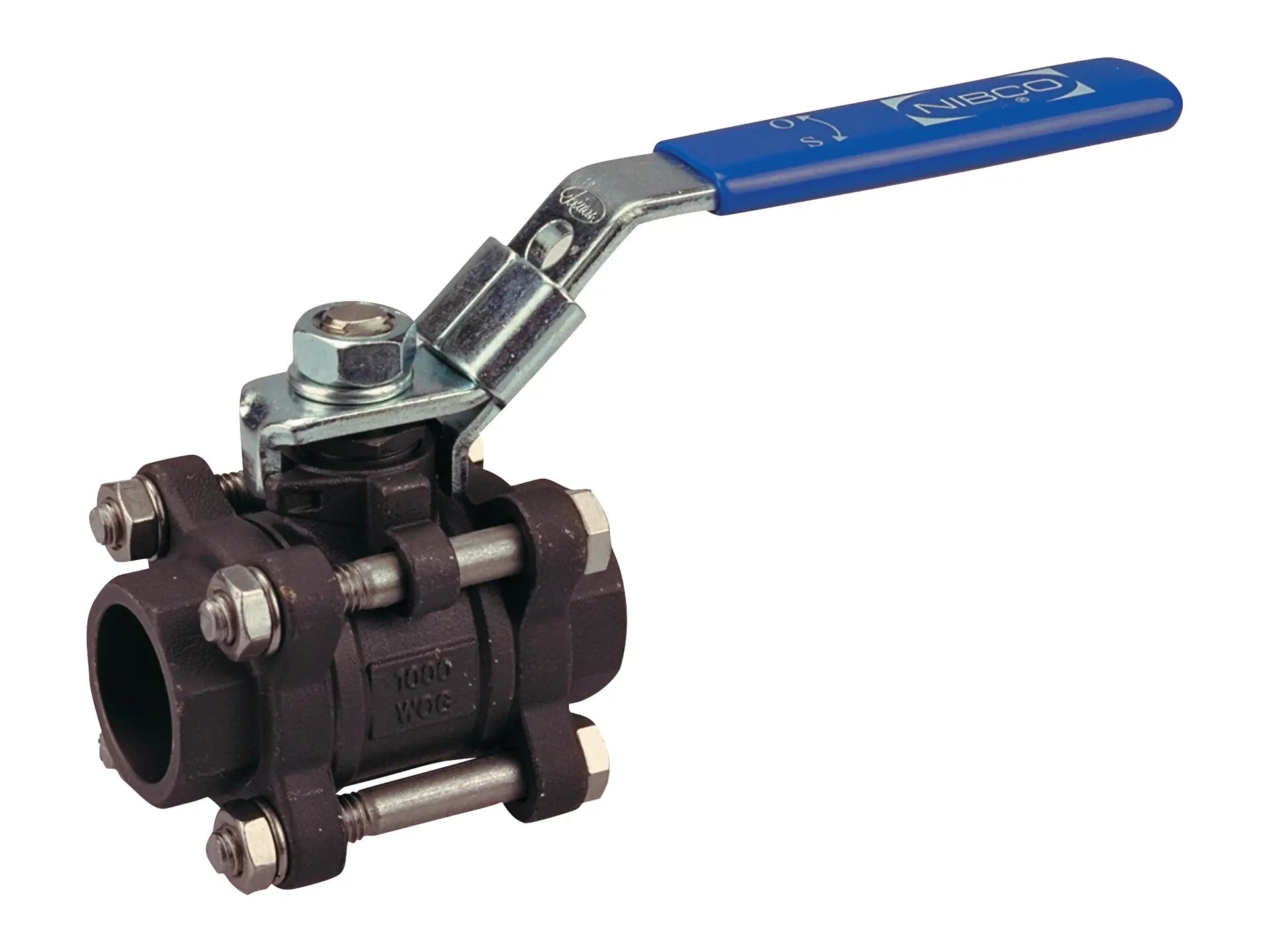

Nibco NL99E46 K-595-CS-R-66-LL Ball Valve 1/2 inches Socket Weld

Product Description

The NIBCO NL99E46 carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. Features a reinforced PTFE seat ring and stainless steel ball/stem that exhibit high chemical resistance properties. Recommended for process piping and may be used on hot/cold water, HVAC, and some chemical and utility service applications.

• Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
• Maximum temperature rating 400°F
• Full port

Product Highlights

Three-piece, full port carbon steel ball valve with blowout-proof stem, stainless steel ball and stem, vented ball, and locking lever handle.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL99E46
• Country of Origin: TW

Technical Specifications

• UPC Code: 039923793430
• Type: 3-Piece, Full-Port
• Valve Size: 1/2
• Connection Type: Socket Weld
• Material: Carbon Steel
• Ball Material: Stainless Steel
• Stem Material: Stainless Steel
• Valve Operator: CS Locking Lever Handle
• Turns/Operation: Quarter-Turn
• Weight: 1.23 lb
• Manufacturer: NIBCO
• Part Number: NL99E46
• Model: K-595-CS-R-66-LL
• Cold Working Pressure: 1000 psi
• Maximum Temperature: 400°F
• Port Style: Full
• Stem Design: Blowout-Proof
• Handle Style: Locking Lever
• Valve Ball Body Type: Three-Piece
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 5.45"
• Width: 3.54"
• Height: 2.32"
• Body Material: Carbon Steel
• Gland Material: Carbon Steel Packing
• Handle Material: Carbon Steel
• Industry Standards: MSS-SP-110 Compliant
• Item Name: Ball Valve
• Lead Free: No
• Material Standard: Body: ASTM A216 Grade WCB, Ball: ASTM A276/A351 Grade CF8M, Stem: ASTM A276, Gland: ASTM A108 Type 1045
• Nominal Size: 1/2 IN
• Operator Type: Locking Lever Handle
• Other Physical Dimension: 2.38 IN Inlet Center To Top Of Handle, 4.17 IN Handle Length
• Packing Material: Carbon Filled PTFE Stem
• Pressure Rating: 1000 PSI (CWP) Non-Shock
• Seal Material: Reinforced PTFE
• Seat Material: Reinforced PTFE
• Series/Model: Model K-595-CS-R-66-LL
• Trim Material: 316 Stainless Steel Trim And Ball
• Connection Size: 1/2"
