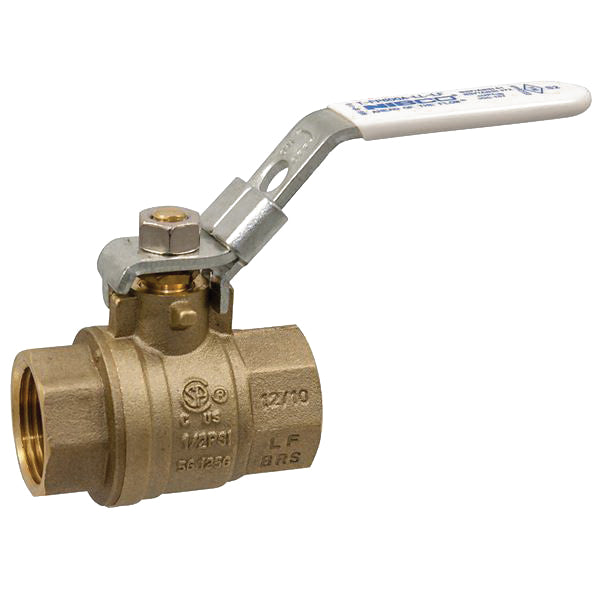

Nibco NL998XL6 TFP600A-LF-LL Brass 2-Piece Full-Port Ball Valve 1/2 in Replacement NL998XL6

Product Description

NIBCO NL998XL6 is a brass ball valve designed for gas and water applications. This two-piece valve features a full port and has a locking lever handle for secure operation. It is certified lead-free and provides a reliable solution for plumbing needs.

• Lead-free copper alloy construction
• Quarter-turn operation for easy use
• Threaded FNPT connections for simple installation

Product Highlights

This valve is ideal for both hot and cold water as well as gas services. The valve’s construction includes PTFE seats and polished chrome brass ball for enhanced durability. It is backed by a two-year limited warranty.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Product Name: TFP600A-LF-LL 1/2 in

Technical Specifications

• Type: 2-Piece, Full-Port
• Media: Gas/Water
• Nominal Size: 1/2 in
• Pressure Rating: 600 psi
• Actuator Type: Locking Lever Handle
• Ball Material: Chrome-Plated Brass
• Body Material: Brass
• Orifice Size: 0.56 in
• Inlet to Outlet Length: 2.02 in
• Top to Inlet Center: 3.54 in
• Standards/Certifications: ANSI/NSF 61-8 and 372 certified
