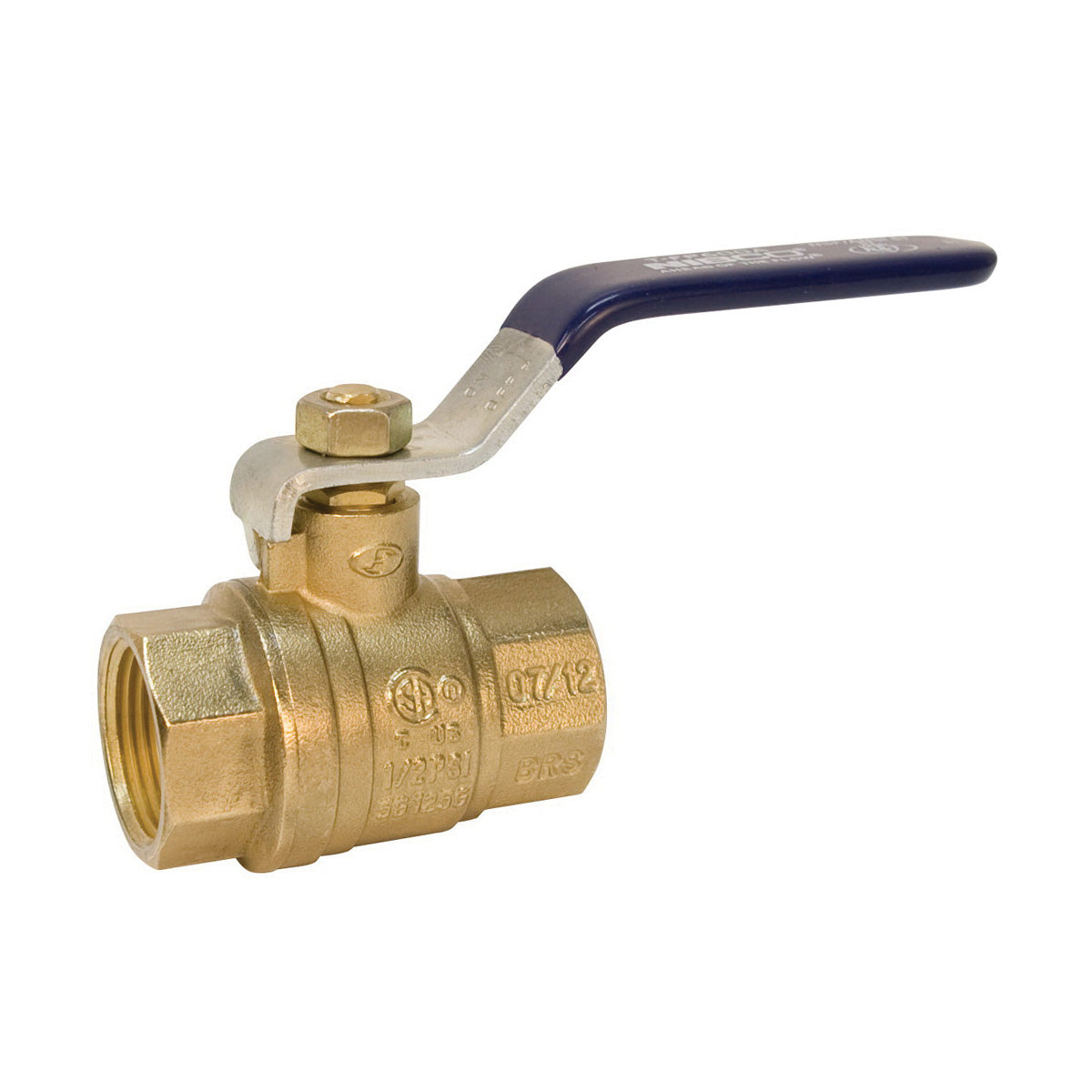

NIBCO NL998HH 2-Piece Ball Valve 4 in FNPT Full Port

Product Description

The NIBCO brass ball valve, model NL998HH, features threaded end connections and provides bubble-tight shut-off. It utilizes PTFE seats and a hard chrome-plated brass ball, making it suitable for hot and cold water as well as gas applications. This 2-piece ball valve provides easy operation with a quarter-turn from open to close. The threaded end connections enhance installation convenience. Refer to NIBCO technical data sheets for installation guidelines.

• 2-piece ball valve with brass body
• Standard lever actuator
• Full port design for efficient flow

Product Highlights

The NIBCO NL998HH ball valve is a staple in both commercial and residential settings due to its reliability and ease of use.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Model Number: NL998HH

Technical Specifications

• Type: 2-Piece
• Series: T-FP-600A
• Nominal Size: 4 in
• End Style: FNPT
• Orifice Size: 3.89 in
• Pressure Rating: 400 psi
• Ball Material: Brass
• Body Material: Brass
• Trim Material: Brass Stem and PTFE Ball Seat
• Softgoods Material: Fluorocarbon
• Inlet to Outlet Length: 7.39 in
• Top to Inlet Center: 5.87 in
