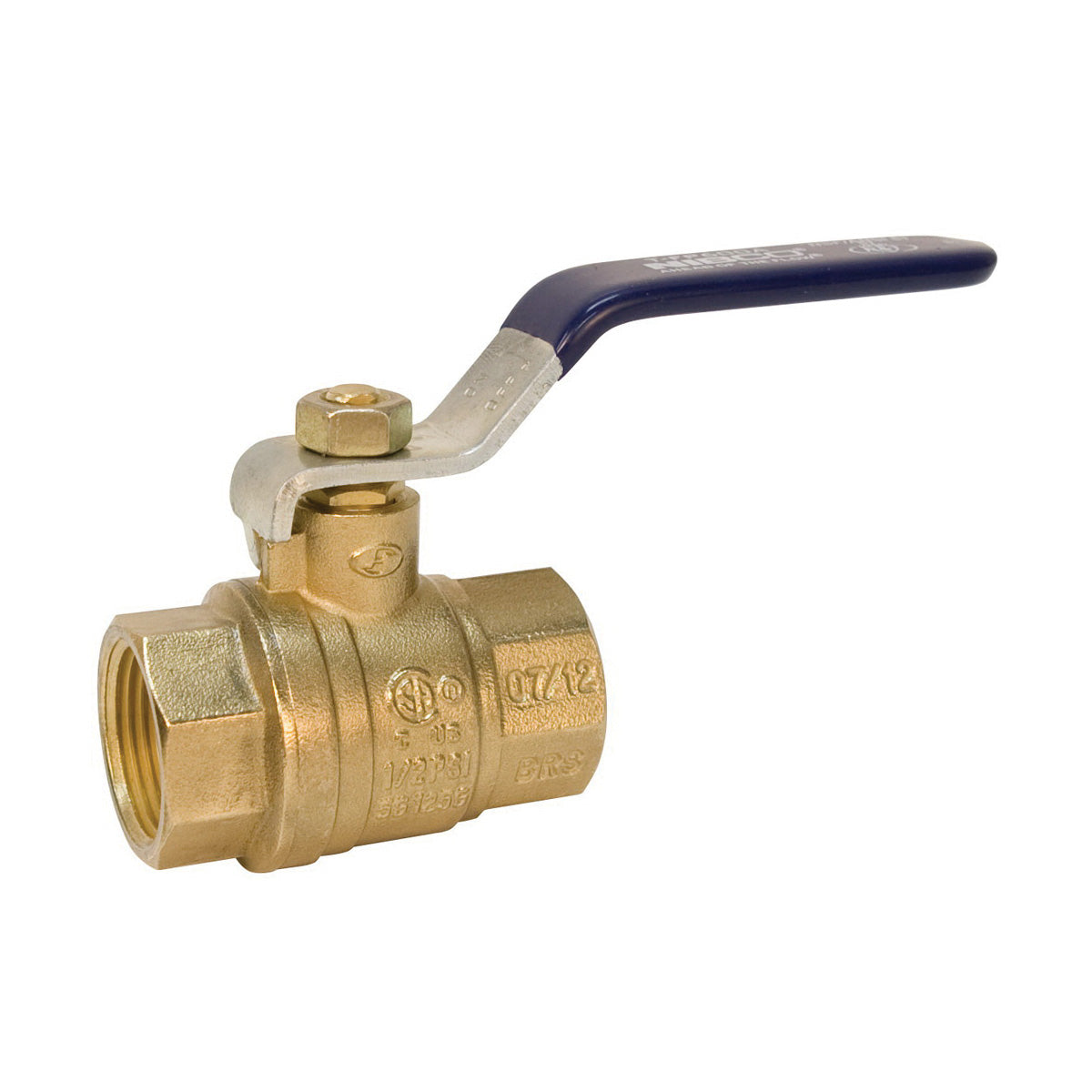

NIBCO NL998HA 2-Piece Ball Valve 1 in FNPT Full Port

Product Description

The NIBCO NL998HA is a 2-piece ball valve designed with a brass body and FNPT end style. This valve is made for high performance in hot and cold water applications as well as gas. It provides a bubble-tight shutoff and features PTFE seats for high chemical resistance. The quarter-turn operation offers a simple and fast open to close mechanism. Its design includes threaded end connections for straightforward installation.

• Designed for hot/cold water and gas applications
• Features a 600 psi pressure rating
• Includes a two-year limited warranty

Product Highlights

The NL998HA is ideal for both residential and commercial use. It meets various industry standards and is recognized for its reliability.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL998HA

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.76 in
• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-FP-600A
• Softgoods Material: Fluorocarbon
• Top to Inlet Center: 2.56 in
• Trim Material: Brass Stem and PTFE Ball Seat
• Type: 2-Piece
