NIBCO NL9950C T595Y 1 1/2 3PC THRD BALL FULL PT BRZ

Product Description

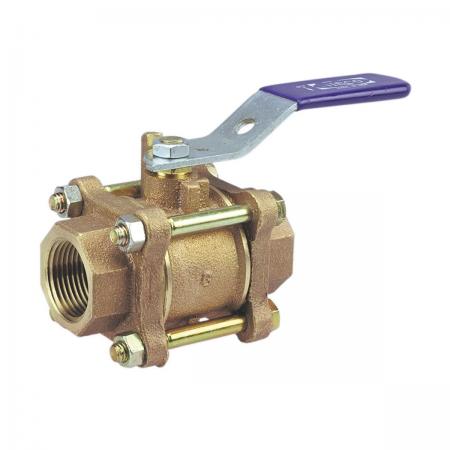

The NIBCO NL9950C is a three-piece ball valve designed for reliable performance. This valve has a nominal size of one and one-half inches and features female national pipe threads for easy installation. It can handle pressure ratings up to six hundred psi and operates effectively at temperatures reaching four hundred degrees Fahrenheit.

• Bubble-tight shutoff capability
• Compatible with air, gas, and water
• Repairable in-line for maintenance

Product Highlights

The NIBCO NL9950C ball valve is suitable for a variety of applications, including hot and cold water and gas services. Its robust design and construction ensure durability and longevity in the field.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: T-595-Y

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Inlet to Outlet Length: 4.56 inches
• Top to Inlet Center: 2.97 inches
• Nominal Size: 1-1/2 inches
