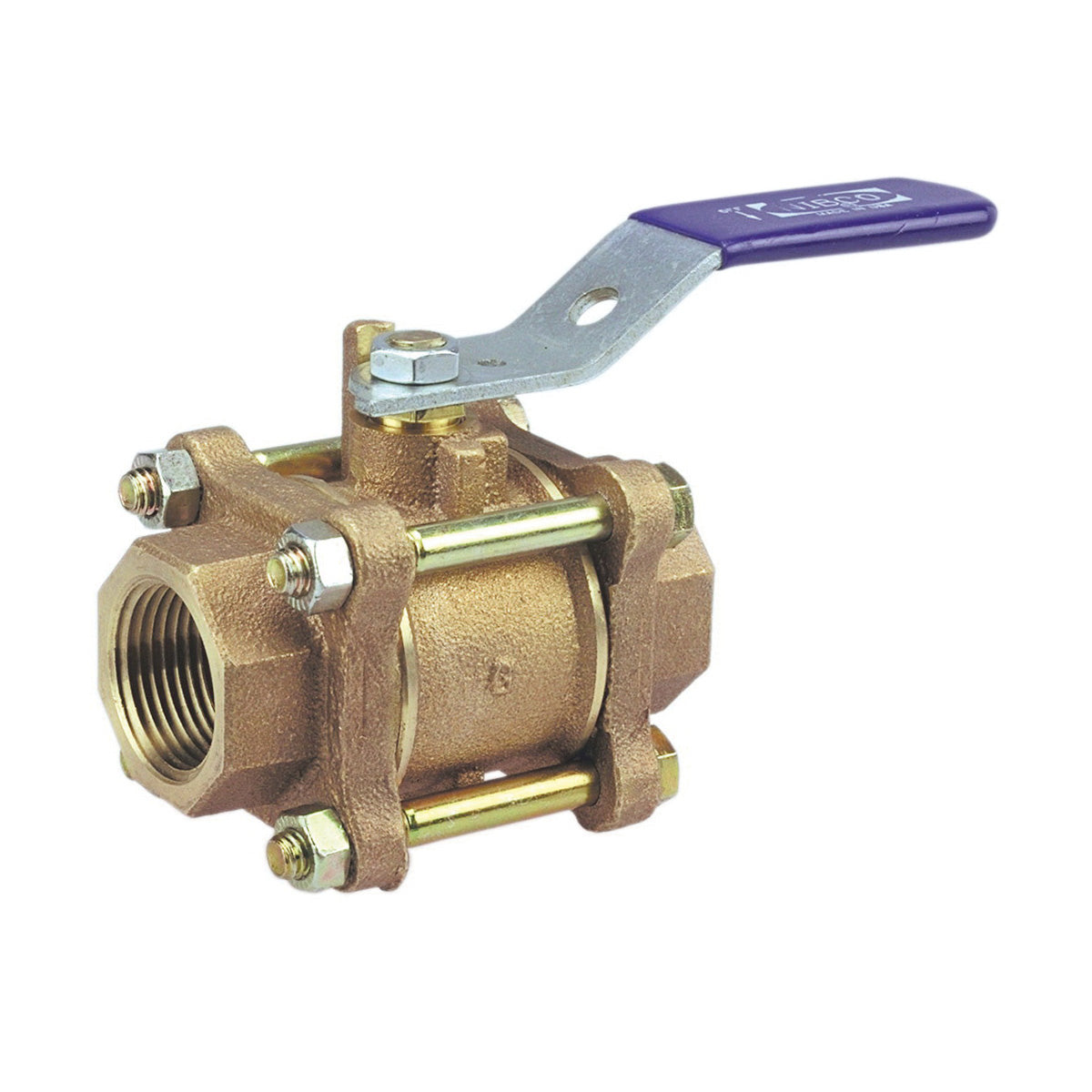

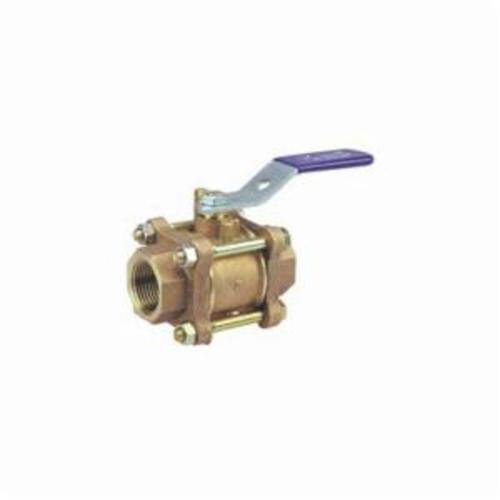

NIBCO NL9950B 3-Piece Ball Valve 600 psi 1-1/4 in FNPT

Product Description

The NIBCO NL9950B is a 3-piece ball valve that offers reliable bubble-tight shut-off at 600 psi. This valve is suitable for various fluid applications, including hot and cold water, gas applications, and compressed air. It is designed for ease of use with a quarter-turn operation. The valve features a PTFE seat ring and a chrome-plated brass ball that provides high chemical resistance, making it ideal for high-pressure situations.

• 3-Piece design allows for in-line repair
• Threaded ends simplify installation
• Options for NIB-SEAL insulated handle to prevent condensate

Product Highlights

This ball valve is a preferred choice for commercial and industrial applications, combining functionality with durability. The NIBCO NL9950B is backed by a 5-year limited warranty, ensuring peace of mind with every installation.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• UPC: 039923686589

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• End Style: FNPT
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 4.09 in
• Softgoods Material: PTFE/Fluorocarbon Rubber
• Trim Material: Silicon Bronze Stem
