Product Description

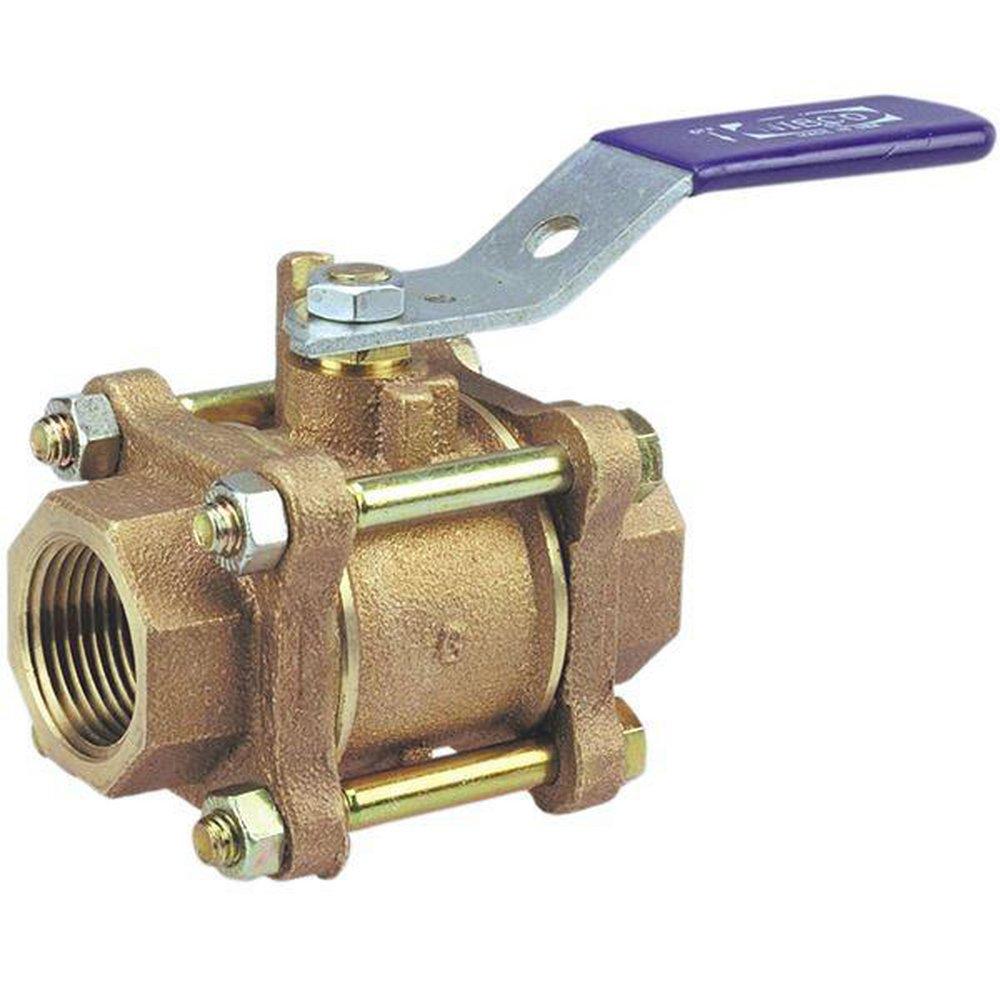

The NIBCO NL99508 is a three-piece bronze ball valve designed for use in various applications, including air, gas, and water. It features a full port design that minimizes pressure loss and enhances flow efficiency. The valve accommodates a pressure rating of six hundred psi and a maximum temperature of four hundred degrees Fahrenheit. This valve is ideal for hot and cold water applications, as well as for numerous gas uses and compressed air services. Its threaded end connections ensure straightforward installation and maintenance.
- Full port design for improved flow.
- Compatible with various media: air, gas, water.
- Pressure rating of 600 psi non-shock cold working pressure.
Product Highlights
The NIBCO NL99508 valve combines durability with ease of use, backed by a five-year limited warranty. It is suitable for industrial and commercial applications.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
Type: 3-Piece, Full-Port
Technical Specifications
-
Pressure Rating: 600 psi
-
Temperature Rating: 400 degrees Fahrenheit
-
Nominal Size: 3/4 inch
-
Orifice Size: 3/4 inch
-
Ball Material: Chrome Plated Brass
-
Body Material: Bronze
-
End Style: FNPT
-
Inlet to Outlet Length: 3 inches
-
Softgoods Material: PTFE/Fluorocarbon Rubber
